Laser safety goggles and enclosure are the two vital accessories to prevent damage from laser beams, while in this blog, we talk about F Theta Lenses, a laser engraver accessory which makes the laser beam perfect for laser engraving. We walk through from:
- What is an F Theta Lens
- What is the lens used for
- Common types for desktop laser engraver
- How to choose the right one
- Where to Buy F Theta Lenses
- How to Install an F Theta Lens
- FAQs

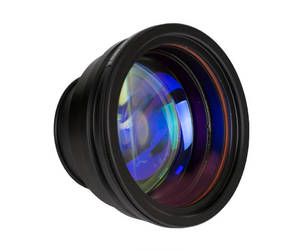

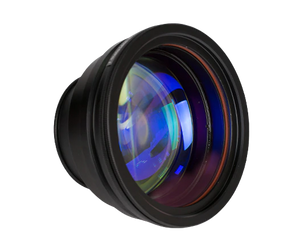

What Is an F Theta Lens
The F Theta Lens—also known as a field lens or flat-field focusing lens—is a key optical component in laser marking systems. The name "F Theta Lens" originates from its optical design principle. "F" stands for the focal length, while "Theta" (θ) represents the scanning angle of the laser beam. Its role is to project the laser beam, deflected by the galvo scanner, onto the work surface at specific angles, and through its optical design, compensate for distortion to ensure that the laser beam stays focused on a perfectly flat plane throughout the scanning area.
What is the lens used for
The galvo scanner can only control the angular movement of the beam (X and Y axes), but not the focal position. Without an F Theta Lens, the laser focus would shift toward the edges of the marking field, resulting in blurry or distorted graphics and uneven energy. By introducing a specially designed non-linear lens group, the F Theta Lens corrects for this angular distortion. This ensures that the laser spot remains accurately focused across the entire working area, maintaining graphic proportions and consistent sharpness.
Common types for desktop laser engraver
Among desktop fiber laser marking machines, the most commonly used F Theta Lens models are F160, F254, and F330. The key differences among them lie in focal length, focusing precision, and marking area coverage.
Higher detail calls for shorter focal lengths, while large areas benefit from longer ones (but at a slight cost to sharpness).
Quick Comparison:
| Model | Focal Length (mm) | Typical Marking Area (mm²) | Relative Spot Size | Focusing Capability | Recommended Applications |
|---|---|---|---|---|---|
| F160 | 160 | 110×110 | Smallest | Strongest | Micro graphics, QR codes |
| F254 | 254 | 175×175 | Medium | Balanced | General marking tasks |
| F330 | 330 | 220×220 | Largest | Slightly weaker | Large area & batch marking |
F160 Lens: High-Precision, Small-Area Marking
The F160 has a focal length of 160mm, providing a marking area of approximately 110×110mm. It produces a small laser spot and concentrated energy, making it ideal for applications that require high detail—such as QR codes, micro logos, and chip serialization. However, its limited field of view makes it less suitable for large workpieces or batch marking.
F254 Lens: Balanced, All-Purpose Configuration
The F254 comes with a 254mm focal length and a marking field of about 175×175mm. It strikes a great balance between spot precision and working area, which is why it’s the default choice for most desktop laser systems. It’s suitable for general-purpose applications such as metal nameplates, industrial ID tags, and plastic enclosures.
F330 Lens: Large-Area Marking
The F330 has a 330mm focal length and offers a larger marking area of around 220×220mm. It’s well-suited for applications that require broad coverage—such as control panel enclosures, long-format tags, or simultaneous marking of multiple components. Although the laser spot is larger and focus precision is slightly reduced, its efficiency and scalability are undeniable.
How to Choose the Right F Theta Lens
Choosing an F Theta Lens isn’t just about picking the longest focal length or the largest area. Instead, it’s about finding the right balance between marking field size and marking precision based on your specific application needs.
If your work involves fine details like QR codes, small logos, or serial numbers, the F160’s smaller spot size will serve you best. For general-purpose jobs that balance precision and area, the F254 is the most practical choice. And if you need to mark large areas or multiple parts at once, the F330 will provide the coverage you need.
Take a 20W desktop fiber laser engraver as an example:
Let’s say you're using a 20W fiber laser marking machine and want to engrave aluminum nameplates with QR codes and logos. Most of your tags are around 100×80mm, and you’re looking to increase batch productivity.
While the F160 offers the sharpest QR code markings, its 110×110mm field may not fit multiple tags at once. The F330, though wide, may compromise precision. That’s why the F254 is the optimal choice here—it gives you a 175×175mm field that’s large enough for batch jobs while maintaining the clarity needed for small codes.
Where to Buy F Theta Lenses
Frankly speaking, each laser engraver supplier also has field lens on sale, which is totally designed for their own laser engraving machine. That doesn't mean that you can not buy such lens from somewhere else.
There are many F Theta Lenses available on the market, but when it comes to performance, compatibility, and support, the following brands are well-recognized and widely used in the laser industry:
Edmund Optics: Their JENar™ F-Theta series supports multiple wavelengths and is available in standard interface formats suitable for desktop industrial fiber lasers.
Sill Optics: German-built with select models made specifically for compact laser systems, offering focal lengths from 160mm to 330mm with detailed spec sheets.
Scanner Optics: Specializes in lenses for compact galvo systems, offering beginner-friendly and OEM-integrated F Theta Lenses with standard threads.
How to Install an F Theta Lens
Check the Thread Size
Most lenses use M85×1.0 or M110×1.5 threads. Make sure the lens mount matches your laser head. If not, use a proper thread adapter.
Screw in the Lens Smoothly
Thread the lens into the laser head vertically and tighten clockwise. Avoid forced installation, which could strip the threads.
Mind the Orientation
Many lenses have markings for "IN" (input) or "OUT" (output). Install with the correct orientation—reversed installation can distort your beam path.
Adjust Focal Height (Z-Axis)
Different lenses require different focal distances. For example, F254 sits about 9cm higher than F160. Adjust your table or laser head accordingly.
Update Software Settings
In your laser software (e.g., EzCad), adjust the field size and lens parameters to match your new lens. This prevents image distortion or over-scan.
Run a Marking Test
After installation, do a grid or square test pattern to check focus consistency and image accuracy across the field.
F Theta Lens FAQs
Q: Why is my marking blurry after installing a new lens?
A: You likely didn’t adjust the Z-height to match the new focal length. Your laser is out of focus.
Q: Why do my edges look fuzzy while the center is sharp?
A: Either the software hasn’t been updated for the new field size, or the lens isn’t aligned with the beam path.
Q: What settings need to be adjusted after changing lenses?
A: Update focal height, field size in software, and scan parameters.
Q: Can I clean the lens myself?
A: Yes, but only with optical lens paper and high-purity isopropyl alcohol. Never use fingers or tissues.
Q: How long does an F Theta Lens last?
A: Typically 2–5 years depending on usage conditions. Dusty or high-power environments will shorten its lifespan.
