Regular price $3,999.00
Sale price $3,999.00 Regular price $5,999.00
Shop Now

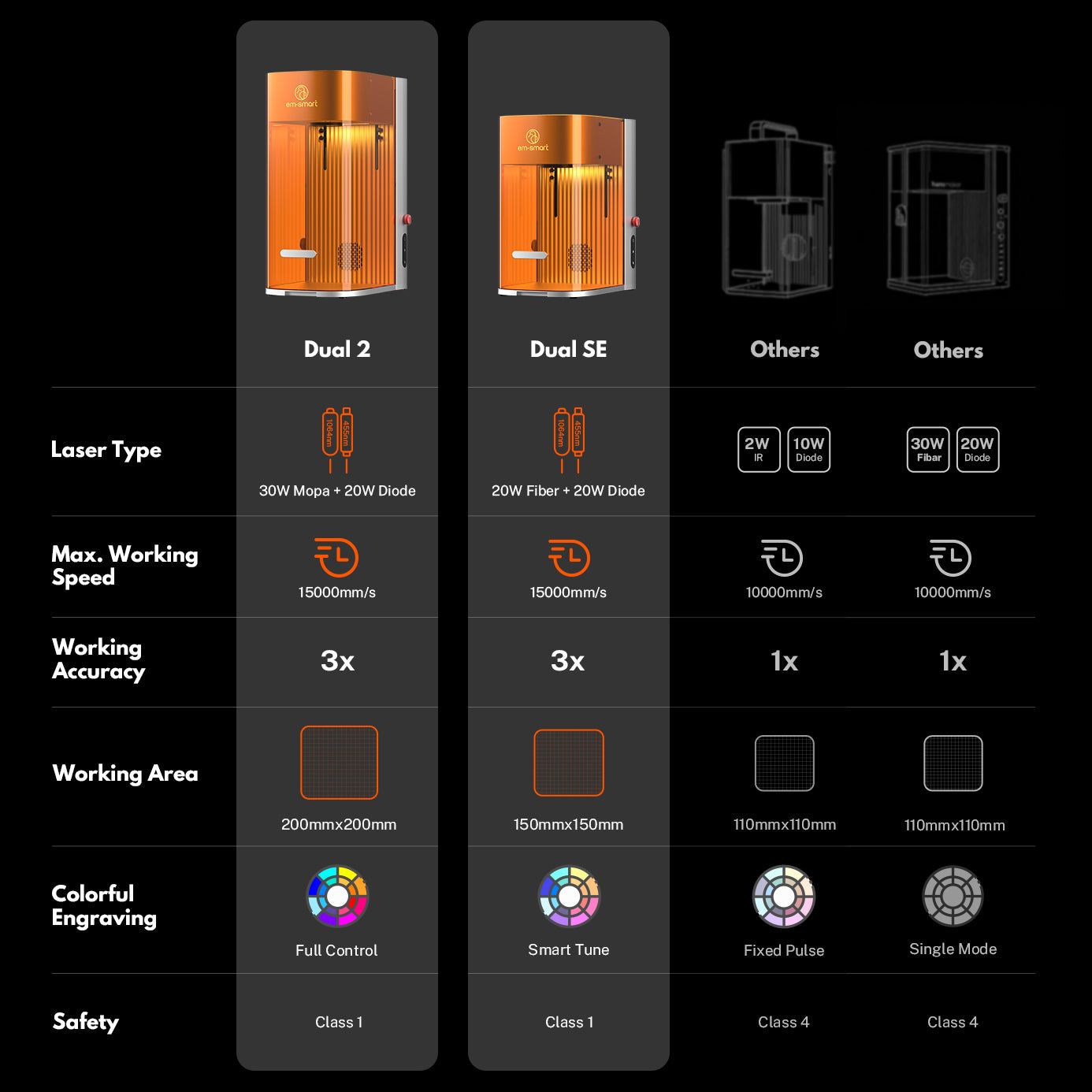

Dual 2 Highlights

Why the Media Trusts EM-Smart?

EM-Smart Laser Marker Technical Specifications

Specifications

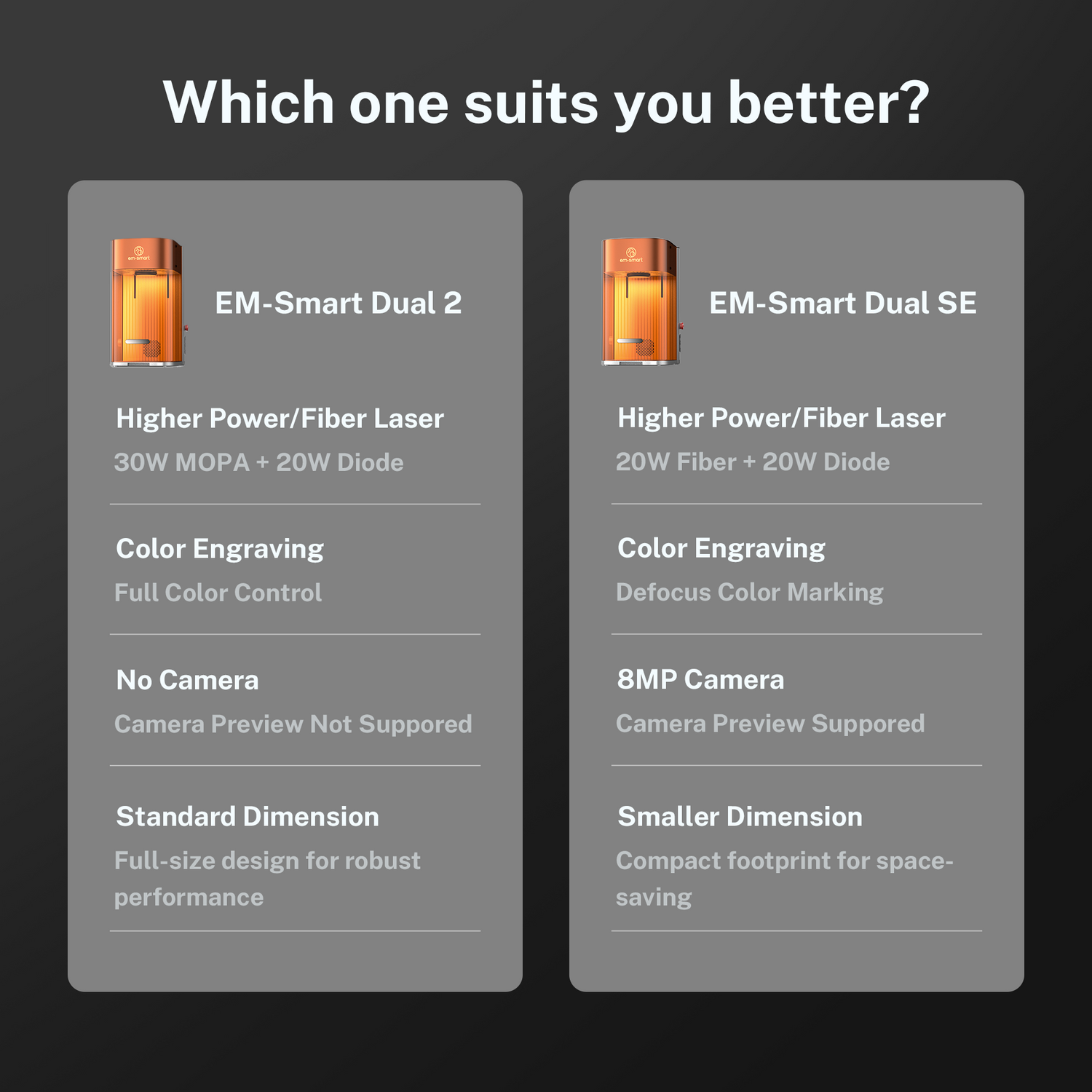

Models

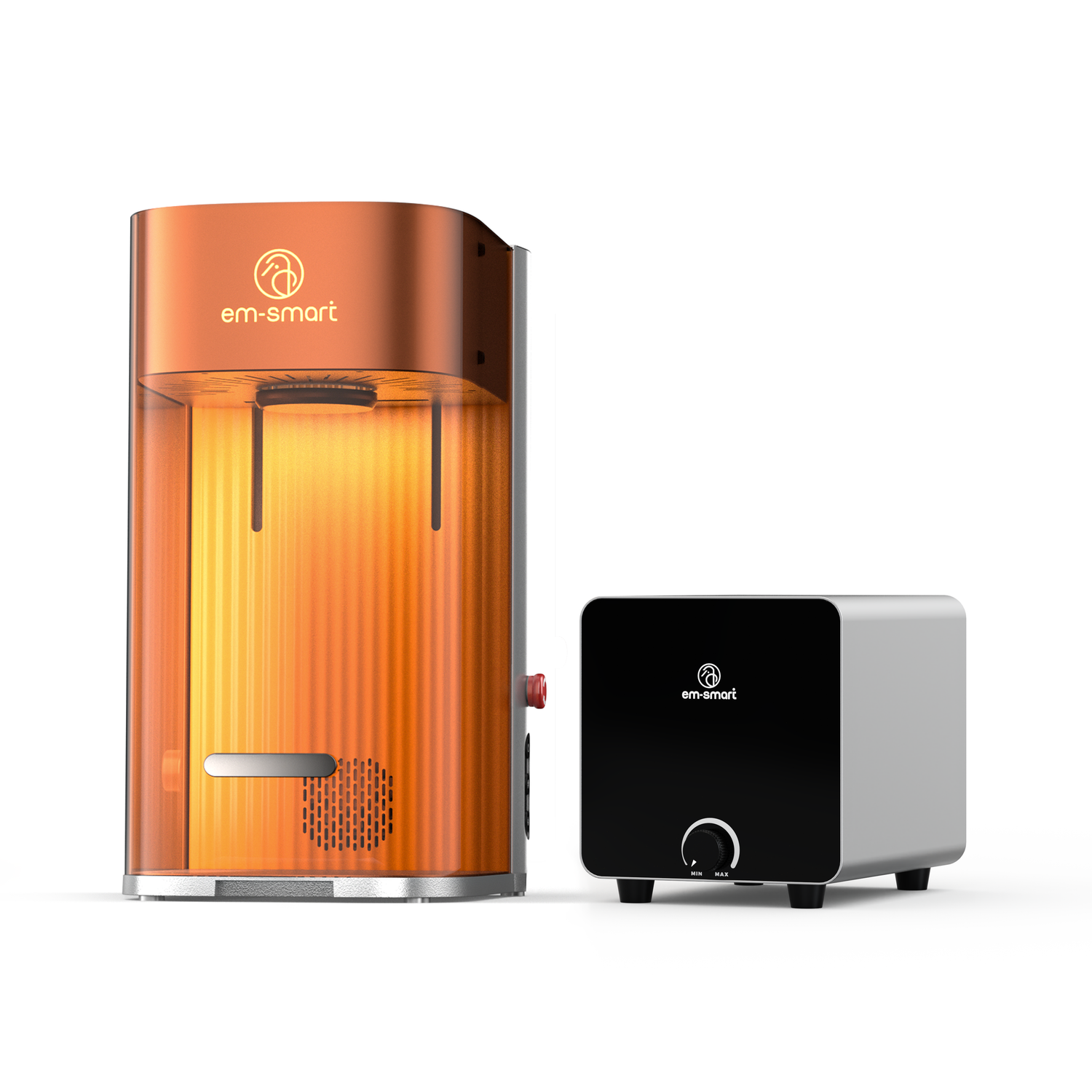

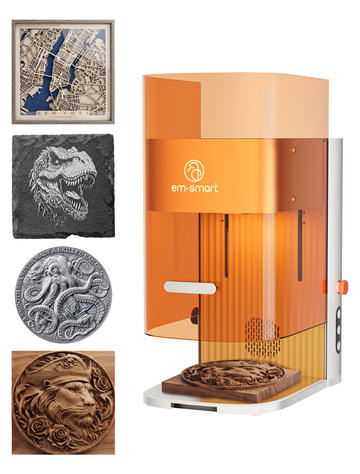

EM-Smart Dual 2
Buy Now

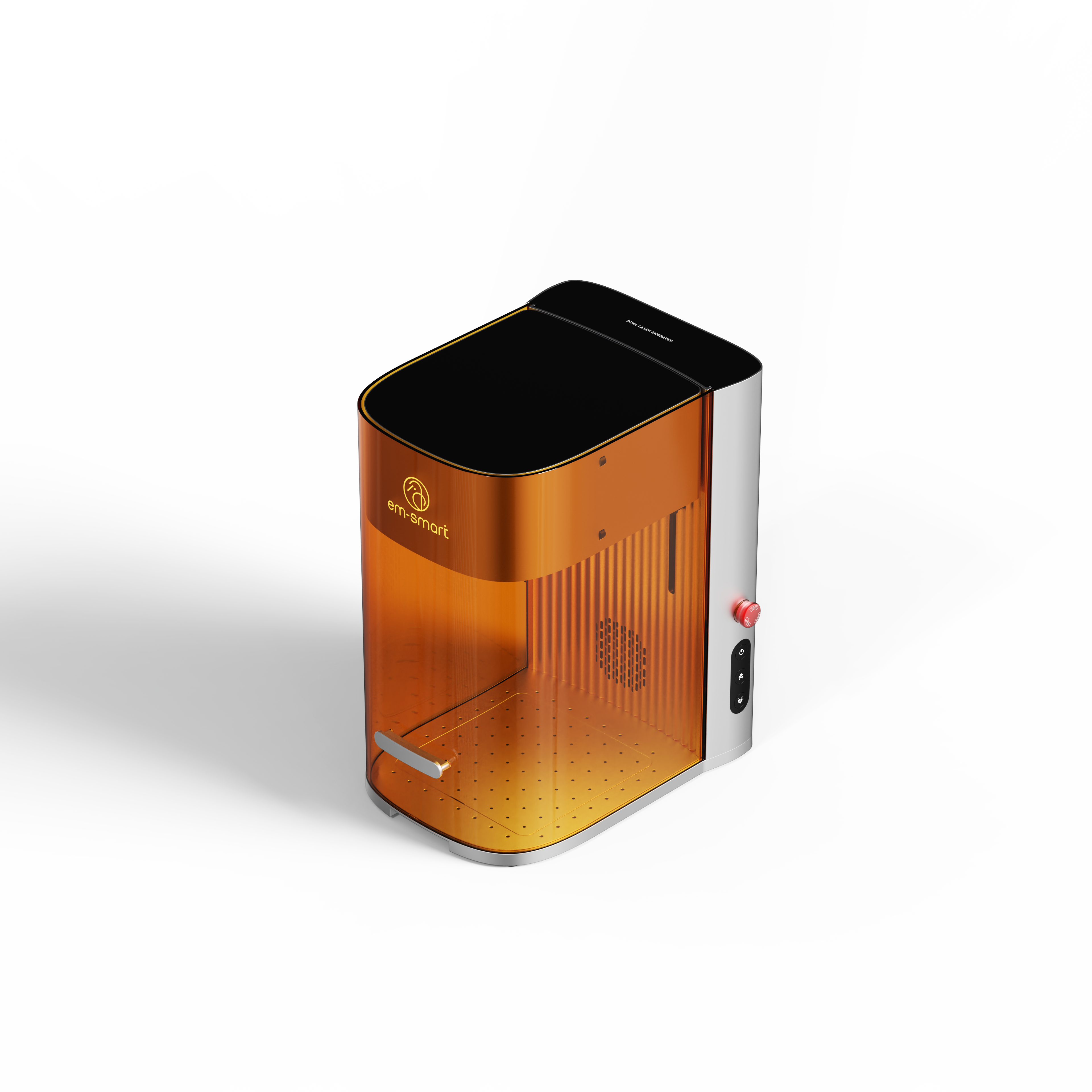

EM-Smart Dual SE
Buy Now

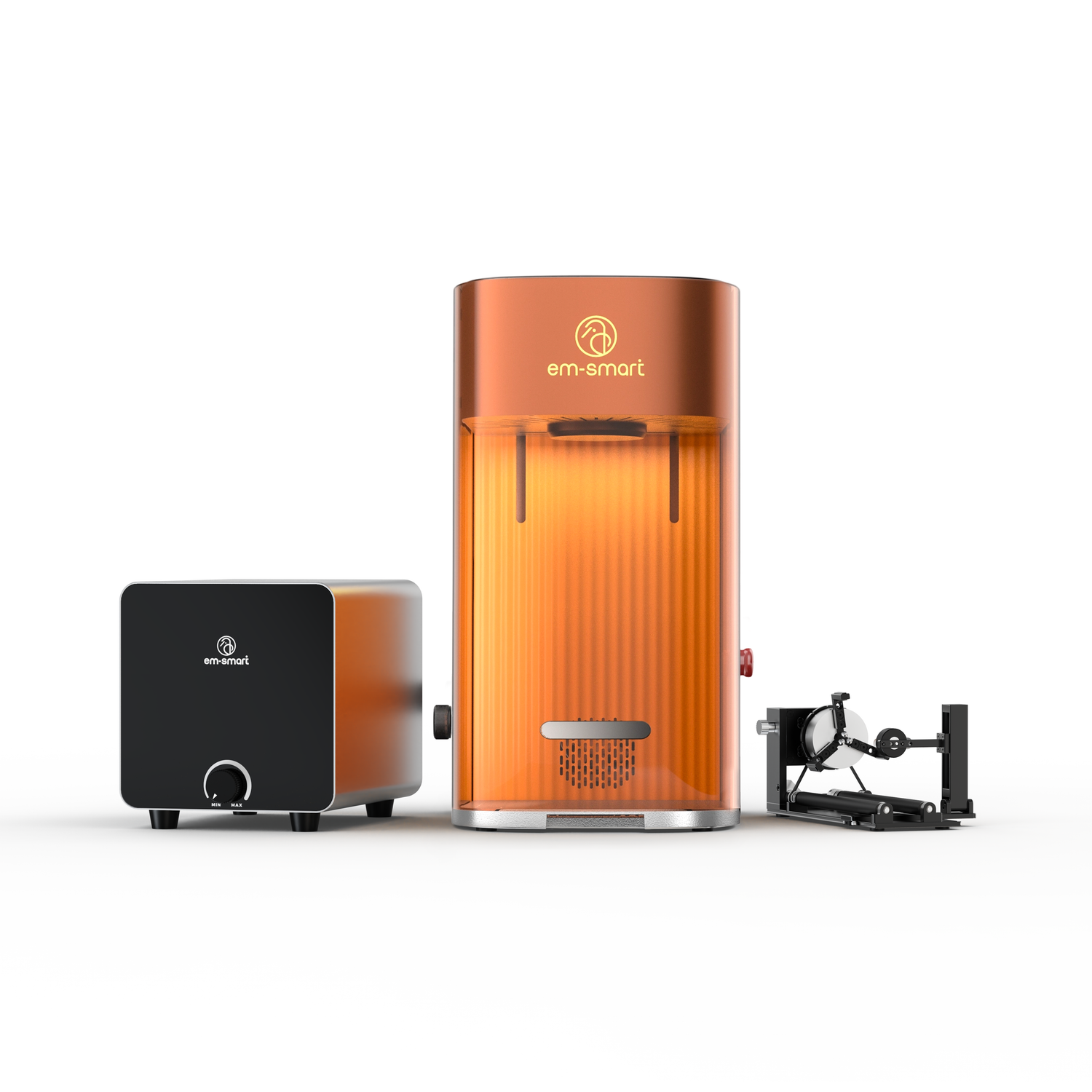

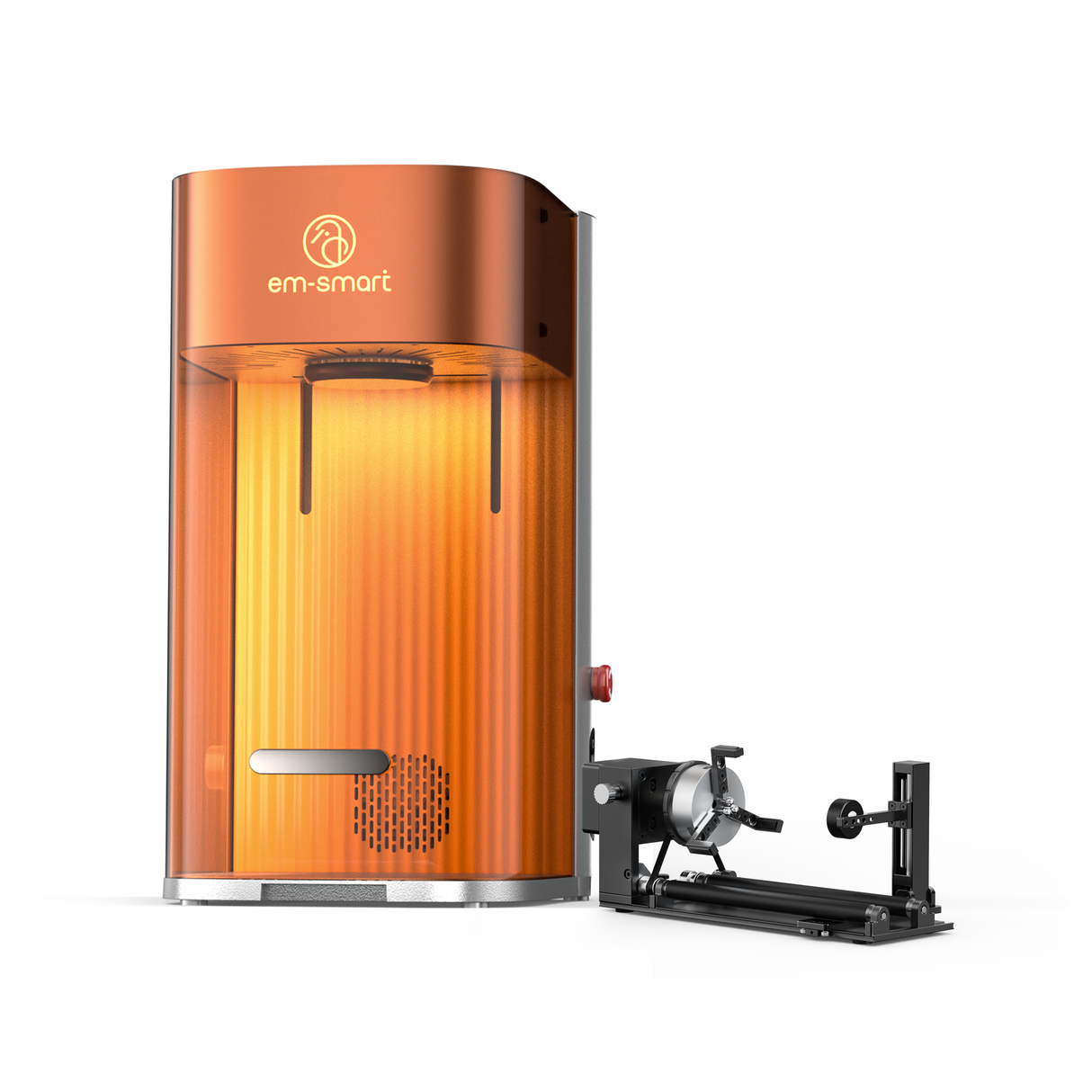

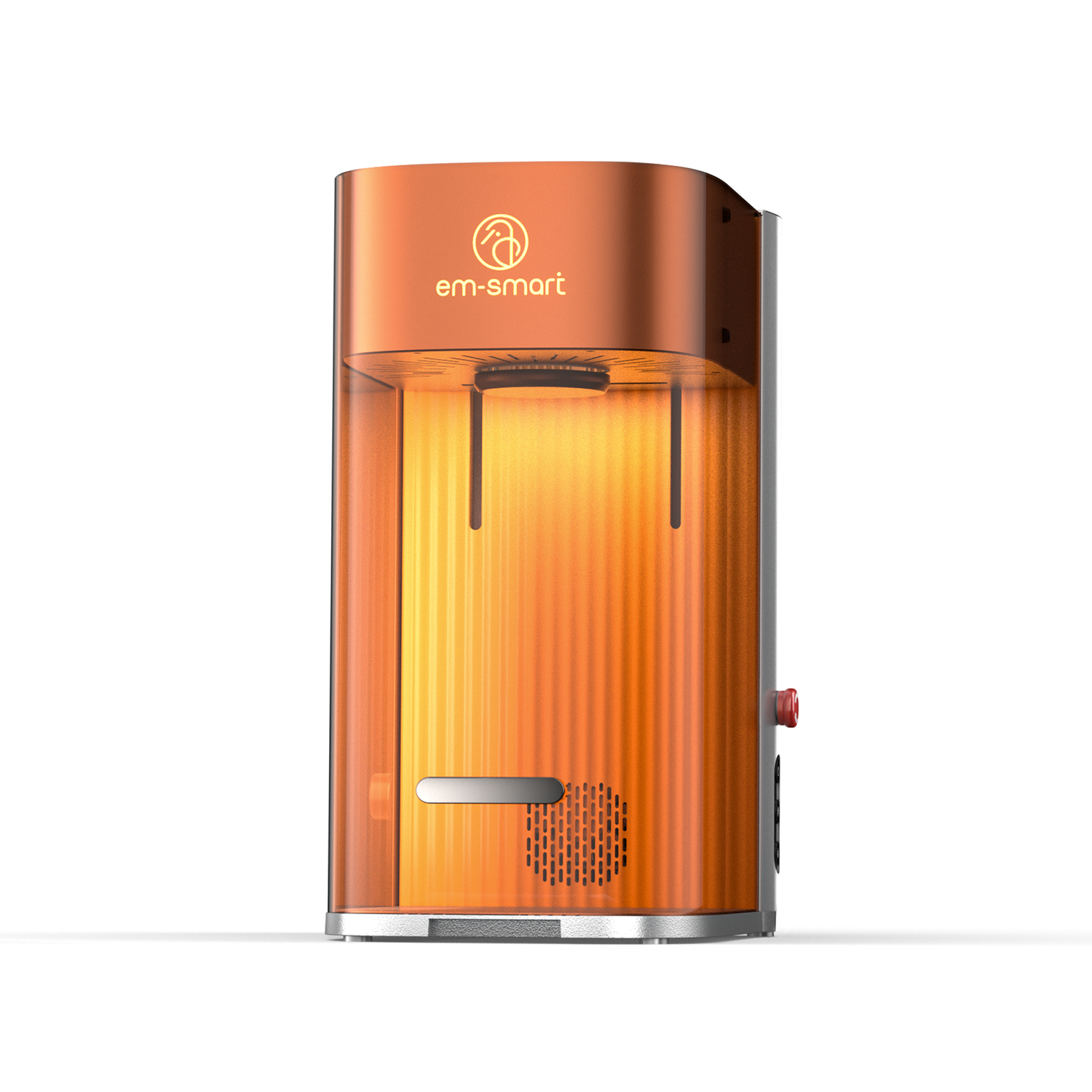

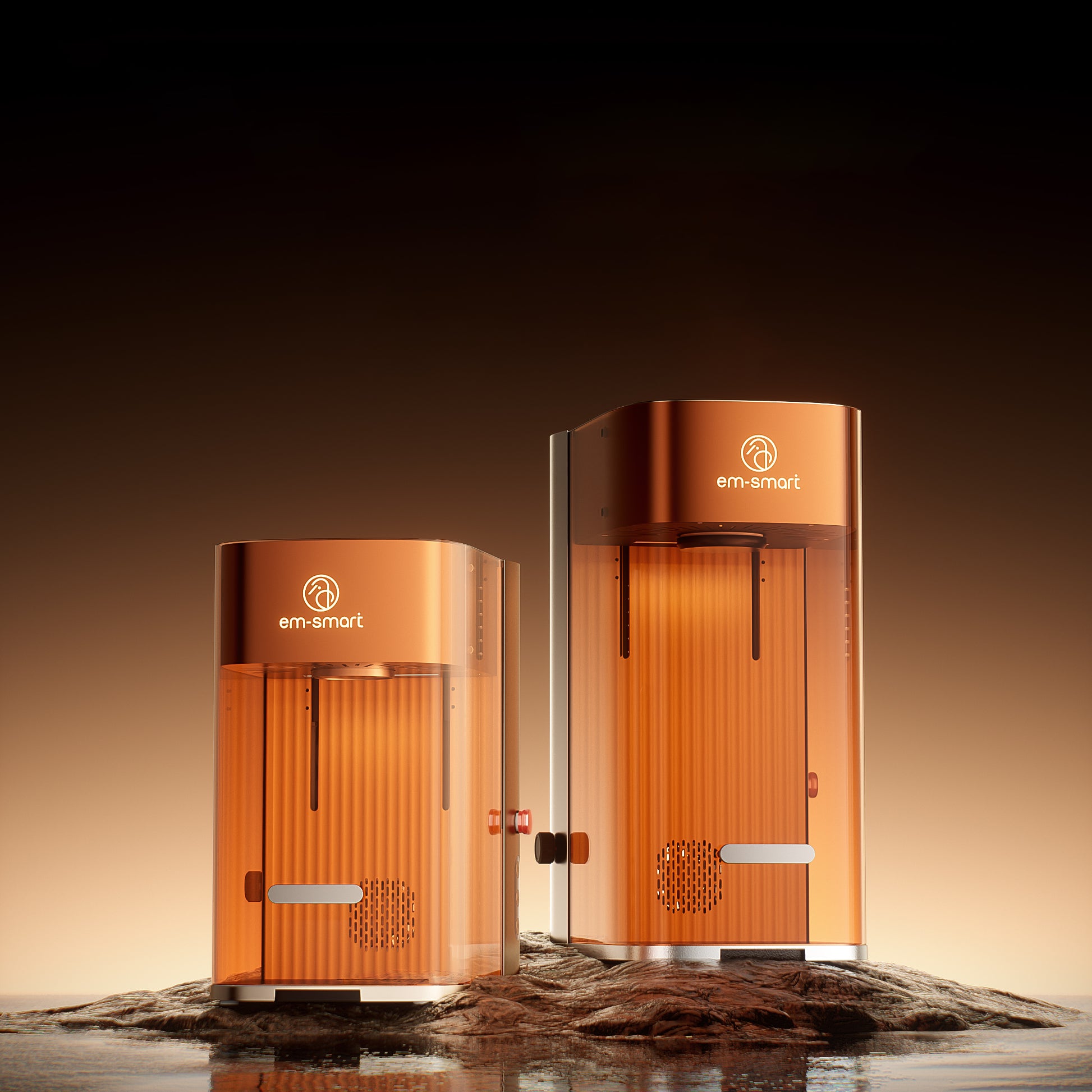

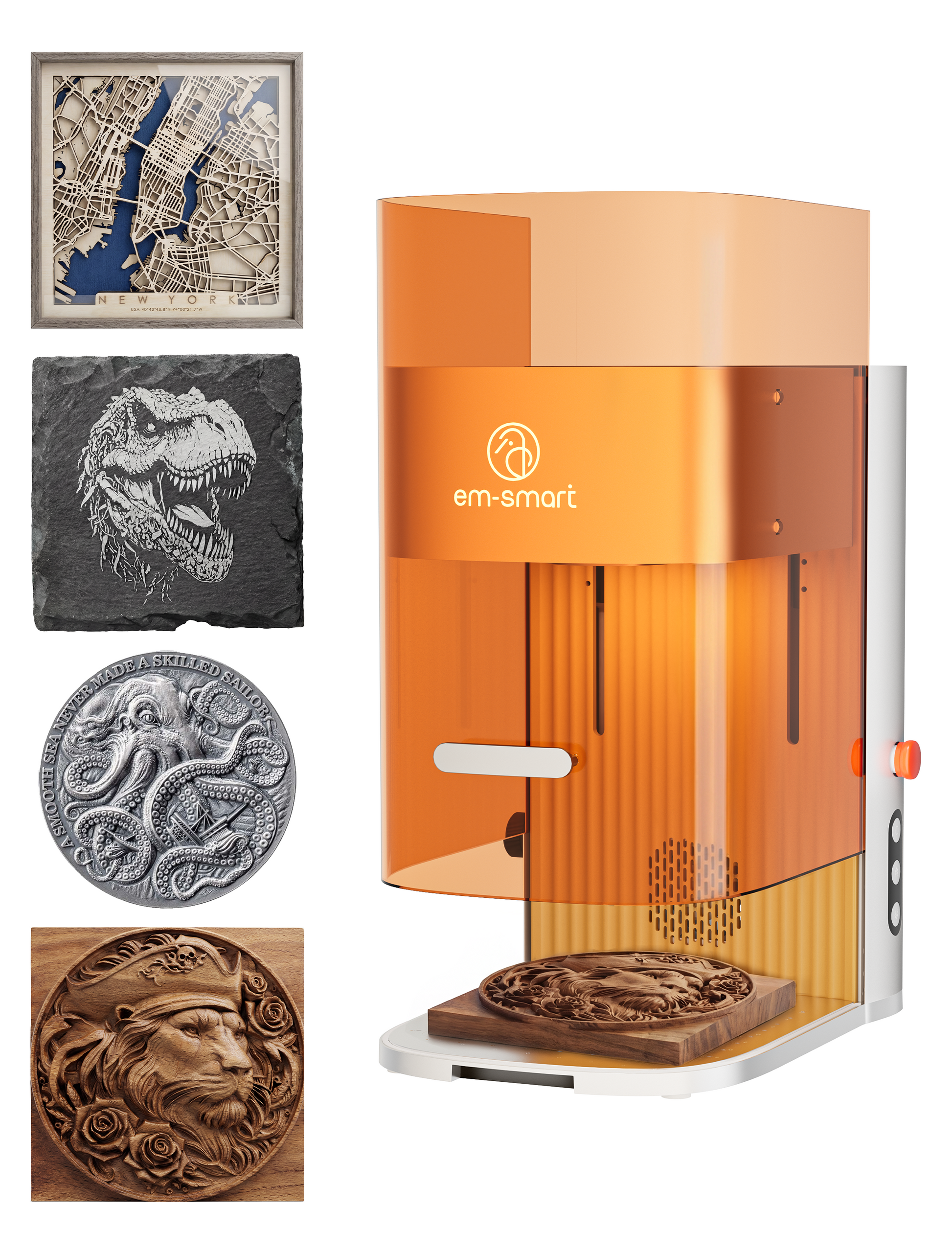

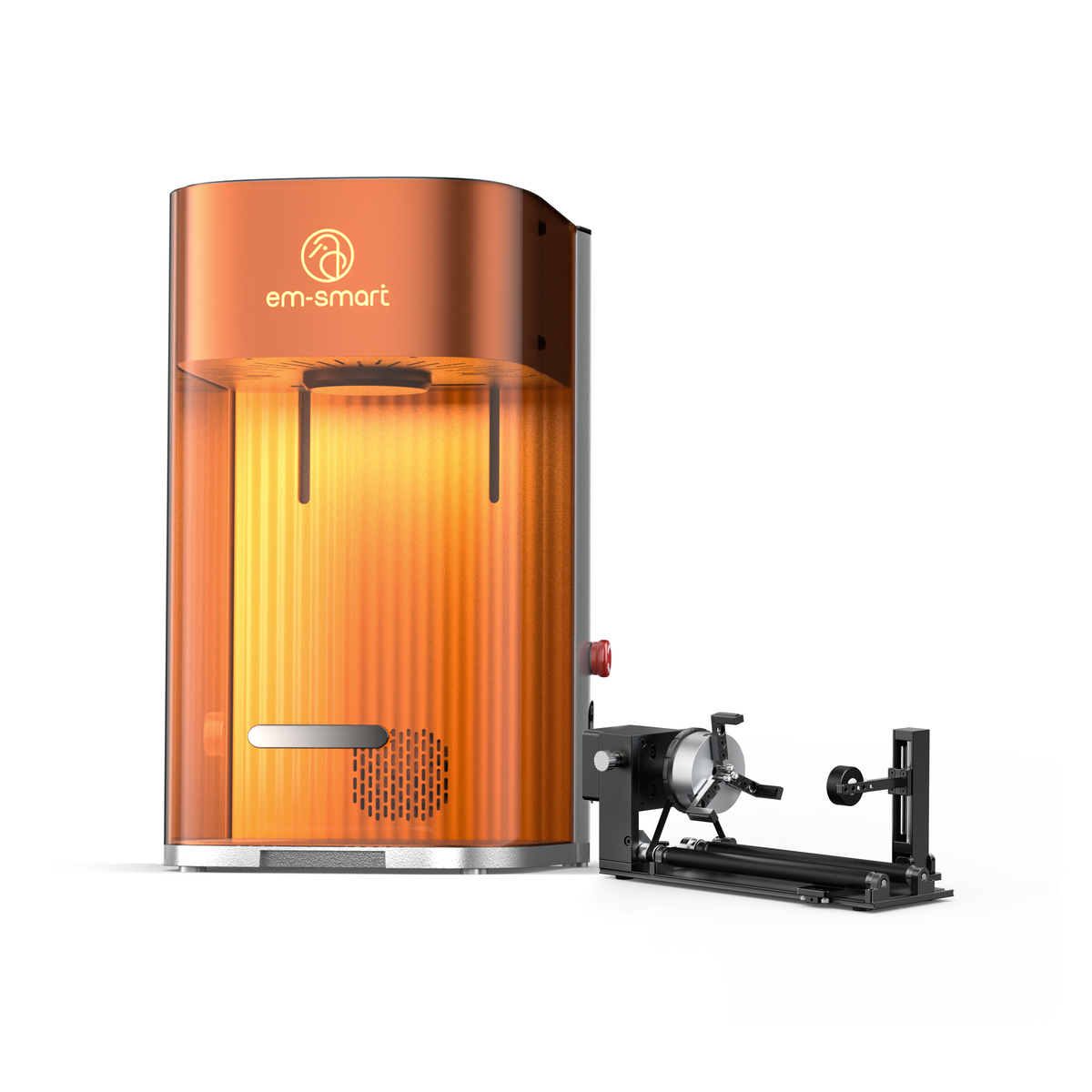

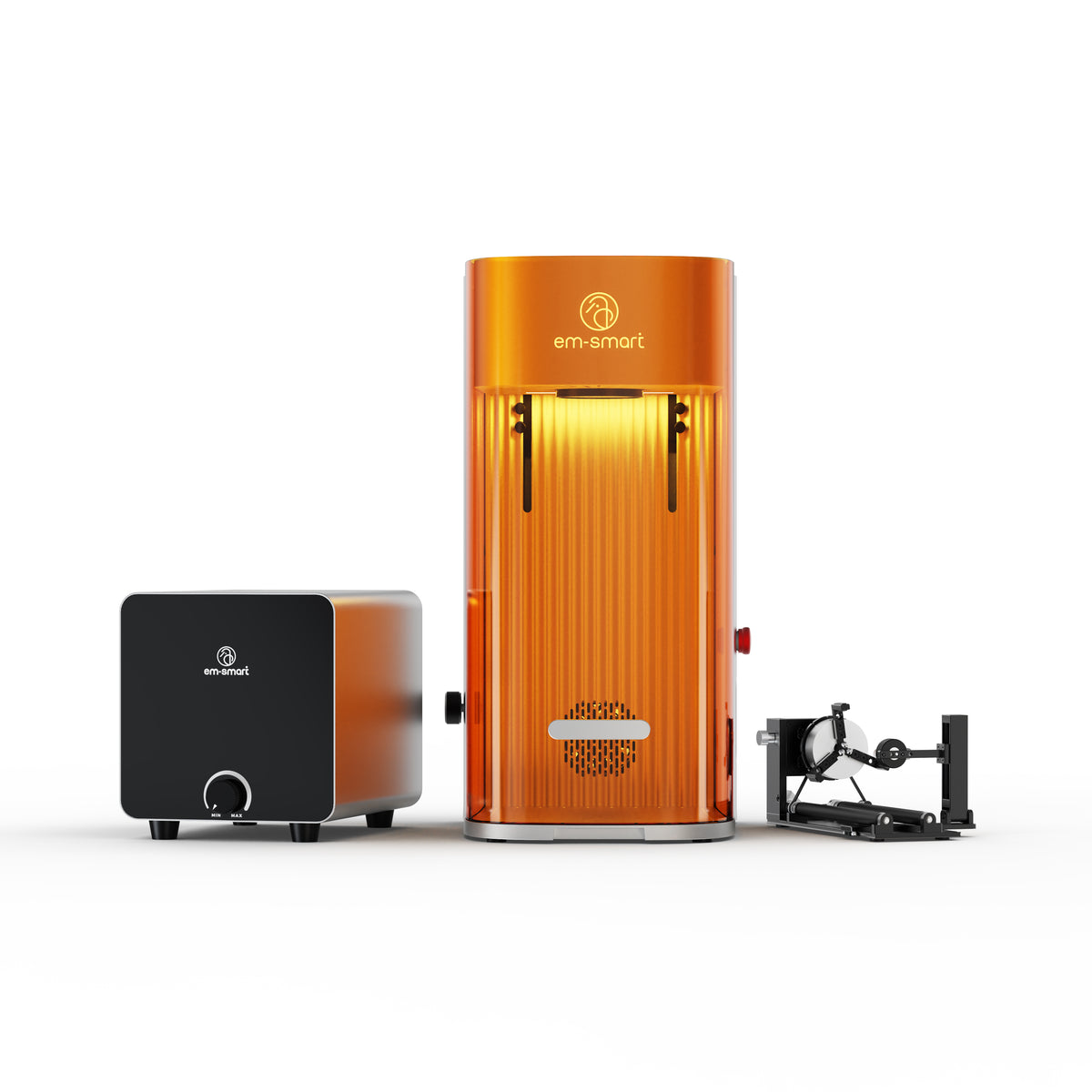

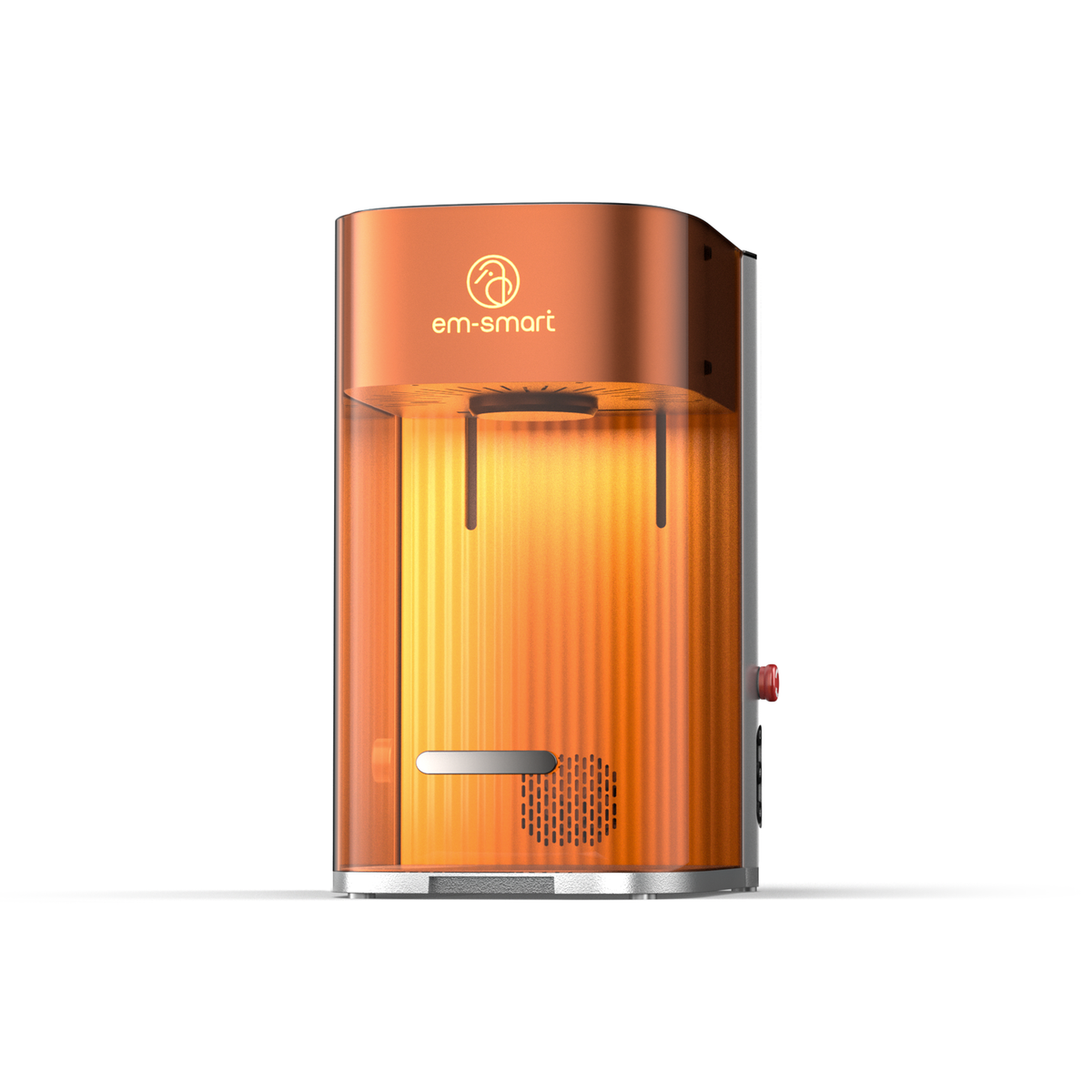

Machine's Images

Laser Parameters

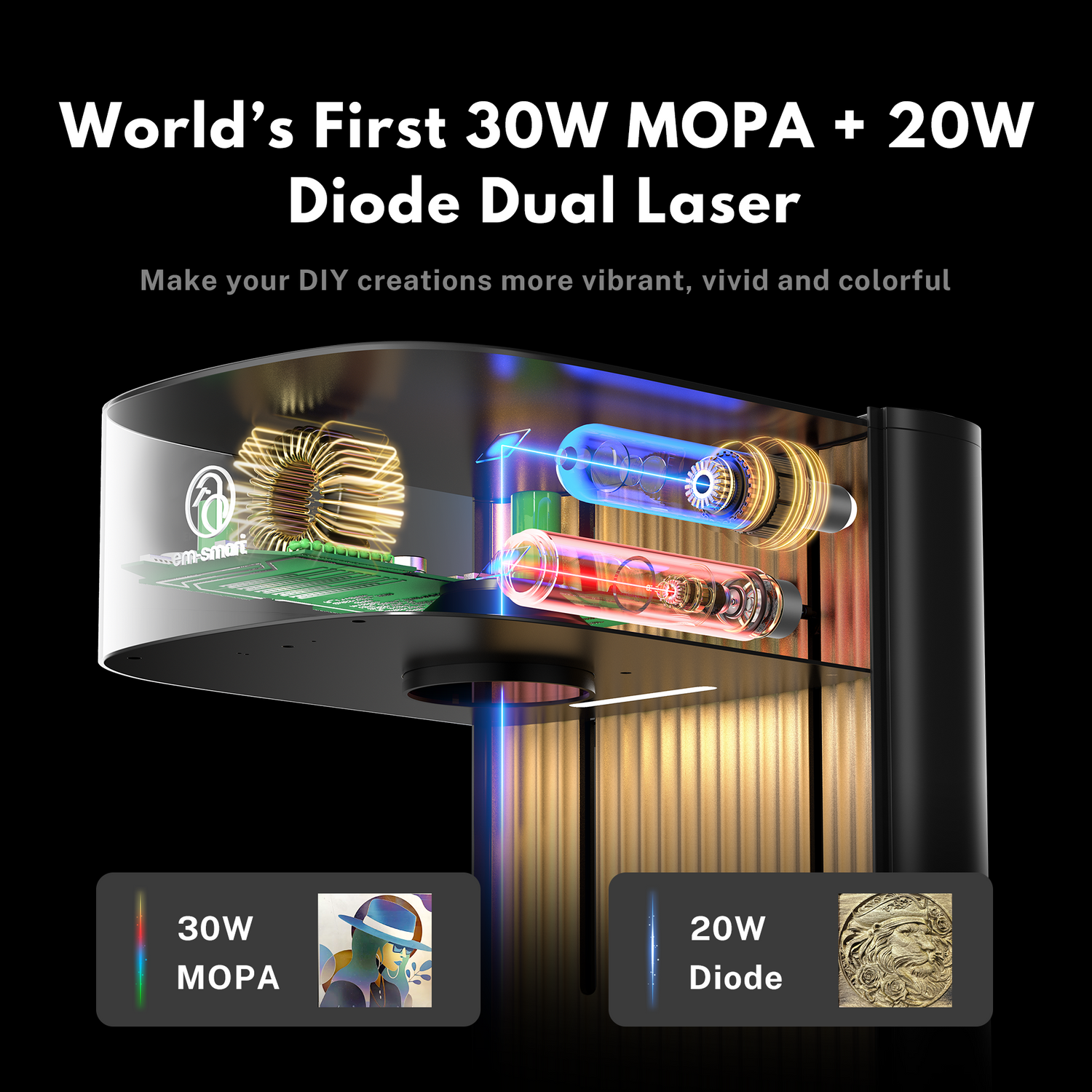

Laser Power
30W Fiber(Mopa) + 20W Diode
20W Fiber + 20W Diode
Laser Wavelength
1,064nm + 455nm
1,064nm + 455nm
Beam Quality
≤1.6m²
≤1.6m²
Frequency Range
27-62khz
27-62khz

Marking Parameters

Marking Speed
15,000mm/s
15,000mm/s
Marking Field(mm)
200*200
150*150
Maximum Marking Height
165mm
150mm
Working Distance
334mm
255mm

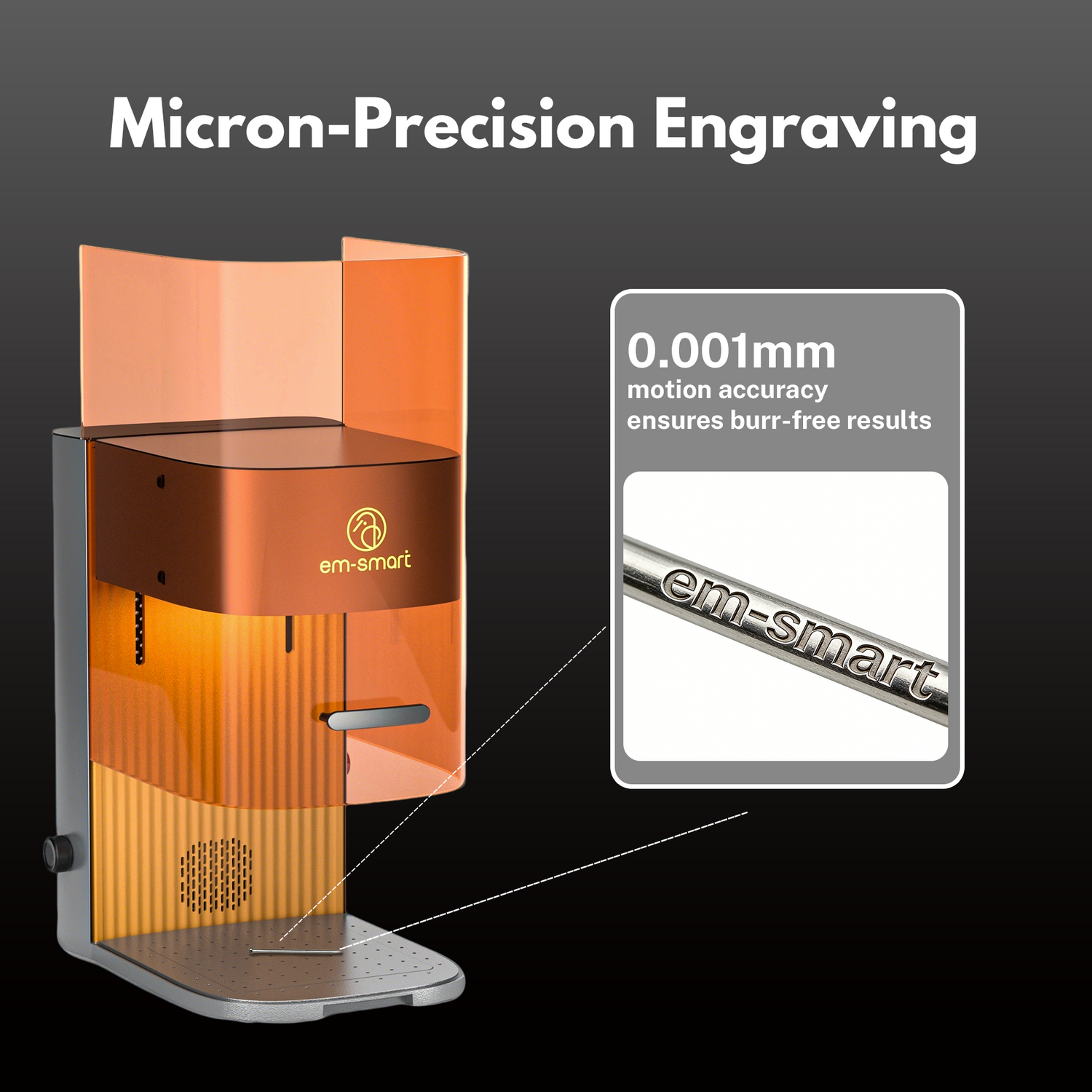

Motion Accuracy(mm)
±0.001
±0.001
Minimum Line Distance
Fiber(Mopa) 0.065mm
Diode 0.1mm
Fiber 0.04mm
Diode 0.08mm
Power Stability (8h)
<±1% rms
<±1% rms

Machine Dimensions

Field Lens
F290
F225
Camera Clarity
-
8MP
Net Weight
18.25Kg
16.4Kg
Packaging Weight
25.5Kg
23.65Kg
Machine Size(L*W*H mm)
293*399*585
293*399*485
Package Size(L*W*H mm)
375*535*665
370*535*570

Operating Parameters

Operating Temperature
50-107.6°F
50-107.6°F
Storage Temperature
14-140°F
14-140°F
Cooling Method
Air Cooling
Air Cooling
Supply Voltage
DC24V/7.5A
DC24V/7.5A
Input Power
≤180W
≤180W
PC Connection
USB Cable
USB Cable

Supported Features

Deep Engraving
Cutting
Safety Switch
Emergency Stop
Light-On Alert
X
Applicable Materials
Metal materials (stainless steel, aluminum, copper, iron, zinc alloy), non-metal materials (acrylic, rubber sheet, wood panel, PVC sheet, PP sheet, ABS sheet, PC sheet, cardboard, fabric, painted wood, stone slab, stone panel).

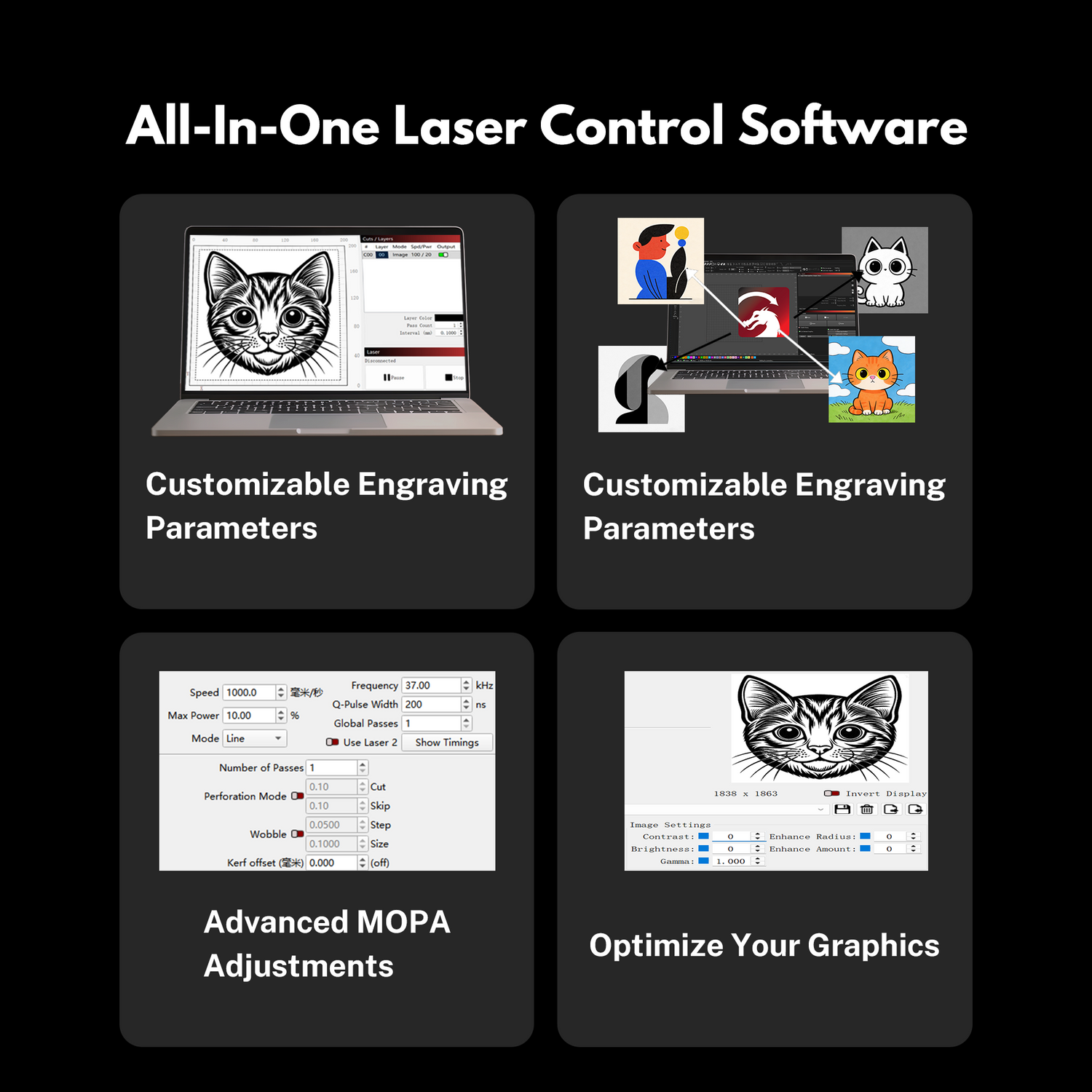

Software Compatibility

Marking Software
LIGHTBURN
File Formats
bmp/jpg/jpeg/png/gif/tif/tiff/tga/webp/ai/pdf/sc/dxf/gc/gcode/nc/hpgl/plt/rd/scpro2/svg/lbrn/mage
Software Languages
Simplified Chinese, Traditional Chinese, English, French, German, Russian, Japanese.
Operating System
Windows & MAC

Others

Certification
IEC60825-1, FDA, CE-EMC, FCC-SDoc
Warranty
1 Year

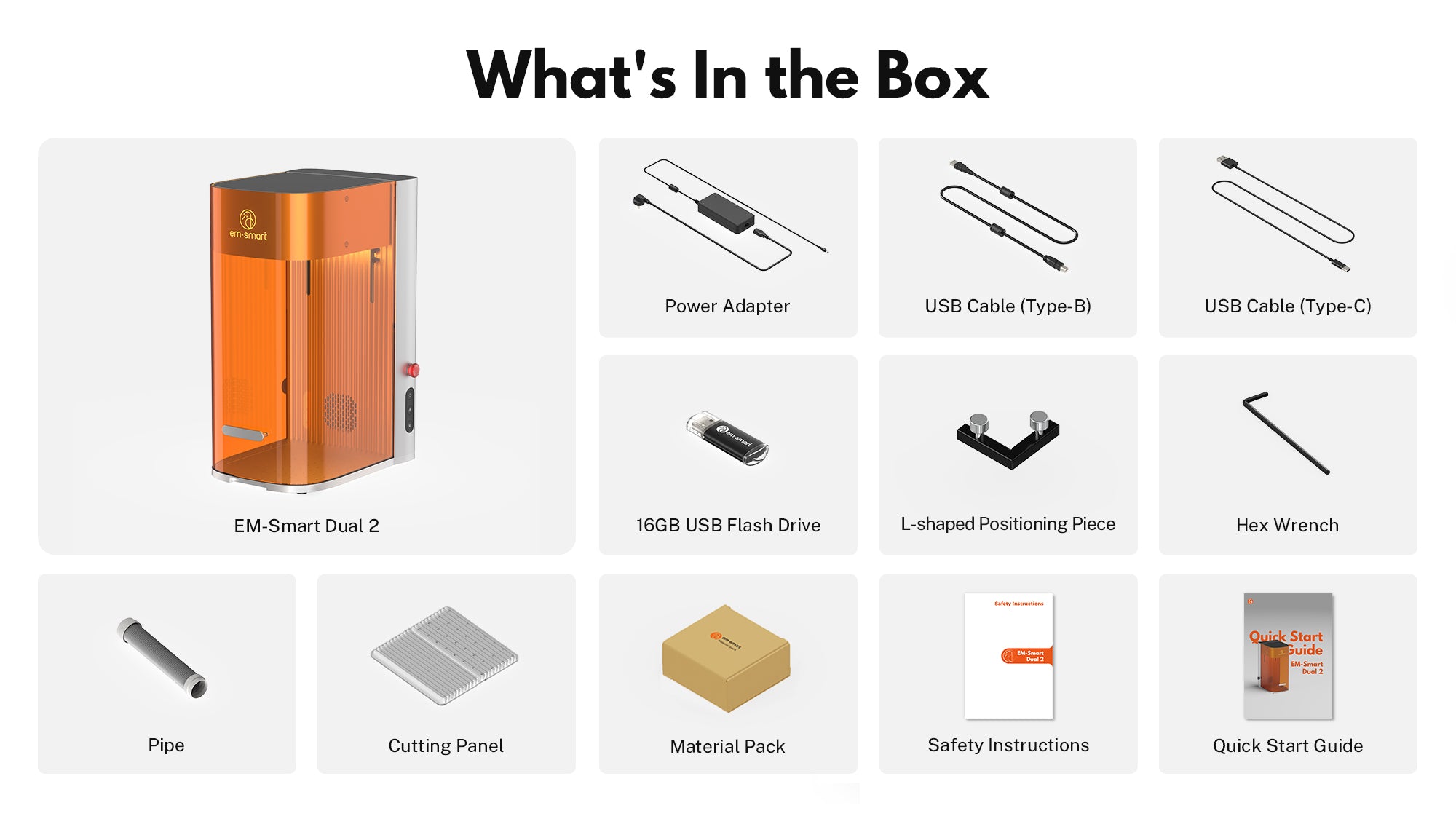

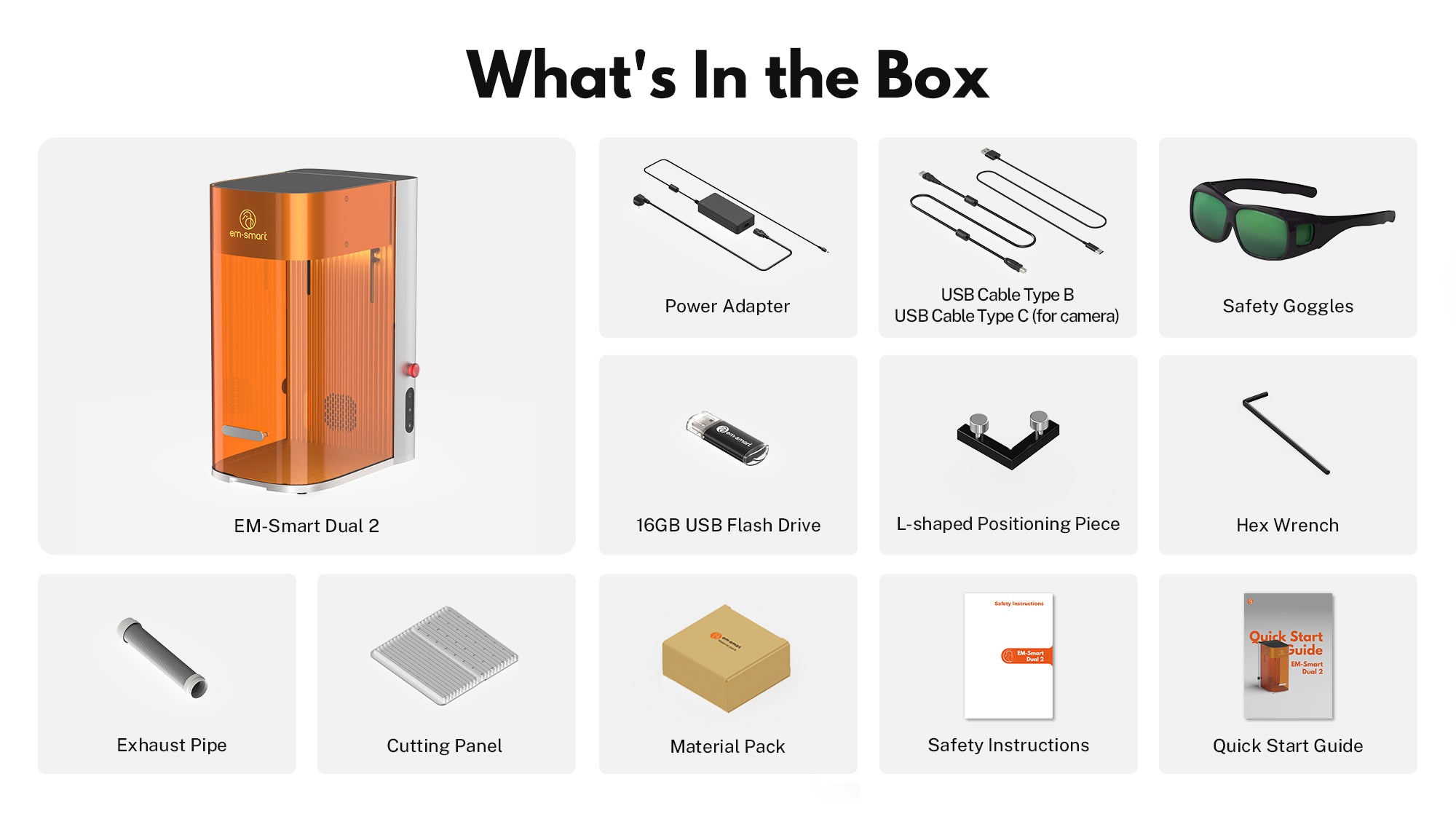

Standard Accessories
Laser safety goggles, cutting tray, L-shaped positioning bar, computer cable, camera cable, DC24V 7.5A power adapter, power cord, lens cleaning paper, USB flash drive, 2.5mm hex wrench, material kit.
