Desktop laser marking machines are incredibly popular because of their compact size, ease of setup, and high precision. However, they often encounter challenges when working with irregularly shaped or non-standard materials.
Traditional fixtures may struggle to ensure stable positioning, which can affect the quality of the mark. That’s where flexible fixture comes in—they’re designed to address these challenges, ensuring a smoother, more reliable marking process.
What is a Flexible Fixture?

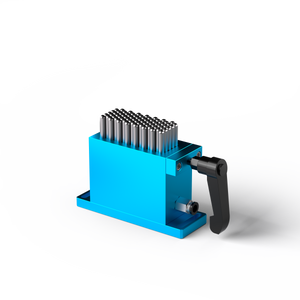

A flexible fixture is an adaptive tool designed to hold workpieces securely during the marking process. It usually consists of a combination of movable, stainless steel pins that adjust to different shapes and sizes of workpieces.
This allows the fixture to quickly and precisely lock the position, providing a solid foundation for the laser to mark the surface. These fixtures are commonly used with metals, plastics, wood, and more, offering versatility across various industries.
A typical flexible fixture works by using a press-and-rotate mechanism to adapt to the shape of the object being marked. The pins can be adjusted to create a custom setup for each specific workpiece, which ensures consistent results for different materials and shapes.
What functions can it offer?
1. Adaptability for Irregular Workpieces
Desktop laser engraving machines are often used to mark small, irregularly shaped objects like jewelry, keychains, and electronic enclosures. These types of workpieces don’t always fit neatly into traditional fixtures, which can lead to poor positioning and inaccurate markings. A flexible fixture, on the other hand, adjusts to the unique shape of each item, providing more reliable results without the hassle of custom setups.
2. Efficiency in Batch Processing
Once you’ve set up the flexible fixture for a specific batch of workpieces, you don’t need to adjust it for each new item. This saves a tremendous amount of time during the setup process. As new pieces are placed in the fixture, they’re aligned without requiring extra effort, making it perfect for batch production.
3. Stability Against Heat and Vibration
During the marking process, workpieces can become heated, causing them to expand or shift. Traditional fixtures may not be able to maintain their grip under these conditions, leading to inaccuracies. Flexible fixtures, however, are designed with materials that can withstand heat and vibration. Their strong clamping force ensures that the workpiece remains in place, even during extended high-frequency marking sessions.
Comparison with Traditional Fixtures
Now let’s break down how flexible fixtures compare to traditional fixtures in terms of key factors like adaptability, precision, setup time, and overall performance. This comparison will help clarify why flexible fixtures are often the superior choice for modern laser marking applications.
| Feature | Flexible Fixture | Traditional Fixture |
|---|---|---|
| Adaptability | Can adjust to a wide range of irregular shapes and sizes. | Typically designed for specific shapes and sizes. |
| Precision | Provides consistent precision even with heat and vibration. | Susceptible to shifts from heat and vibration. |
| Stability | High stability due to adaptable pins that prevent slippage. | May lose grip due to fixed setup. |
| Cost Efficiency | Higher upfront cost, but long-term savings due to adaptability. | Often cheaper initially, but less versatile. |
Real-World Applications
1. Personalized Jewelry and Small Items
Desktop laser engravers are often used to mark small, intricate items like jewelry and keychains. These types of workpieces often have curves, irregular surfaces, and varying shapes that make them difficult to hold securely with traditional fixtures. Flexible fixtures allow users to quickly adapt the setup to the shape of each item, ensuring that every marking is precise and aligned properly.
Besides, laser tools like laser rotary attachment can also achieve this laser engraving job.
Related reading:
No.2 Laser Engraver Accessory: Laser Rotary Attachment
2. Multi-Item Small-Batch Production
When processing multiple workpieces with varying shapes or sizes, traditional fixtures often require adjustments between each item, slowing down the process. Flexible fixtures, however, allow for quick repositioning of new items without needing to alter the setup. This adaptability increases efficiency and reduces downtime, making flexible fixtures perfect for businesses working with small-batch orders or mixed product lines.
Conclusion
Flexible fixtures are a game-changer for desktop laser marking machines, offering better adaptability, faster setups, and more precise results than traditional fixtures. Whether you’re working with a wide variety of materials, shapes, or sizes, these fixtures provide a stable, cost-effective solution for high-quality marking. If you want to streamline your production process and boost your efficiency, investing in a flexible fixture is a smart choice.
