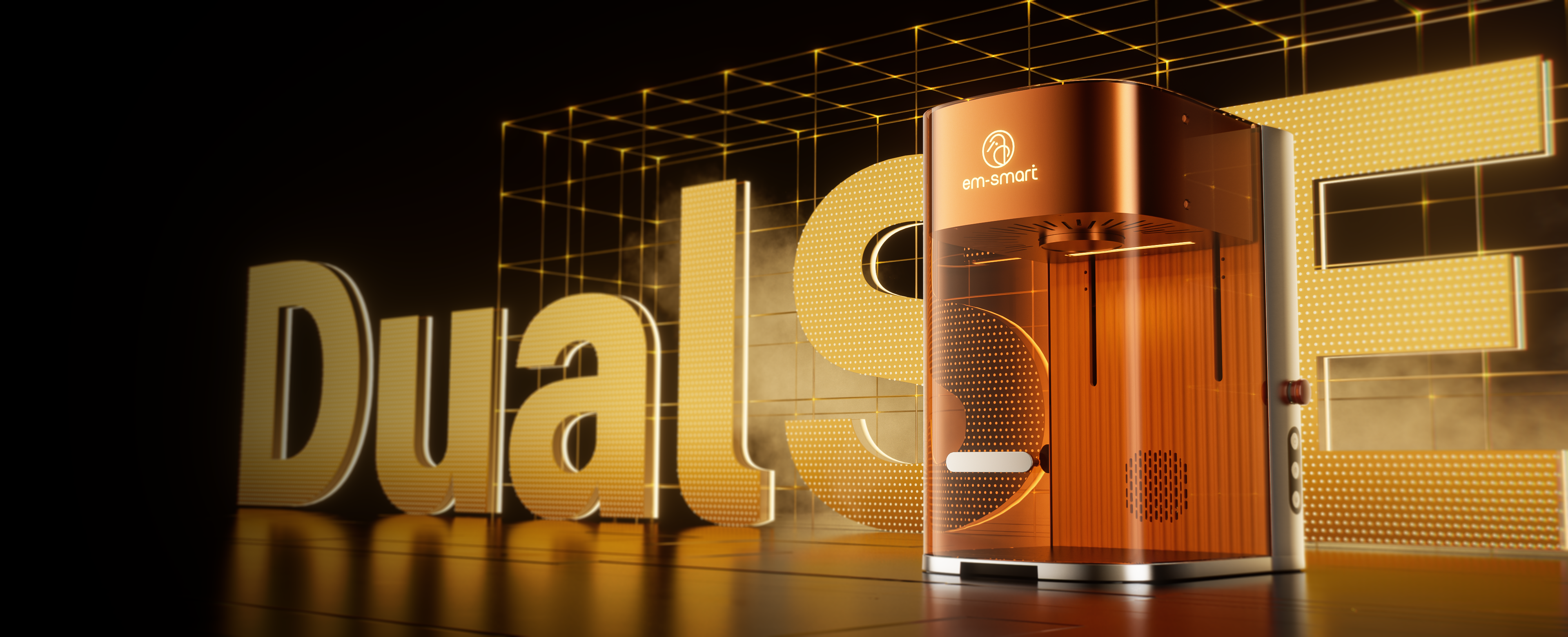

EM-Smart Dual SE
EM-Smart Dual SE
The Ultimate 20W Fiber + 20W Diode Laser Engraver
Dual SE Highlights
Work on Almost All Materials
World's First 20W Fiber
& 20W Diode Dual Laser
We combined the abilities of two lasers in the
EM-Smart Dual: a fiber laser for its exceptional
metal engraving performance and a blue diode laser
for engraving the most common materials.
World's First 20W Fiber
& 20W Diode Dual Laser
We combined the abilities of two lasers in the
EM-Smart Dual: a fiber laser for its exceptional
metal engraving performance and a blue diode laser
for engraving the most common materials.
One Machine, Endless Materials
Explore Our Materials
Metal
Stainless Steel
Lead
Gold
Silver
Aluminum
Brass
Others

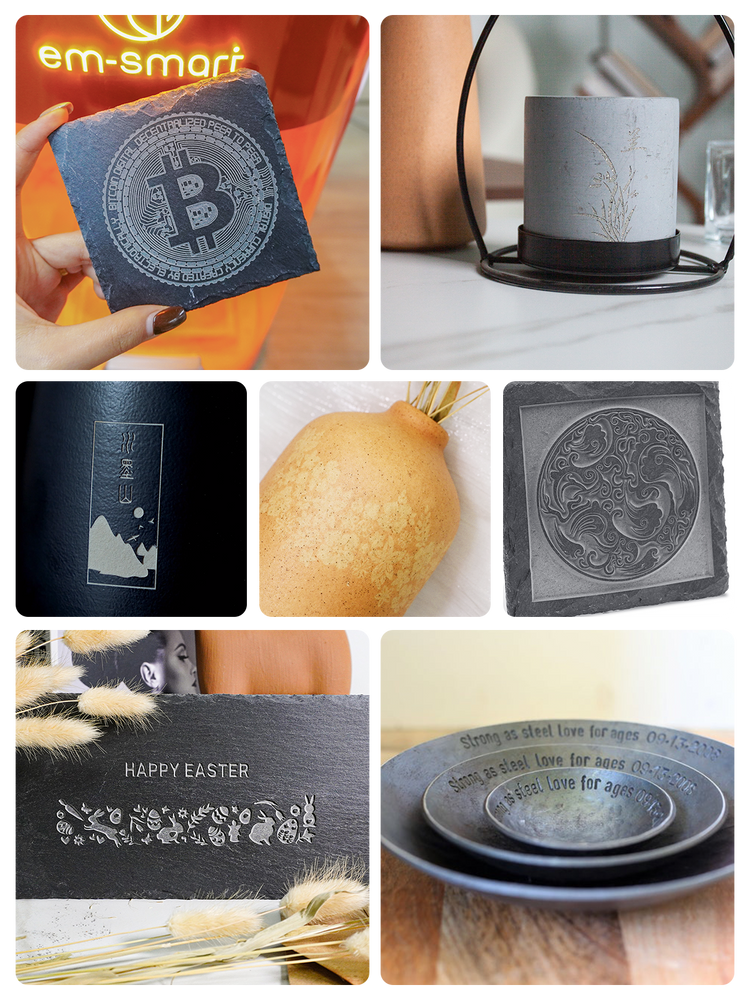

Slate

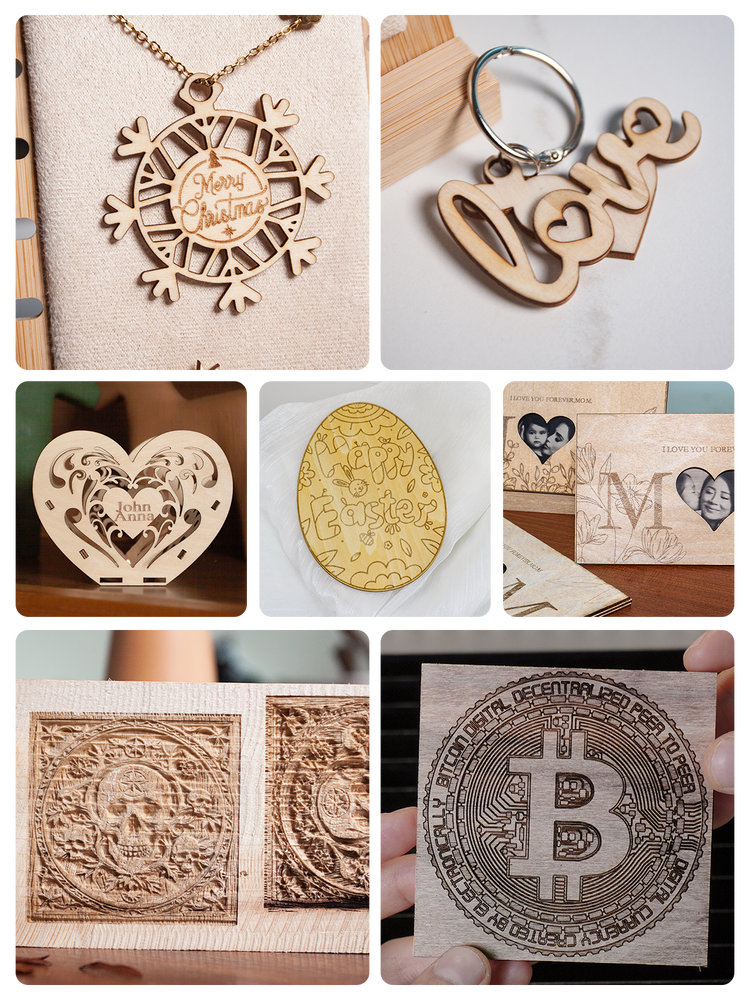

Wood
Leather
Paper
Plastic
Glass
3D Embossing
Deep Engraving
Precise Cutting
Dual 2's 20W Diode Laser produces wood embossing with crisp details and striking 3D depth.
The Dual 2's 30W MOPA redefines slate embossing, offering speed without sacrificing detail.
The 30W laser etch precision and depth into brass, creating embossing that you can both see and feel.
Wood
Dual 2's 20W Diode Laser produces wood embossing with crisp details and striking 3D depth.
Slate
The Dual 2's 30W MOPA redefines slate embossing, offering speed without sacrificing detail.
Brass
The 30W laser etch precision and depth into brass, creating embossing that you can both see and feel.
Create a permanent mark with deep wood engraving that reveals beautiful texture and lasting durability.
Achieve striking, high-contrast images on slate with our deep engraving process for a timeless look.
Get industrial-grade precision and quality with our deeply engraved brass for professional results.
Wood
Create a permanent mark with deep wood engraving that reveals beautiful texture and lasting durability.
Slate
Achieve striking, high-contrast images on slate with our deep engraving process for a timeless look.
Brass
Get industrial-grade precision and quality with our deeply engraved brass for professional results.
Effortlessly cut through 25mm thick wood with our 15,000mm/s speed laser, achieving clean, smooth edges in minutes.
Achieve flawless, intricate cuts on 1mm metal with 0.001mm micron-level precision, perfect for detailed designs.
Transform leather with razor-sharp cutting and exquisite marking, creating stunningly detailed patterns.
Wood
Effortlessly cut through 25mm thick wood with our 15,000mm/s speed laser, achieving clean, smooth edges in minutes.
Metal
Achieve flawless, intricate cuts on 1mm metal with 0.001mm micron-level precision, perfect for detailed designs.
Leather
Transform leather with razor-sharp cutting and exquisite marking, creating stunningly detailed patterns.
Laser Engraved Rings
Deep Engraved Wood Board
Logo Marking Water Bottle
Color Marking on Aluminum
Laser Cut Wooden Board
Laser Engraved Rings
Deep Engraved Wood Board
Logo Marking Water Bottle
Color Marking on Aluminum
Laser Cut Wooden Board
Turn Ideas into Profit
Calculate Your Earnings Potential with EM-Smart Dual SE
Select My Products
Custom My Product
Color Engraved Necklace
Deep Engraved Wood Decoration
Customed Bracelets
Logo Marked Bottles
Personalized Rings
DIY Dog Tags
Laser Engraved Coins
Laser Engraved Cards
Profit Potential Forecast
Equipment Investment Payback Period
4.2month(s)
Annual Revenue Forecast
$18,000
Annual Net Profit Forecast
$14,400
*For estimation purposes only. Actual profitability depends on numerous factors, including your marketing,
operational costs, and market demand.
The Ultimate Production Solution for Everyone
Woodshop
The Artisan‘s Laser
Turn wood into profit. Add high-value branding and fine detail with laser precision.
DIY Space
DIYers' ROI Machine
Dual 2 turns creativity into cash—customize high-demand items for gifts or online sales.
Online Shop
Made for Sellers
Handle every trending material—metal, wood, leather—and respond to custom orders fast.
Safe in All Aspects
Efficient smoke extraction quickly removes smoke and dust
during engraving, ensuring a safe environment for storefront
use.
The fully enclosed cover blocks the harmful light of both the 455nm diode laser and the 1064nm Fiber laser.
Strong Smoke Extraction
Efficient smoke extraction quickly removes smoke and dust
during engraving, ensuring a safe environment for storefront
use.
Laser Light Reduction
The fully enclosed cover blocks the harmful light of both the 455nm diode laser and the 1064nm Fiber laser.
What Youtubers Say
Chris from L3D
项目标题
Specifications
Model
EM-Smart Dual SE
Laser Parameters
Laser Power
20W Fiber + 20W Diode
Laser Wavelength
1,064nm + 455nm
Beam Quality
≤1.6m²
Frequency Range
27-62khz
Marking Parameters
Marking Speed
15,000mm/s
Marking Field(mm)
150*150
Maximum Marking Height
150mm
Working Distance
255mm
Motion Accuracy(mm)
±0.001
Minimum Line Distance
Fiber 0.04mm
Diode 0.08mm
Diode 0.08mm
Power Stability (8h)
<±1% rms
Machine Dimensions
Field Lens
F225
Camera Clarity
8MP
Net Weight
16.4Kg
Packaging Weight
23.65Kg
Machine Size(L*W*H mm)
293*399*485
Package Size(L*W*H mm)
370*535*570
Operating Parameters
Operating Temperature
50-107.6°F
Storage Temperature
14-140°F
Cooling Method
Air Cooling
Supply Voltage
DC24V/7.5A
Input Power
≤180W
PC Connection
USB Cable
Supported Features
Deep Engraving
✔
Cutting
✔
Safety Switch
✔
Emergency Stop
✔
Light-On Alert
X
Applicable Materials
Metal materials (stainless steel, aluminum, copper, iron, zinc alloy),
non-metal materials (acrylic, rubber sheet, wood panel, PVC sheet, PP sheet, ABS sheet, PC
sheet, cardboard, fabric, painted wood, stone slab, stone panel).
Software Compatibility
Marking Software
LIGHTBURN
File Formats
bmp/jpg/jpeg/png/gif/tif/tiff/tga/webp/ai/pdf/sc/dxf/gc/gcode/nc/hpgl/plt/rd/scpro2/svg/lbrn/mage
Software Languages
Simplified Chinese, Traditional Chinese, English, French, German,
Russian, Japanese.
Operating System
Windows & MAC
Others
Certification
IEC60825-1, FDA, CE-EMC, FCC-SDoc
Warranty
12 Months
Standard Accessories
Laser safety goggles, cutting tray, L-shaped positioning bar,
computer cable, camera cable, DC24V 7.5A power adapter, power cord, lens cleaning paper,
USB flash drive, 2.5mm hex wrench, material kit.
Frequently Asked Questions
About Products
What's the difference between MOPA and standard fiber laser sources?
What's the difference between MOPA and standard fiber laser sources?
MOPA laser systems utilize adjustable pulse width technology to create controlled oxidation layers on metal surfaces, enabling permanent color marking in shades ranging from golden bronze to deep blue. Conventional fiber lasers with fixed pulse width cannot generate these oxide variations, making them incapable of producing color marks on materials.
What materials and thicknesses can the Dual SE cut/engrave?
What materials and thicknesses can the Dual SE cut/engrave?
- Engraving: Deeply and precisely marks stainless steel, aluminum, titanium, brass, anodized aluminum, coated metals, ceramics.
- Cutting: Powerfully cuts materials like 25mm wood and 15mm acrylic, and engraves on surfaces including 1mm metal (using a coating).
Is the Dual SE easy to use?
Is the Dual SE easy to use?
- Instant Setup: Designed for a true "out-of-the-box" experience with minimal initial configuration required.
- Effortless Focus: The Dual SE features electric focus for quick and precise adjustment of the working distance.
- Expanded Versatility: Directly supports essential accessories like fume purifiers and rotary attachments to meet the demands of diverse marking applications.
Shipping
What countries do you ship to?
What countries do you ship to?
We provide free and fast shipping service by air freight to all countries over the world.
How long will it take to receive my order?
How long will it take to receive my order?
After the pre-sale campaign concludes, we will begin processing all orders. We process and ship orders within 7 business days on a first-come, first-served basis. Delivery times then vary by location, typically between 5-14 business days.
