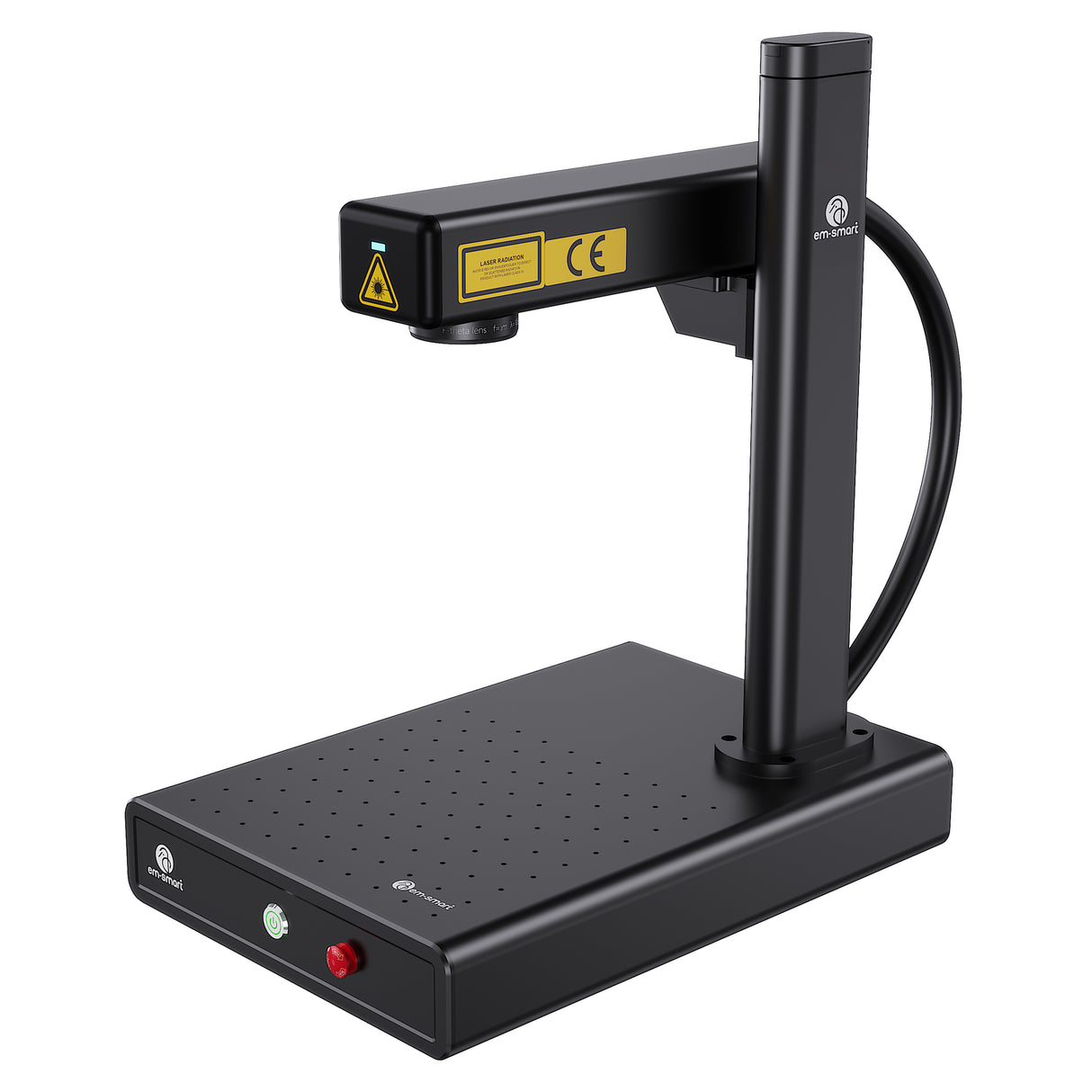

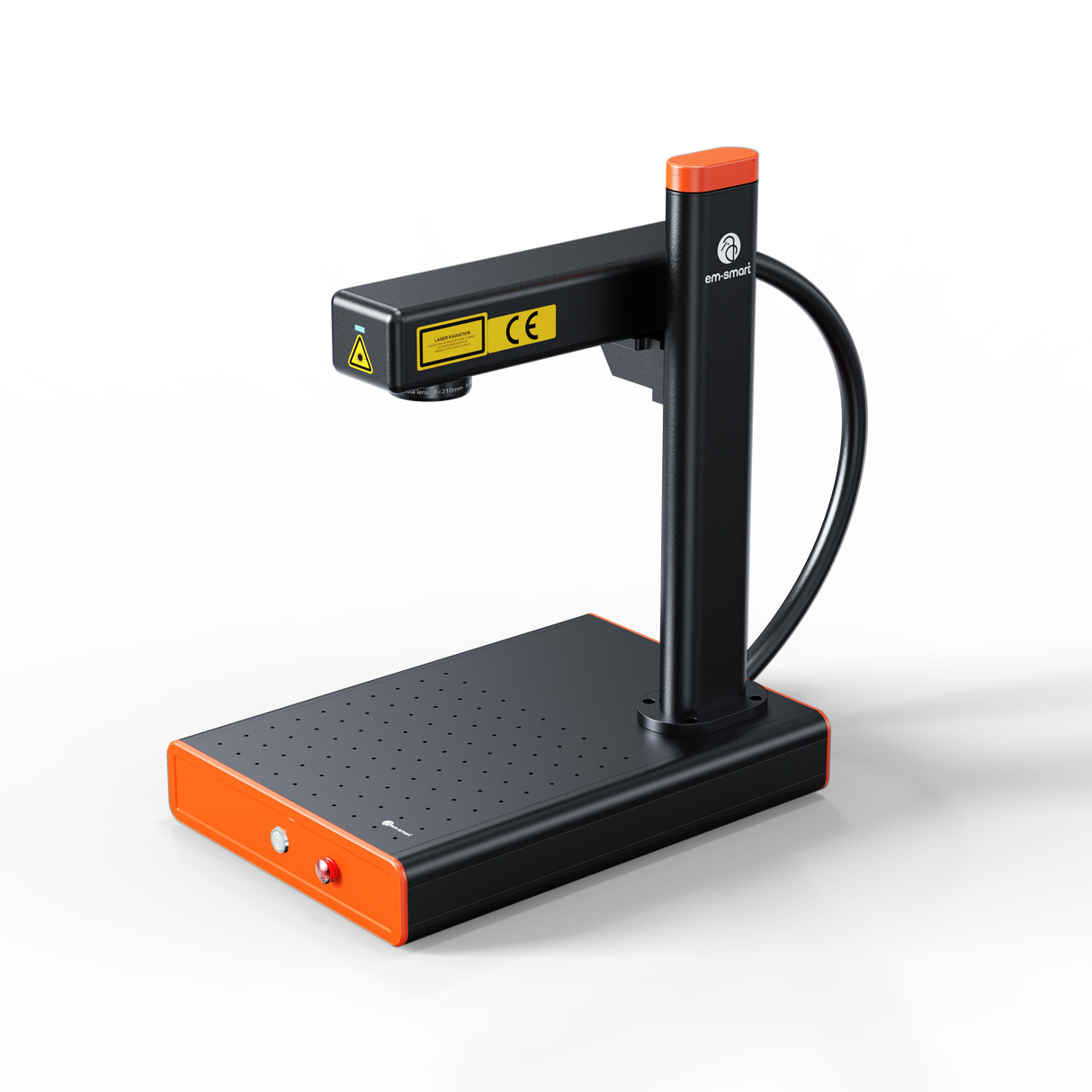

Portable & Affordable 20W Fiber Laser Engraver – EM-Smart Basic

Regular price $1,899.00
Sale price $1,899.00 Regular price $2,199.00
Shop Now
Section Image
The World’s Ultimate Engraving Virtuoso
Where Engraving Defies All Bounds
The Machine That Outlasts Time

The World’s Ultimate Engraving Virtuoso

Up to 15,000 mm/s Speed

Up to 15,000 mm/s Speed

Up to 15,000 mm/s Speed

Up to 0.002 mm Motion Accuracy

Up to 0.002 mm Motion Accuracy

Up to 0.002 mm Motion Accuracy

HD 8K Resolution

Where Engraving Defies All Bounds

EM-Smart Dual Engraving Performance

Depth Unrivaled

2mm Deep Engraving: Permanently mark metals and hard materials with exceptional depth and clarity.

Cutting Depth

5mm Precision Cutting: Achieve clean, smooth edges on a wide range of materials with high-speed accuracy.

Load video: granite deep engraving.

Depth Unrivaled

2mm Deep Engraving: Permanently mark metals and hard materials with exceptional depth and clarity.

Load video: granite deep engraving.

Cutting Depth

5mm Precision Cutting: Achieve clean, smooth edges on a wide range of materials with high-speed accuracy.

Load video:

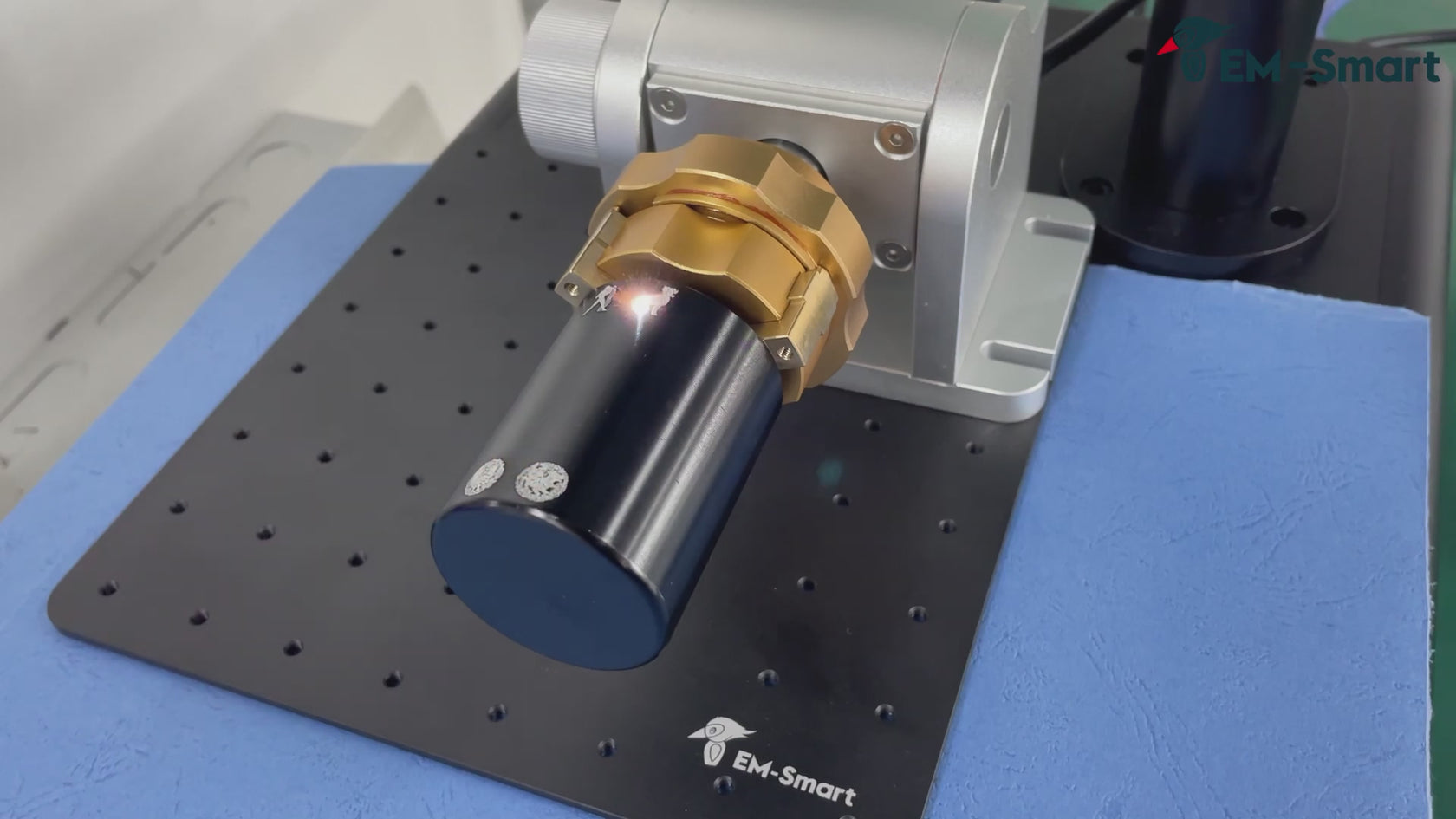

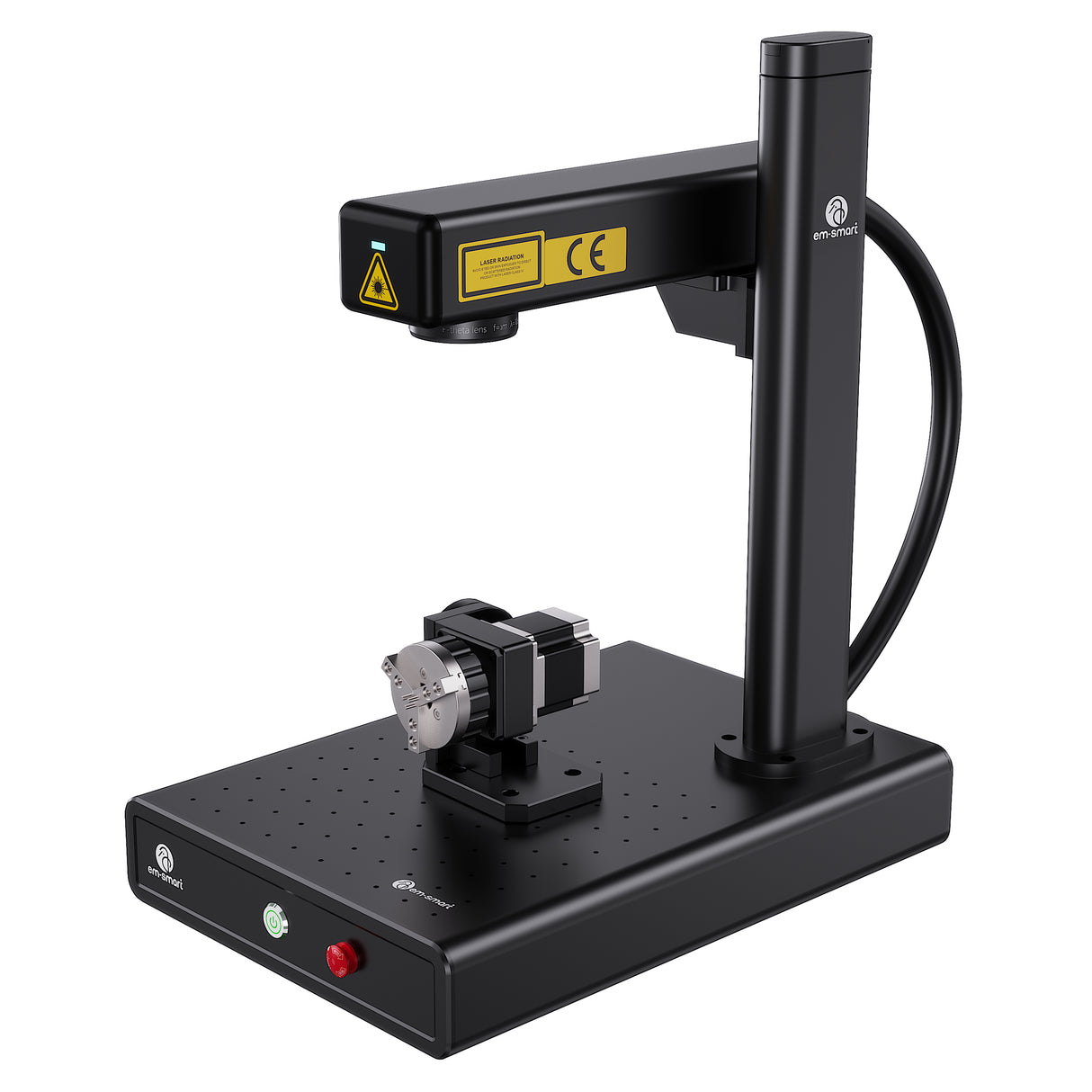

Rotary Engraving Made Easy: Tumblers, Rings, and More

The Machine That Outlasts Time

EM-Smart US Official

EZCAD & LightBurn

All EM-Smart lasers come with customized BJJCZ laser marking board, they are compatible with both Ezcad & LightBurn to spark every ideas, and you can use your EM-Smart on Windows, MAC, Linux.

EM-Smart Laser Marker Technical Specifications

EM-Smart BASIC Specs

Models

EM-Smart Basic 1
EM-Smart Basic 2

Laser Parameters

Laser Source
MAX
MAX
Laser Type
Fiber laser
Fiber laser
Laser Power
20W
25W
Laser Wavelength
1,064nm
1,064nm
Beam Quality
≤1.4m²
≤1.6m²
Frequency Range
20-60khz
20-60khz

Marking Parameters

Marking Speed
15,000mm/s
15,000mm/s
Marking Field(mm)
110*110 (70*70/150*150/175*175)
110*110 (70*70/150*150/175*175)
Maximum Marking Height
200mm
200mm
Motion Accuracy
±0.002
±0.002
Minimum Line Distance
0.01mm
0.01mm

Machine Dimensions

Net Weight
11.5Kg
11.5Kg

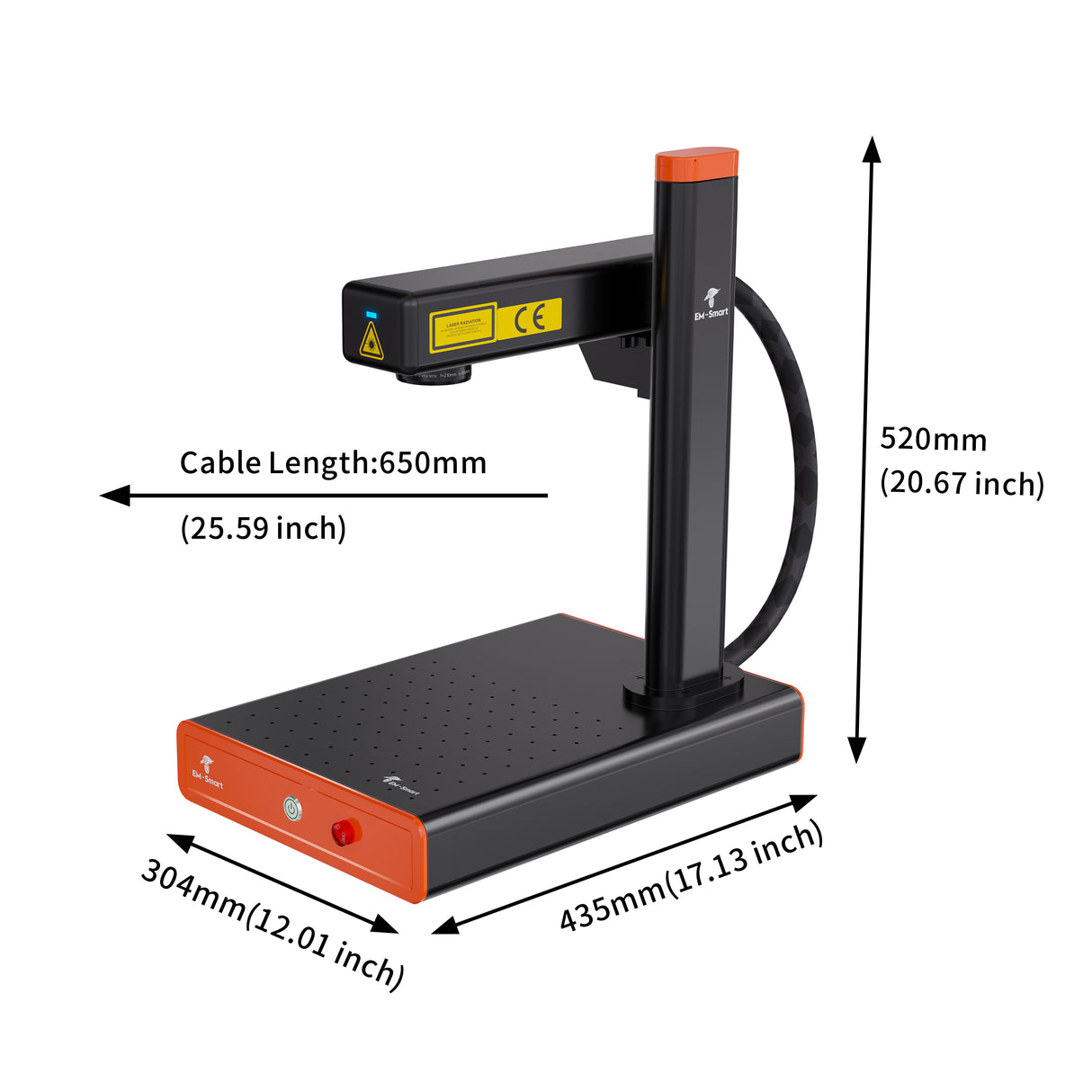

Machine Size(L*W*H*T mm)
435*305*525*70
435*305*525*70
Package Size(L*W*H*T mm)
760*540*170
760*540*170
Machine Color
Black/Orange
Black/Orange

Operating Parameters

Operating Temperature
10-42℃
10-42℃
Storage Temperature
-10-60℃
-10-60℃
Cooling Method
Air Cooling
Air Cooling
Lifespan
100,000(Hours)
100,000(Hours)
Supply Voltage
DC24V
DC24V
Input Power
≤160W
≤180W
PC Connection
USB Cable
USB Cable

Supported Features

Deep Engraving
Cutting
X
Rotary Function
✔(With accesorries)
✔(With accesorries)
Lens Replacement
Thermal Protection
Emergency Stop
Applicable Materials
Metal, Plastic, Leather, Slate, Stone, Rubber, Coated Wood, etc.

Software Compatibility

Marking Software
EZCAD/LIGHTBURN (License Required)
File Formats
text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code, qr code, serial number, date code, time code, TCP/IP communication, serial communication, file, sql database, etc.
Software Languages
Chinese (Tradition & Simplified), English, Japanese, Korean, Spanish, Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish…Up to 24 Languages
Operating System
Windows & MAC

Certification

CE, FDA, RoHS, SGS, ISO9001
