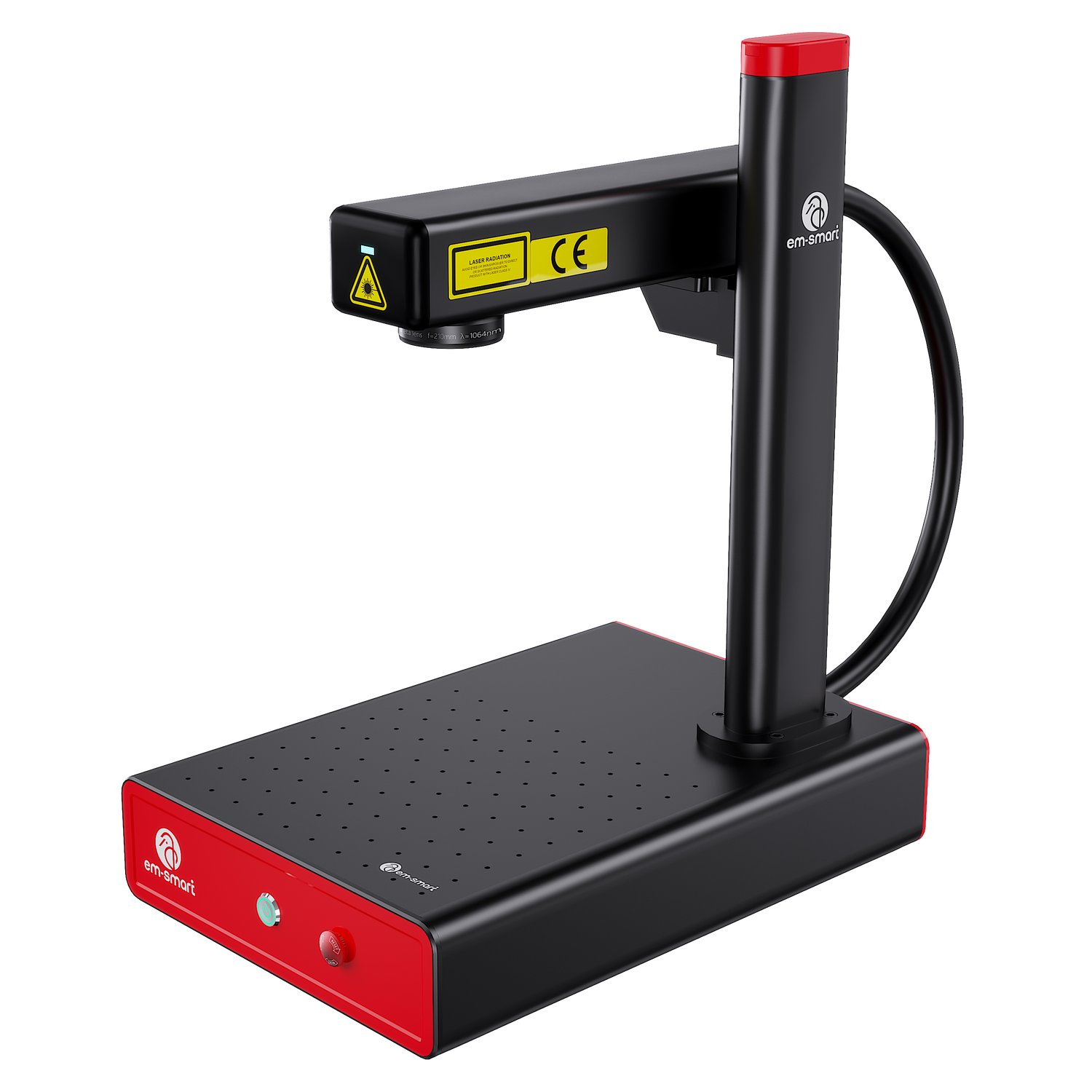

EM-Smart Super - 30W/50W - MAX Fiber Laser Engraver with/without Rotary
EM-Smart Super - 30W/50W - MAX Fiber Laser Engraver with/without Rotary - Super / Super 30 (30W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fast Delivery and Free Shipping
2-Years Warranty
CE, FDA, RoHS, SGS, ISO9001 Certified
Safe & Secure Checkout
Global Shipping
We offer free air freight worldwide. Orders ship within 24-48 hours after payment (excluding stock issues). You'll receive email updates and can contact sales@em-smart.com for order status.
Delivery Time
Estimated delivery takes 5-14 business days. We handle any shipping issues that arise.
Order Tracking
You may track your parcel via this site (https://www.17track.net/en/) or through customer service emails.
Customs & Duties
Duties depend on your country's regulations (buyer's responsibility). We offer DDP (Delivered Duty Paid) option at checkout to avoid duties.
Warranty
We provide a 2 years warranty for all EM-Smart laser machines. Besides, we also provide technical support services including live chat, email, phone call, video call, remote control, spare parts, field maintenance and repair (If a local distributor is available).
Certified to Meet Industry and International Stan
Currenty, we accept most global payment methods including PayPal, Credit Cards (Visa, Master, etc.), bank transfer and installment. These options will appear when you submit your order, and you can choose any of them.
Feature 1:

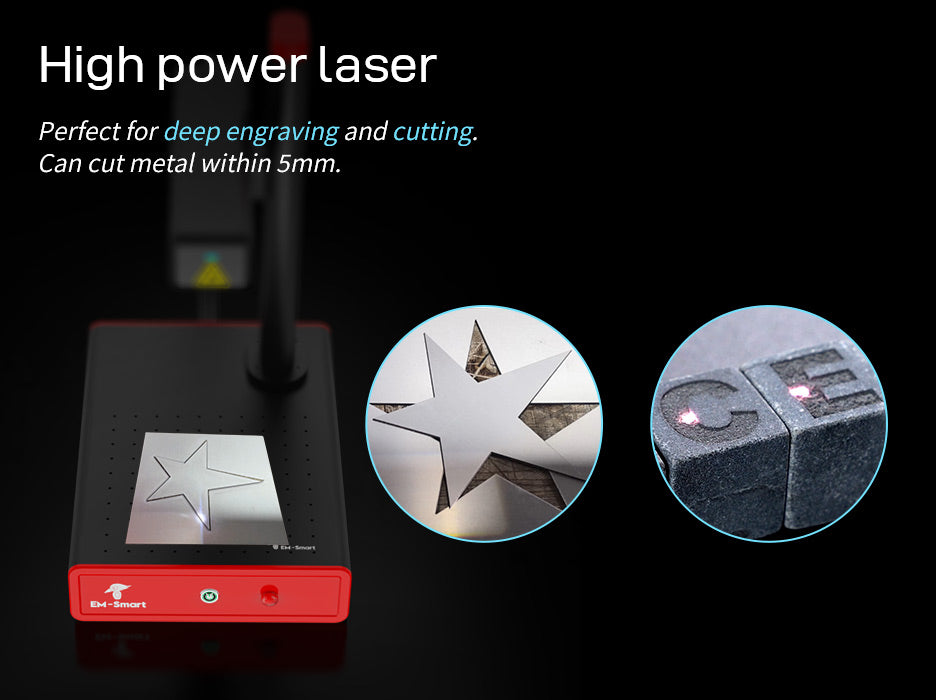

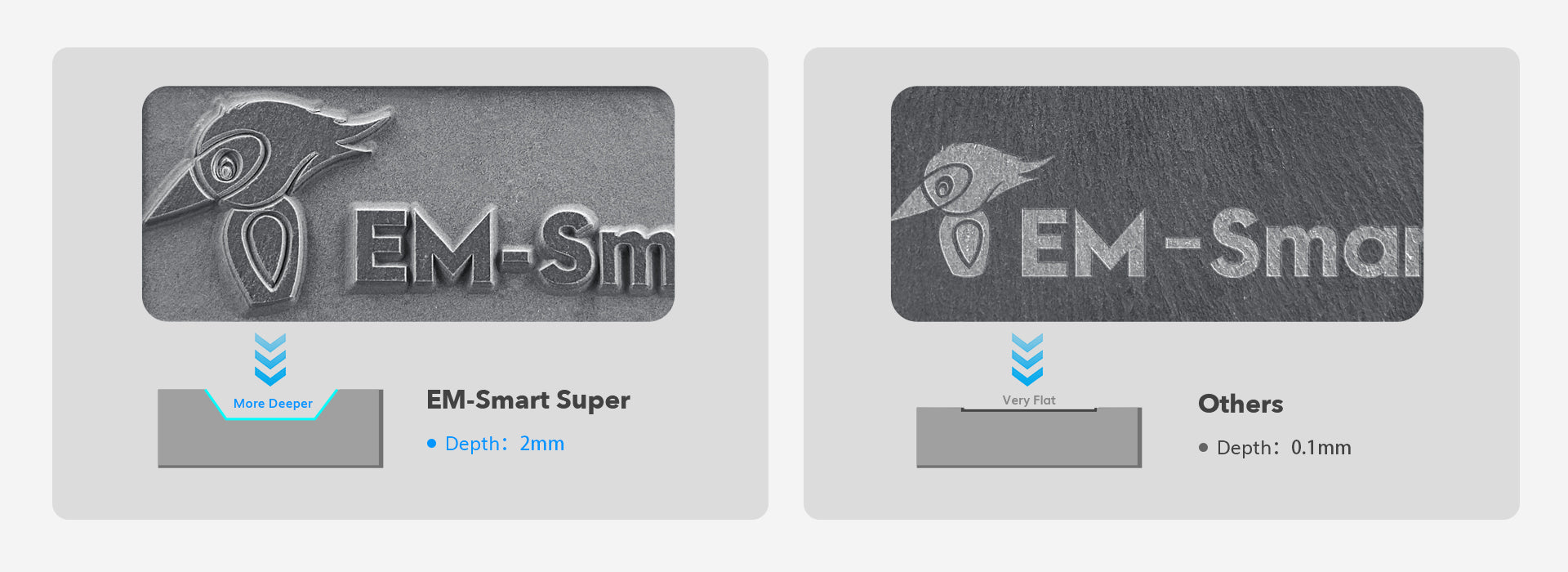

DEEP ENGRAVING AND CUTTING
Unlocking new possibilities with an industrial-grade laser source, boasting high power capabilities that allow for deep engraving and precision cutting.
Feature 2:

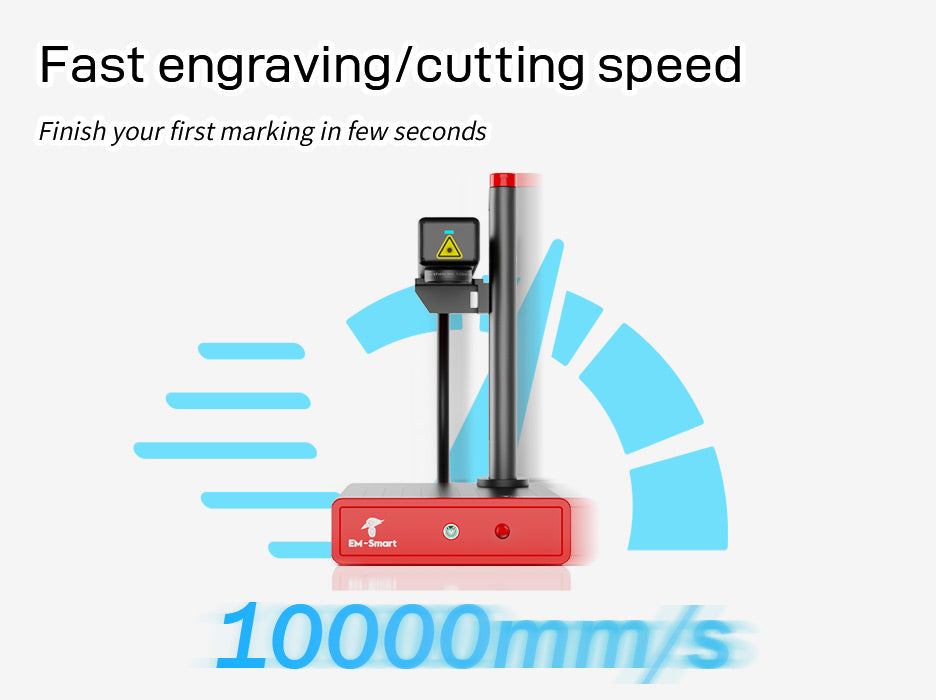

HIGHER SPEED 10000MM/S
With 30w/50w MAX industrial laser source, EM-Smart is 5+ times faster than its competitors, allowing you to complete tasks that previously took minutes in just seconds. Bring your masterpieces to life in a blink of an eye.
Feature 3:

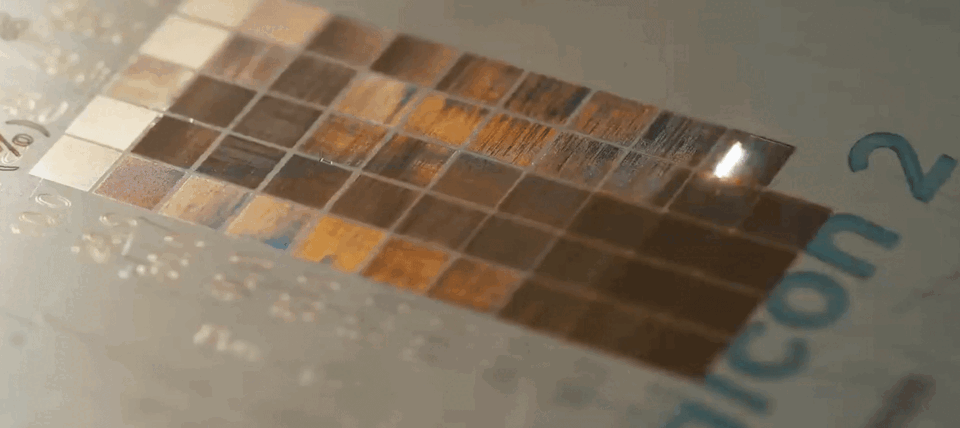

MOTION ACCURACY: ±0.002MM
EM-Smart laser engraver provides high accuracy engraving with its industrial-grade laser source, professionally customized galvo and F-Theta lens, allows for a leap in engraving accuracy.
Feature 4:

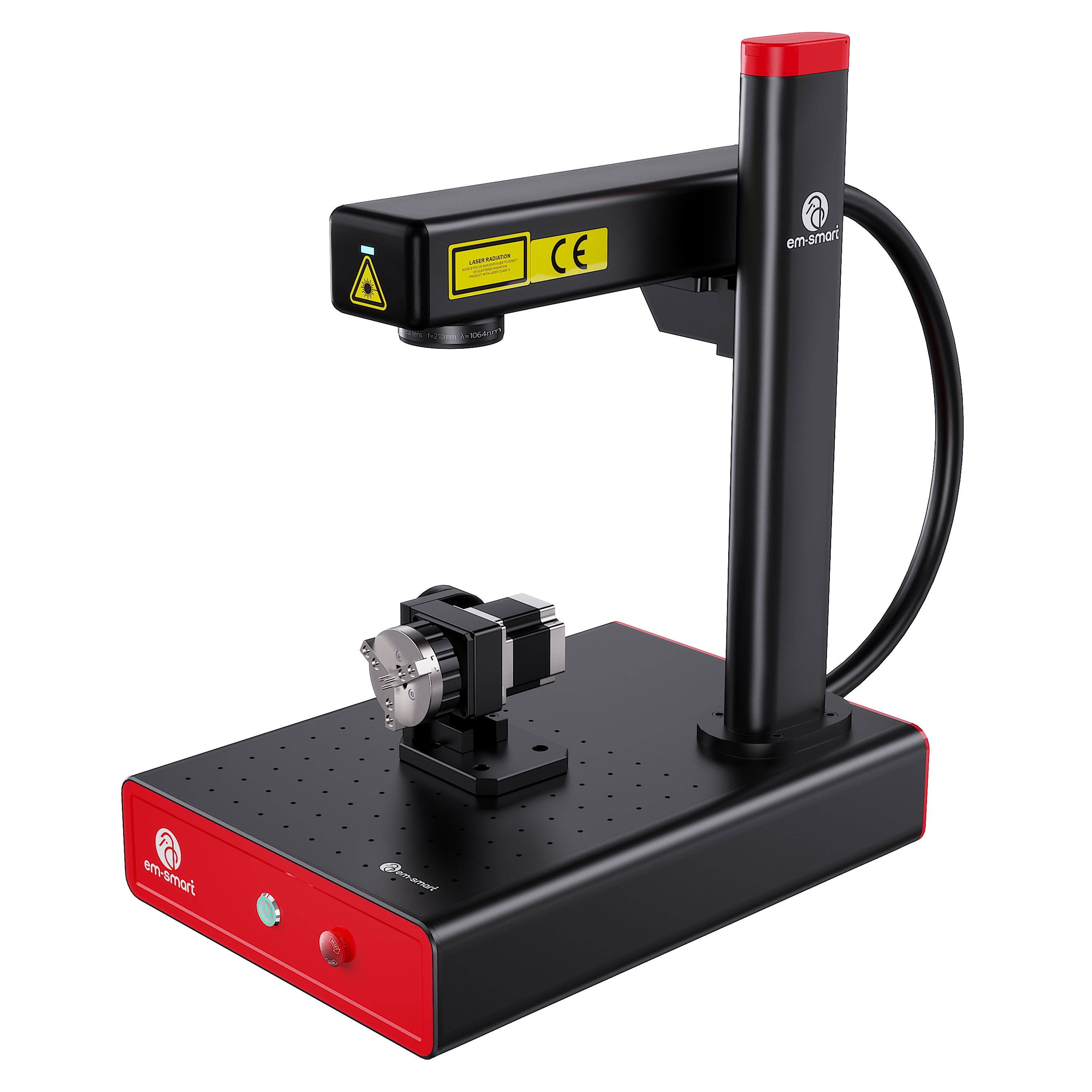

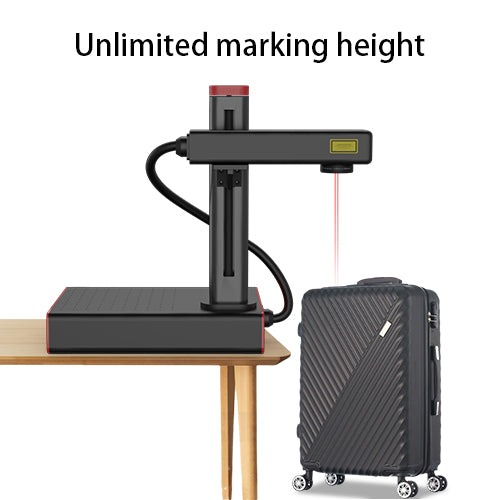

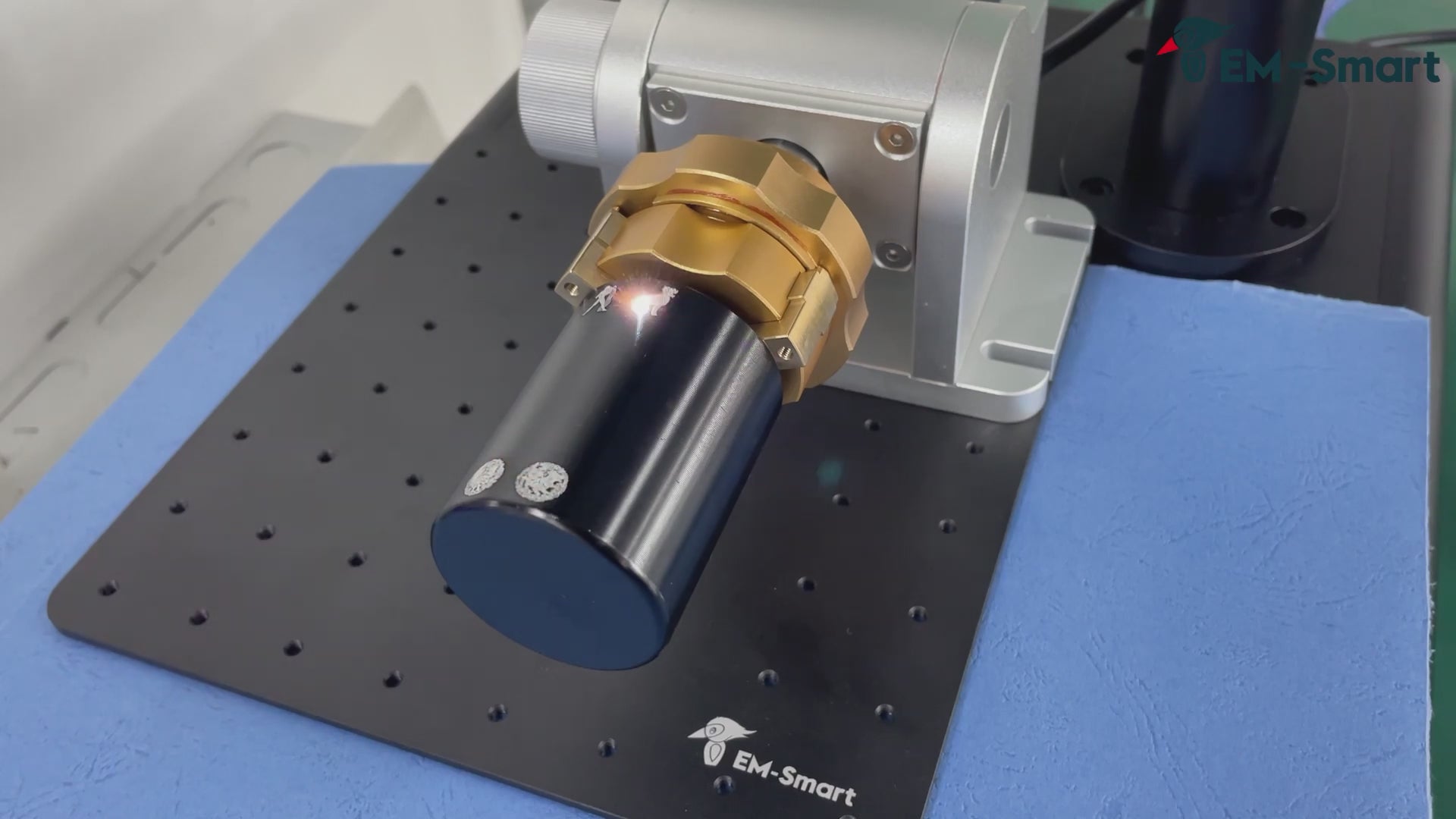

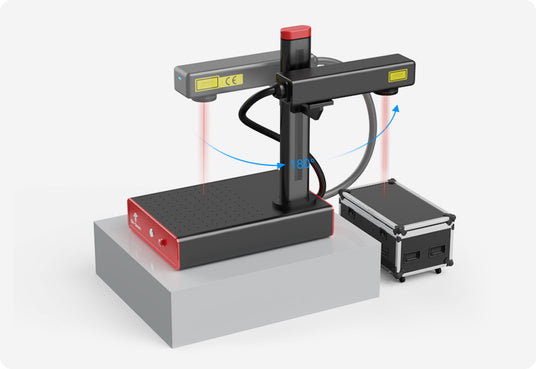

Unlimited Marking Height
200mm default marking height meets your demand for engraving most common items, while the limitless marking height achieved through rotation provides you with more space and possibilities.
Feature 6:

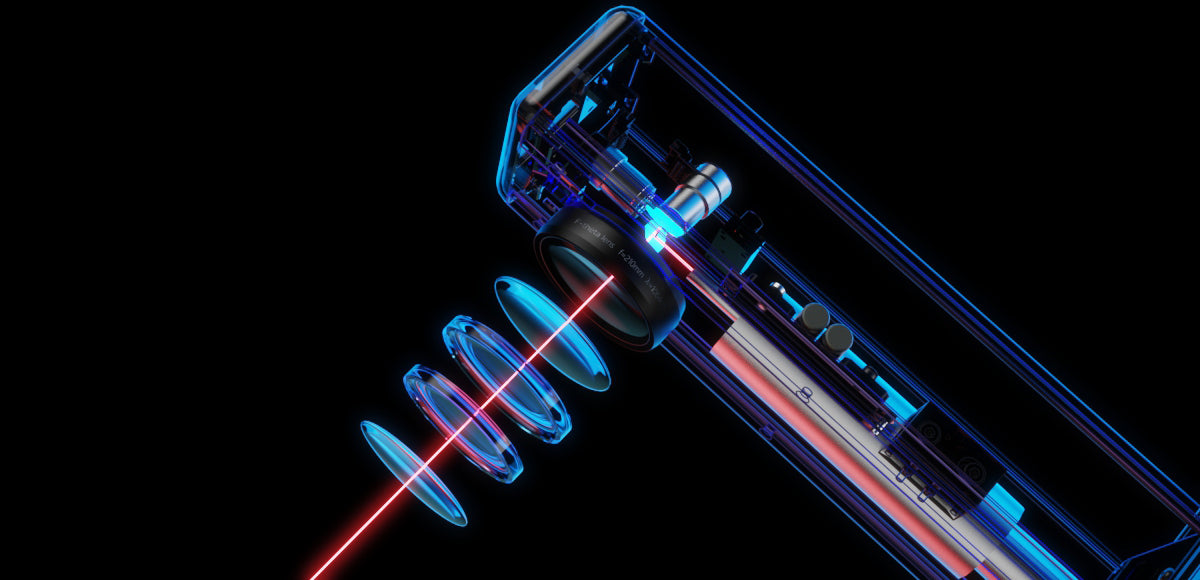

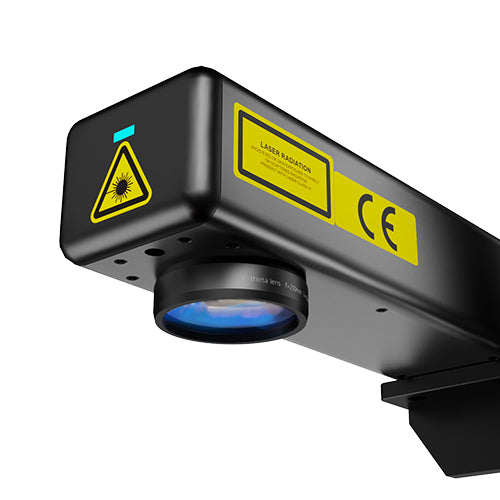

Galvo Scanning System
EM-Smart laser engraver uses glass fibers, population inversion and an amplifier module to create a stronger, faster-moving laser output. Industrial grade customized galvo scanning system and F-Theta lens make it achieve high accuracy engraving and HD 8K resolution.
Feature 8:

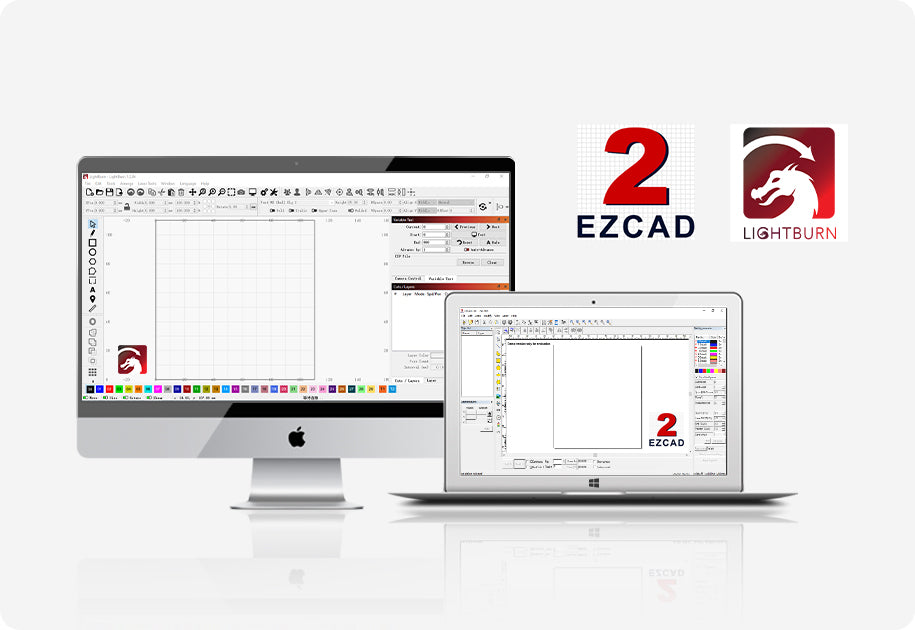

EZCAD & LightBurn
All EM-Smart lasers come with customized BJJCZ laser marking board, they are compatible with both Ezcad & LightBurn to spark every ideas, and you can use your EM-Smart on Windows, MAC, Linux.
What Youtubers Say
Specs
| Model | EM-Smart Super30 (30R) | EM-Smart Super50 (50R) |
| Laser Source | MAX | |
| Laser Type | Fiber laser | |
| Output Power (W) | 30W | 50W |
| Marking Speed (mm/s) | 0-10000 | |
| Standard Marking Field (mm) | 110*110(70*70/150*150/175*175) | |
| Maximum Marking Height (mm) | 200 | |
| Laser Wavelength (nm) | 1064 | |
| Beam Quality (m²) | ≤1.6 | |
| Motion Accuracy (mm) | ±0.002 | |
| Minimum Character (mm) | 0.01 | |
| Minimum Line Distance (mm) | 0.01 | |
| Repeat Pause Frequency Range (KHz) | 20-60 | |
| Operation Temperature (℃) | 10-42 | |
| Storage Temperature | -10 to +60 | |
| Cooling Method | Air Cooling | |
| Lifespan (Hours) | 100,000 | |
| Net Weight (Kg) | 14 | |

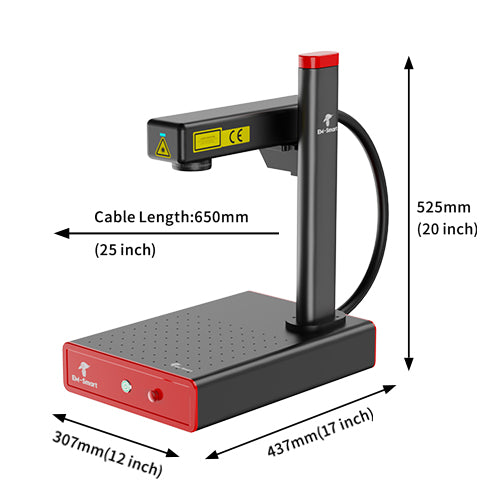

| Dimension (L*W*H*T mm) | 435*305*545*90 | |
| Package Size (L*W*H mm) | 760*540*170 | |
| Supply Voltage (V) | DC24V | |
| Power Consumption (W) | ≤140 | ≤200 |
| PC Connection | USB Cable | |
| Certificate | CE, FDA, RoHS, SGS, ISO9001 | |
| Color Available | Black+Red | |
| Deep Engraving | Y | |
| Cutting Function | Y | |
| Rotary Function | N (Y) | |
| Lens Replacement | Y | |
| Thermal Protection | Y | |
| Emergency Stop | Y | |
| Design | Quick Set-Up + High Power + Unlimited Marking Height | |
| Marking Software | EZCAD/LightBurn (License Required) | |
| Marking Format | text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code, qr code, serial number, date code, time code, TCP/IP communication, serial communication, file, sql database, etc. | |
| Language | Chinese (Tradition & Simplified), English, Japanese, Korean, Spanish, Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish…Up to 24 Languages | |
| Operating System | Windows & MAC & Linux | |

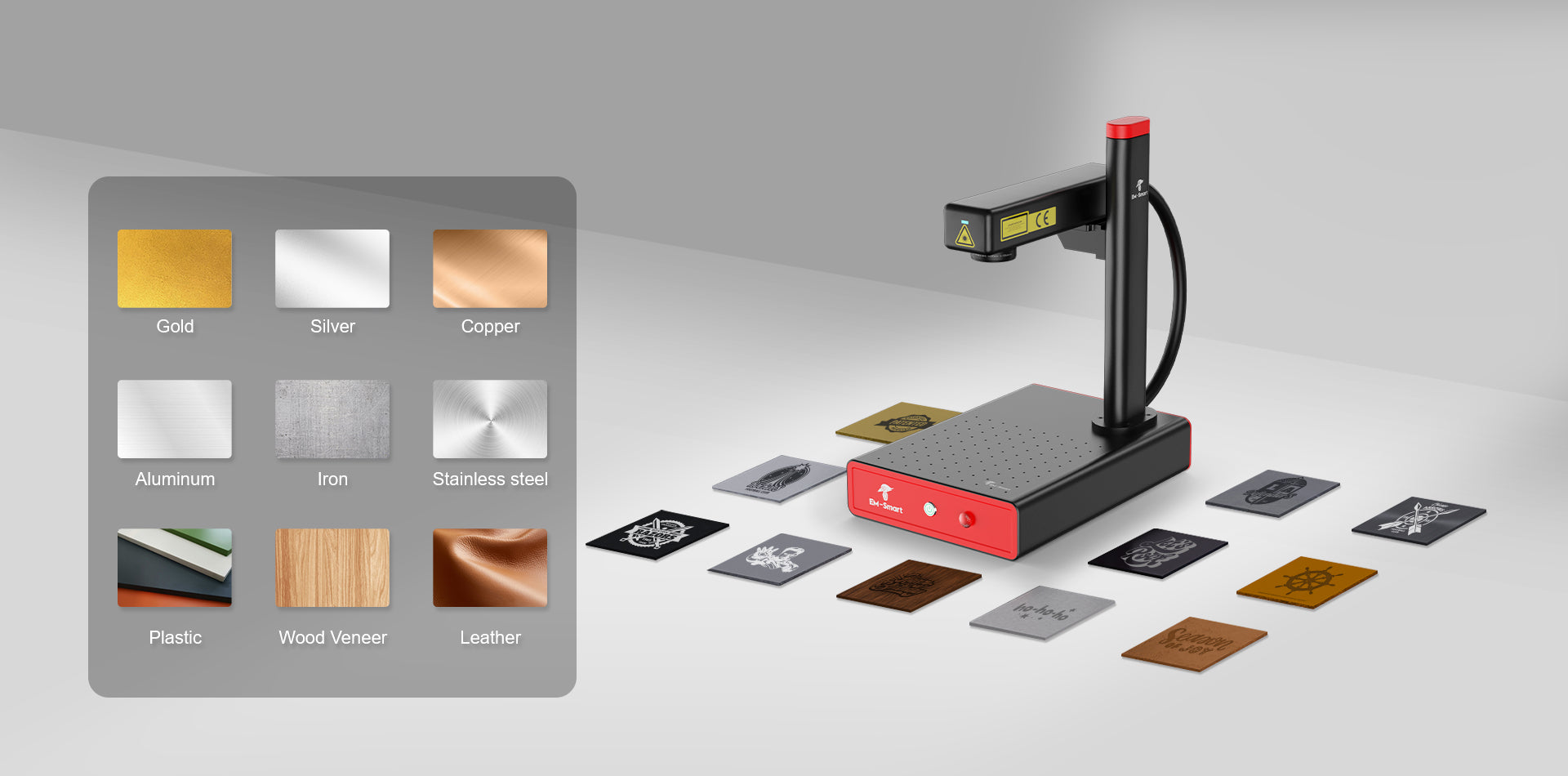

| Applicable Material | Metal, Plastic, Leather, Slate, Stone, Rubber, Coated Wood, etc. |
|
