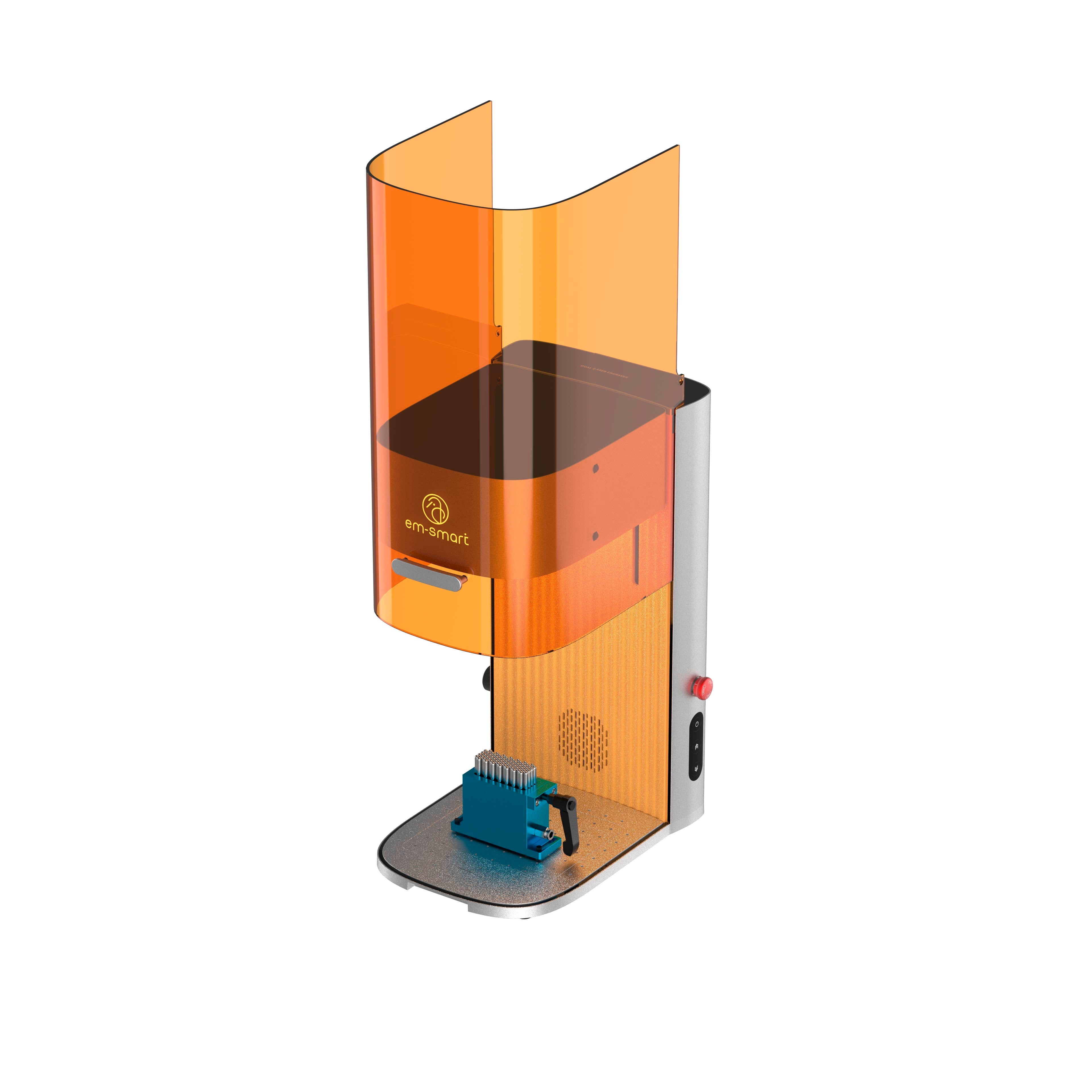

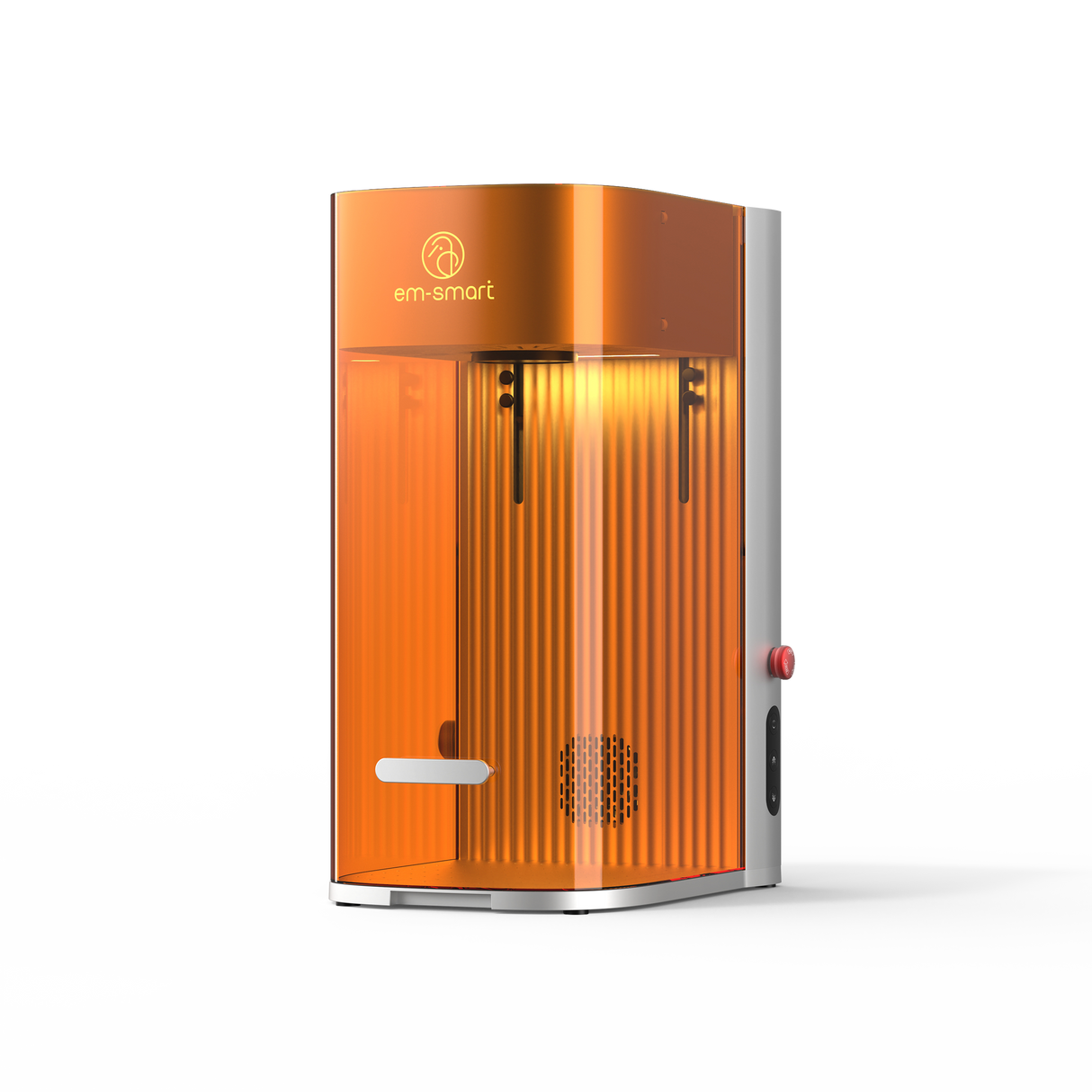

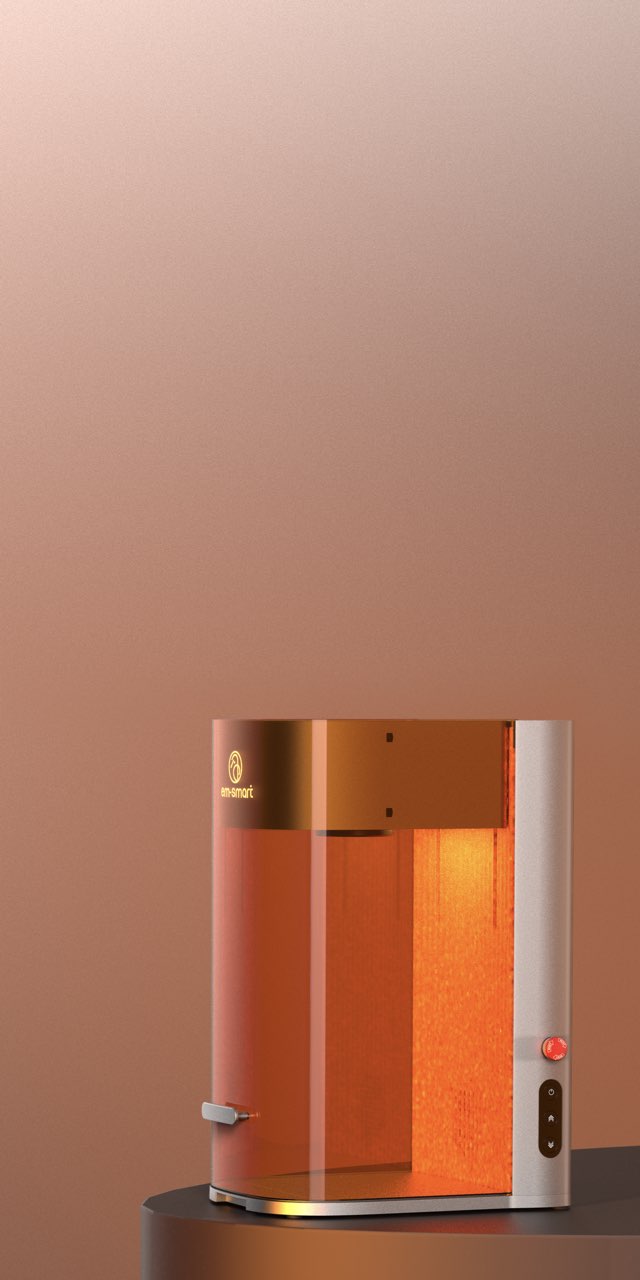

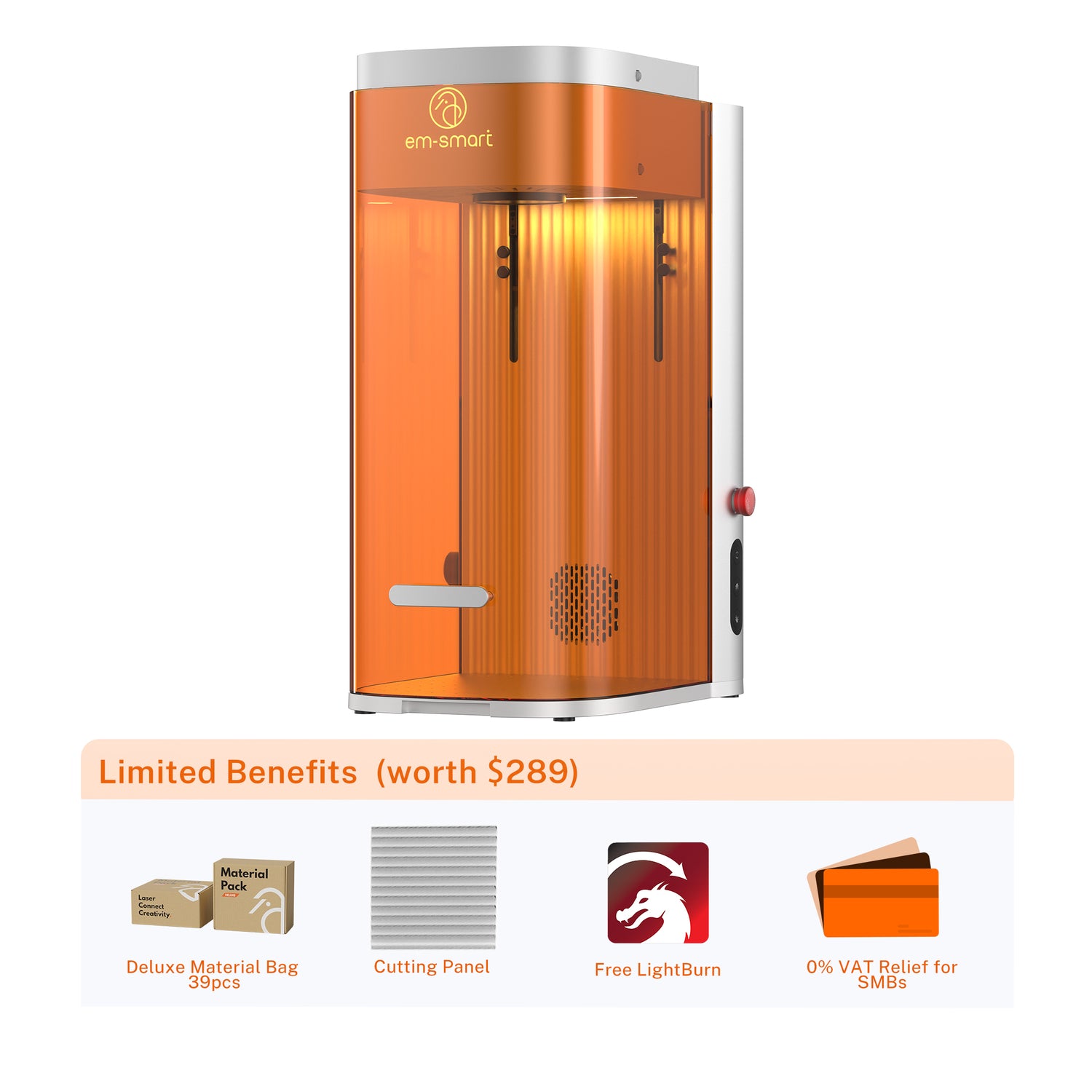

em-smart Dual SE 20W Fiber + 20W Diode Desktop Laser Engraver

Regular price $3,629.00
Sale price $3,629.00 Regular price $5,099.00

Dual SE Highlights

Why the Media Trusts em-smart?

em-smart Laser Marker Technical Specifications

Specifications

Models

em-smart Dual 2
Buy Now
em-smart Dual SE
Buy Now

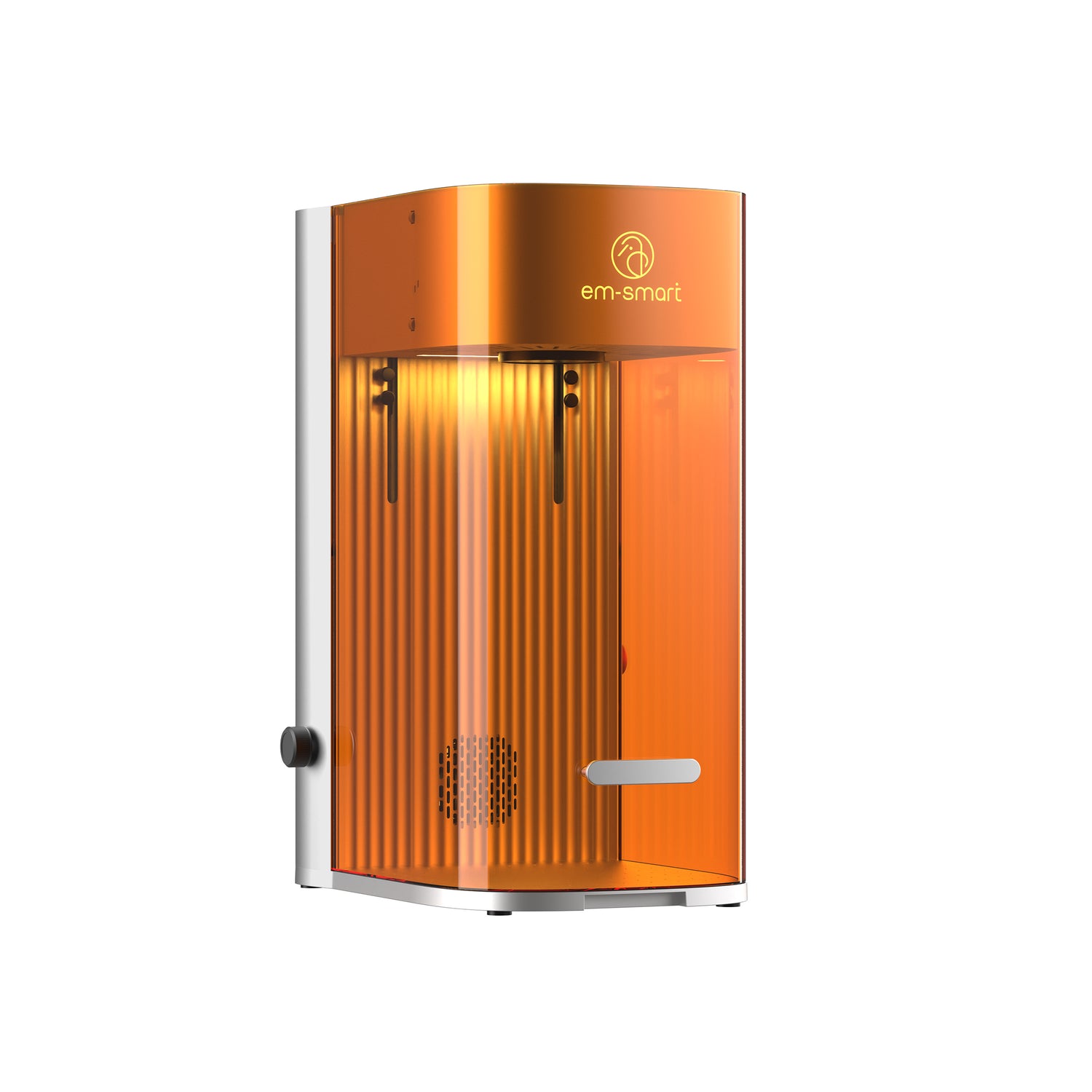

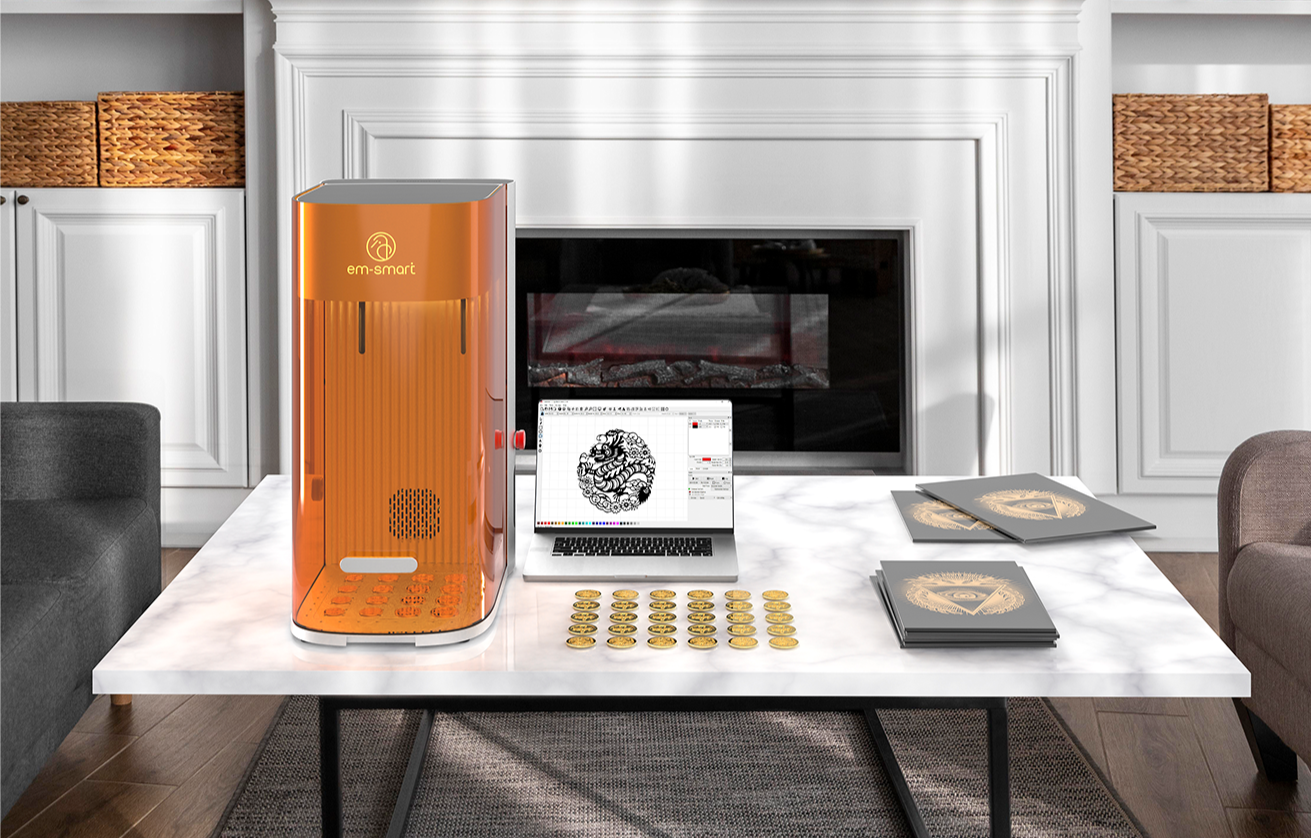

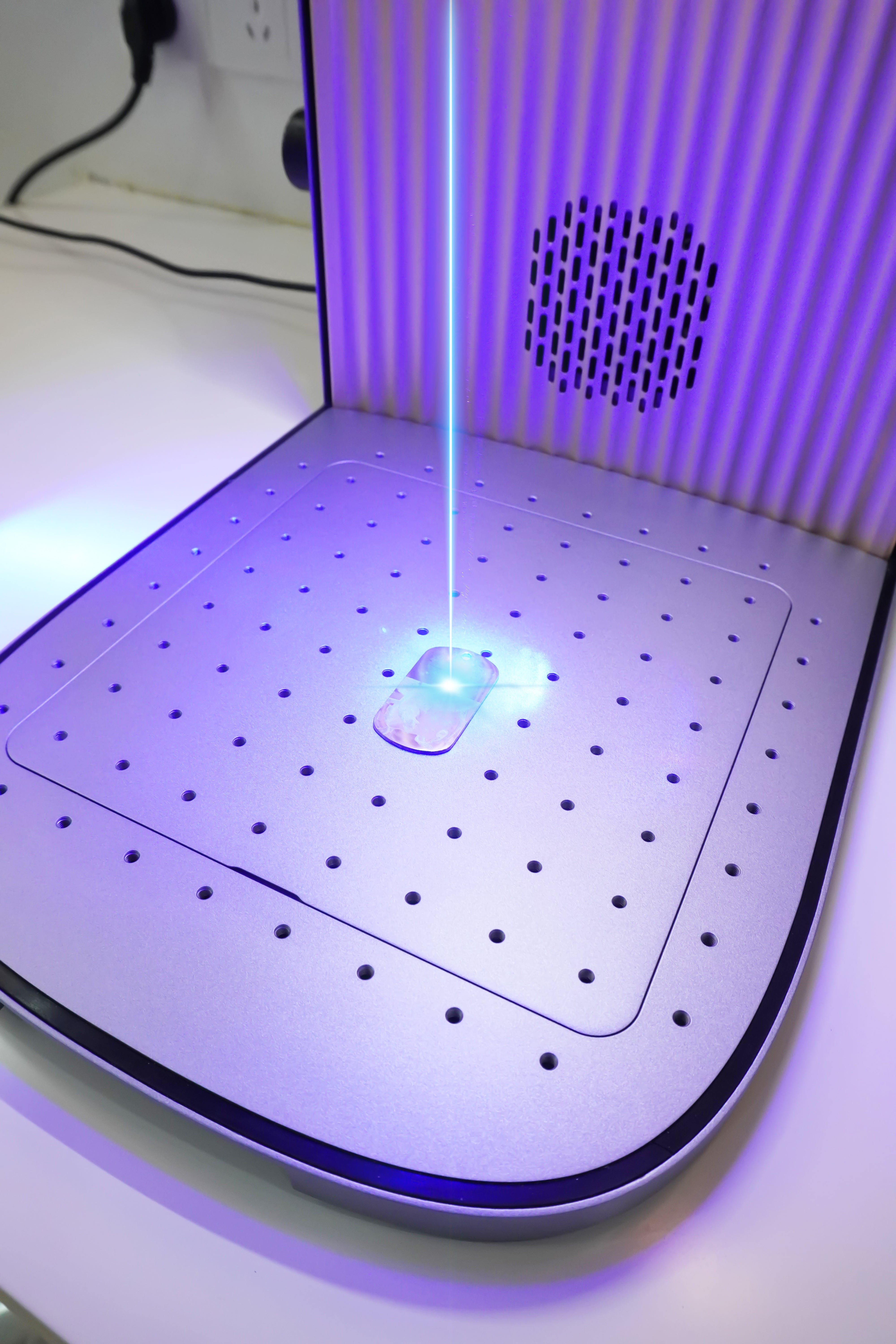

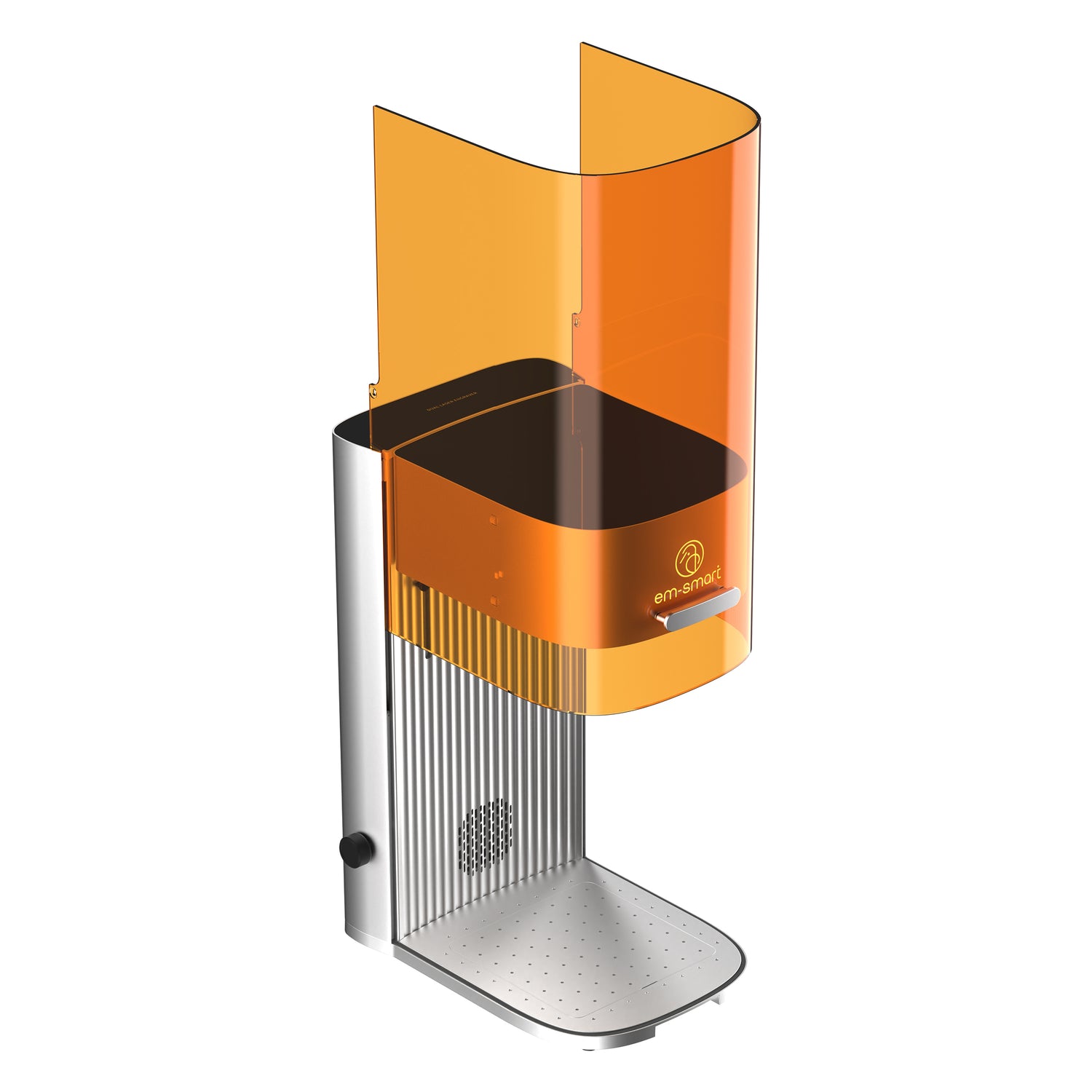

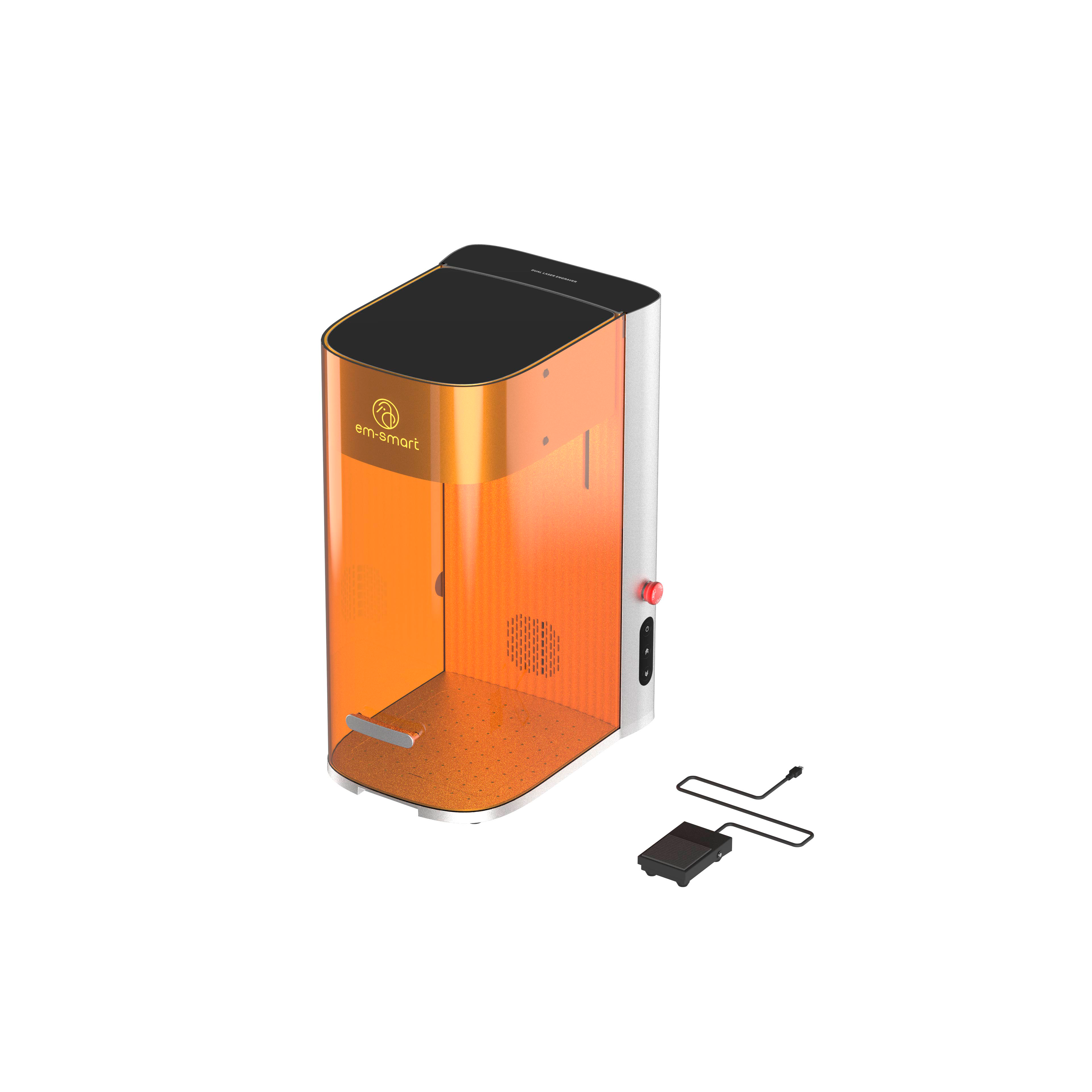

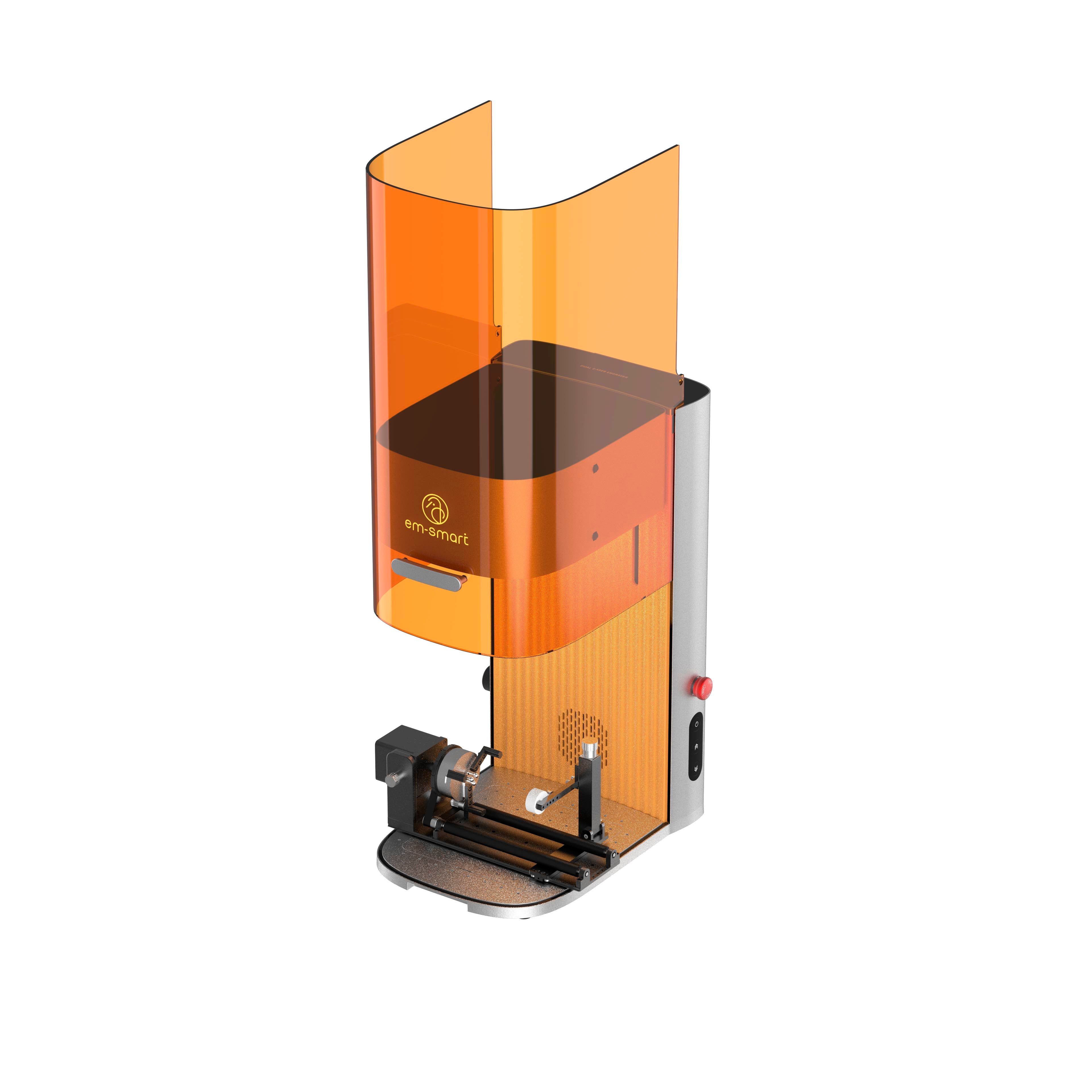

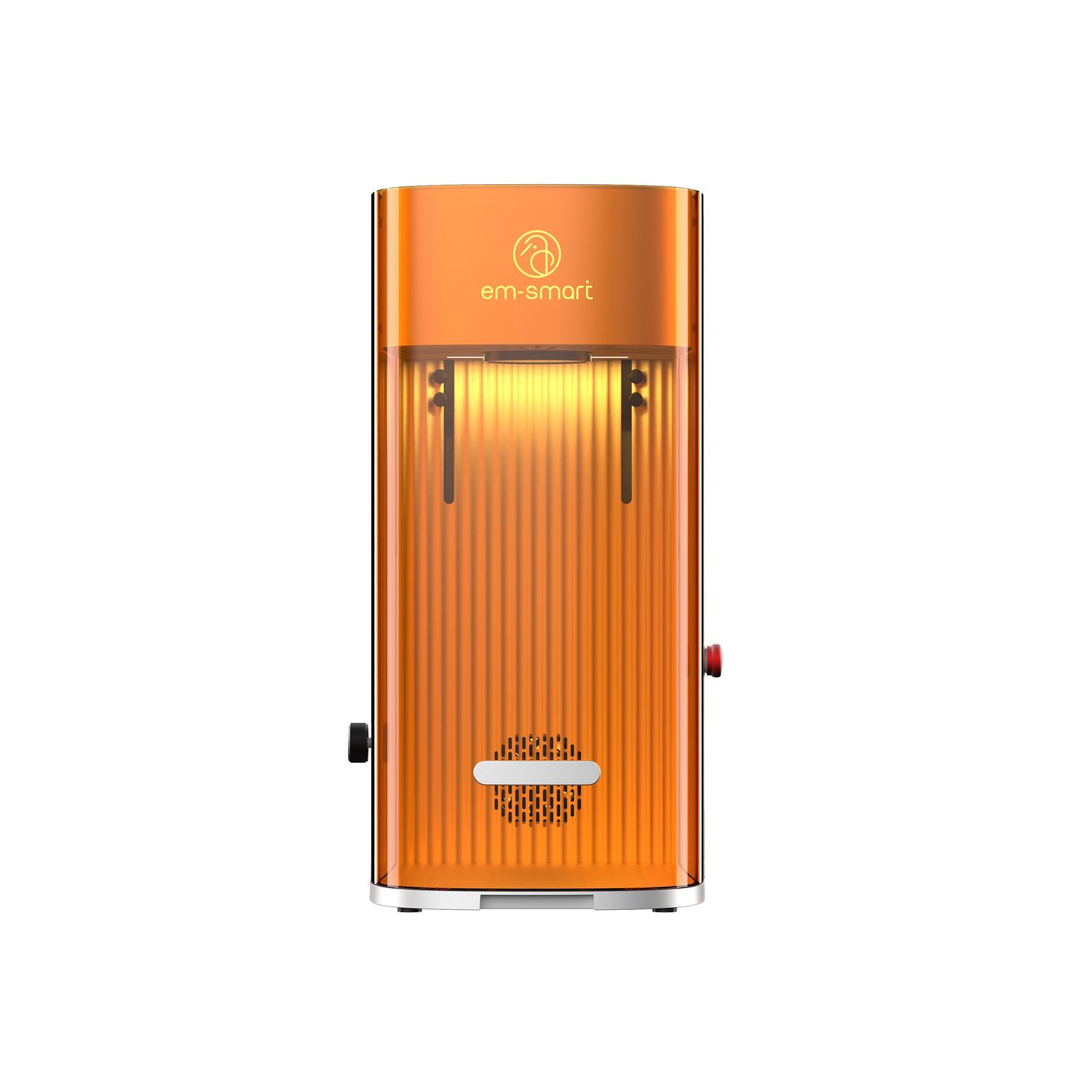

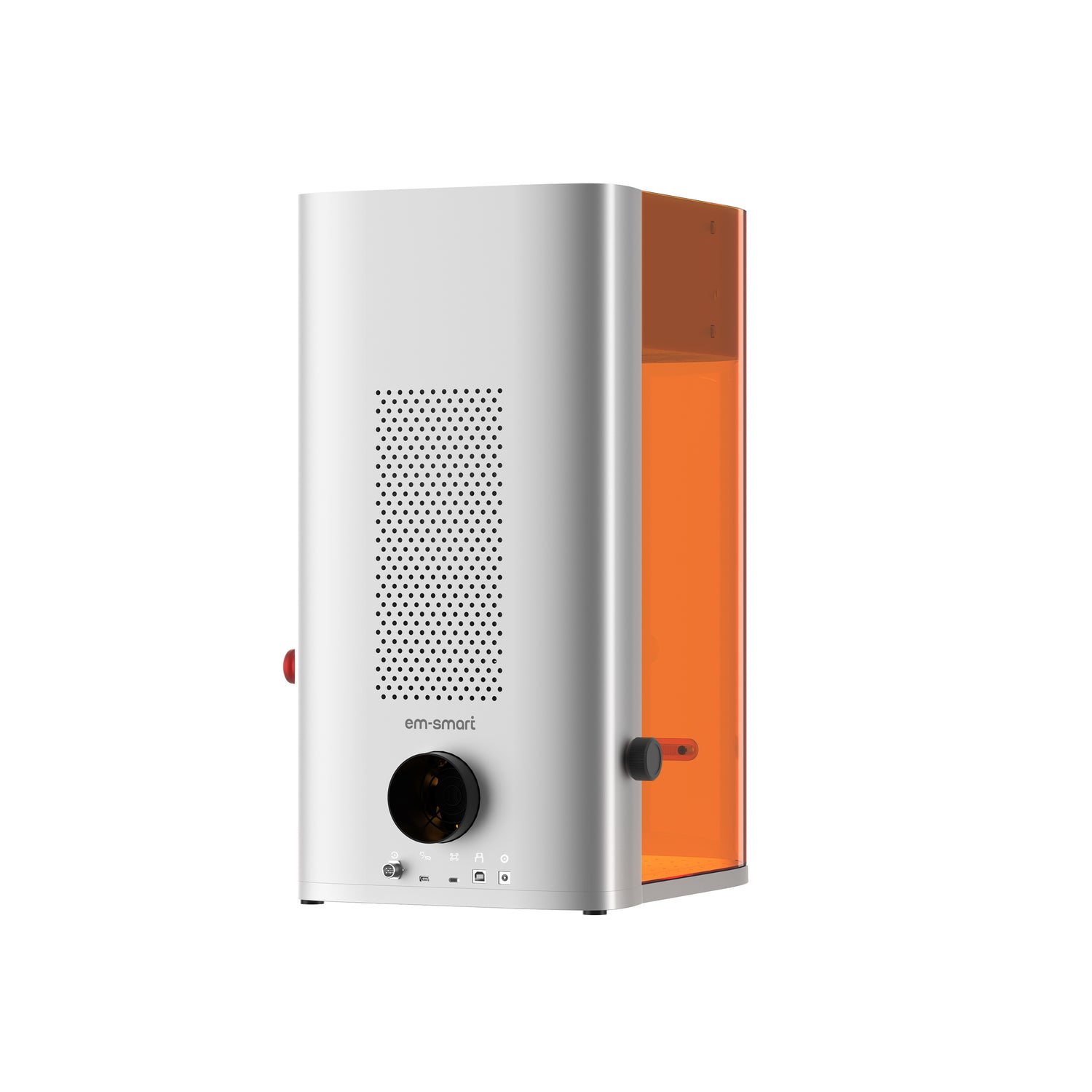

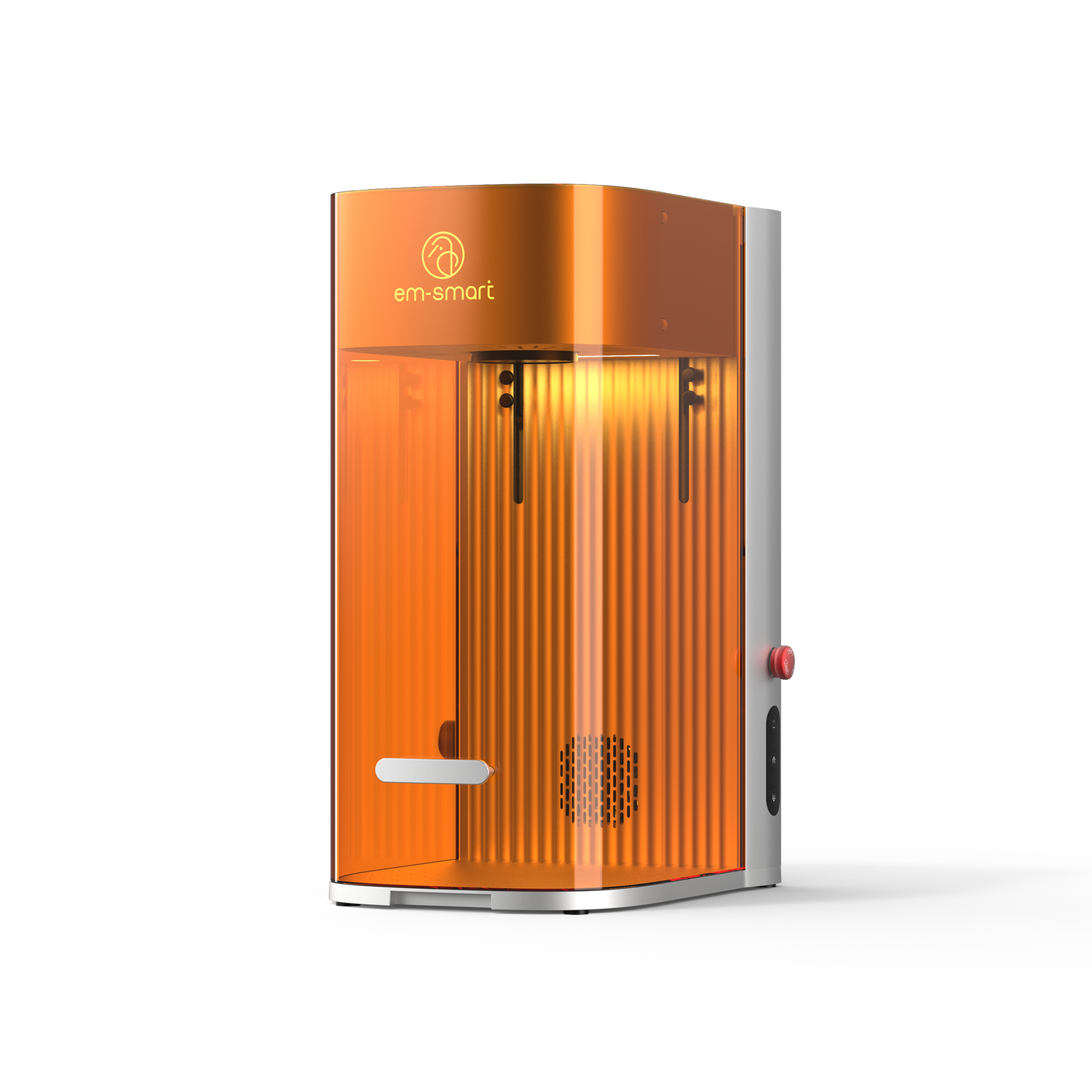

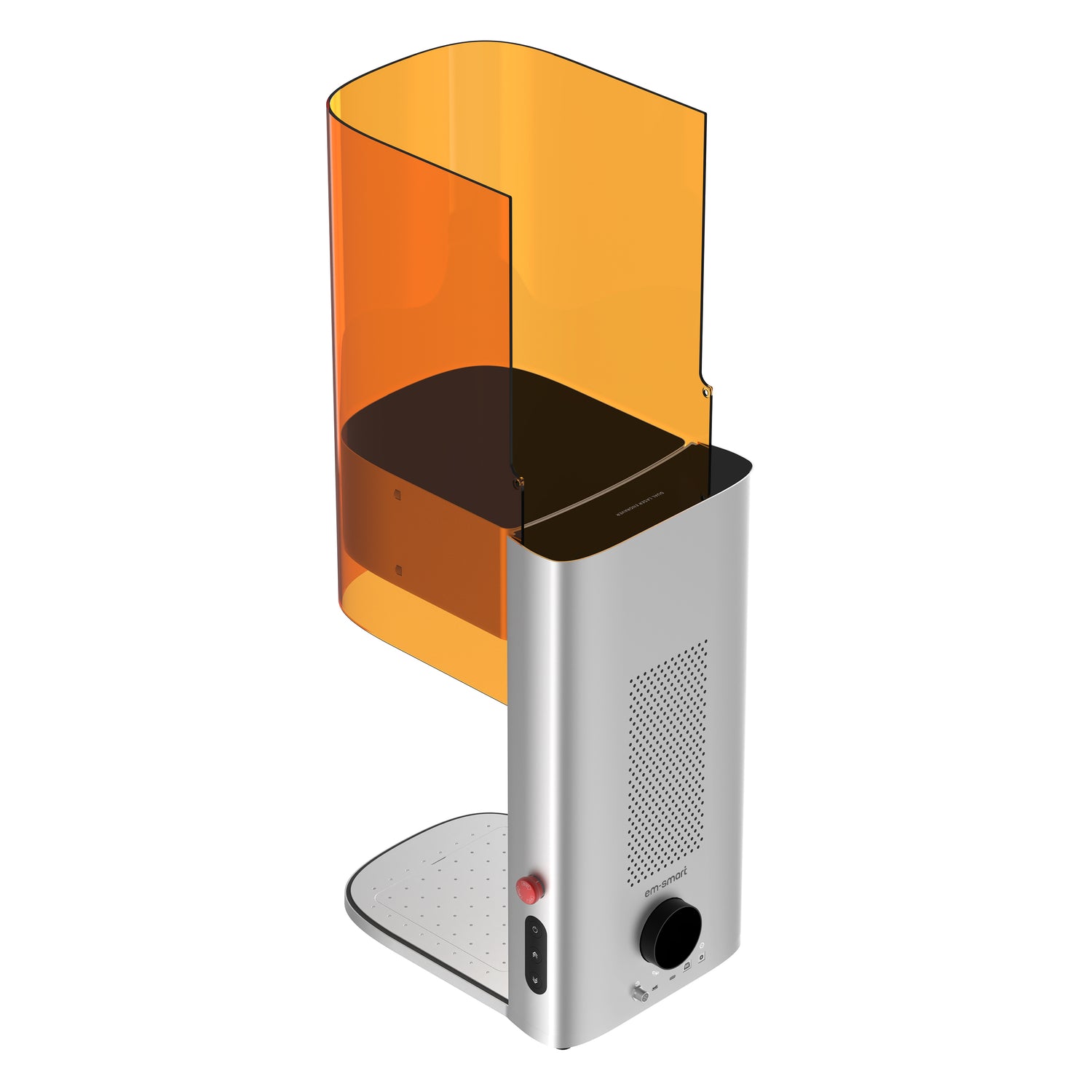

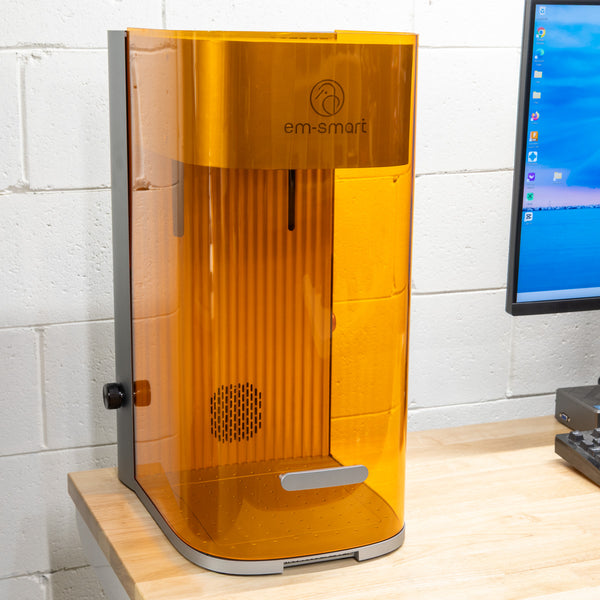

Machine's Images

Laser Parameters

Laser Power
30 W Fiber(Mopa) + 20 W Diode
20 W Fiber + 20 W Diode
Laser Wavelength
1,064 nm + 455 nm
1,064 nm + 455 nm
Beam Quality(M²)
≤1.6
≤1.6
Frequency Range
27-62 kHz
27-62 kHz

Marking Parameters

Marking Speed
15,000 mm/s
15,000 mm/s

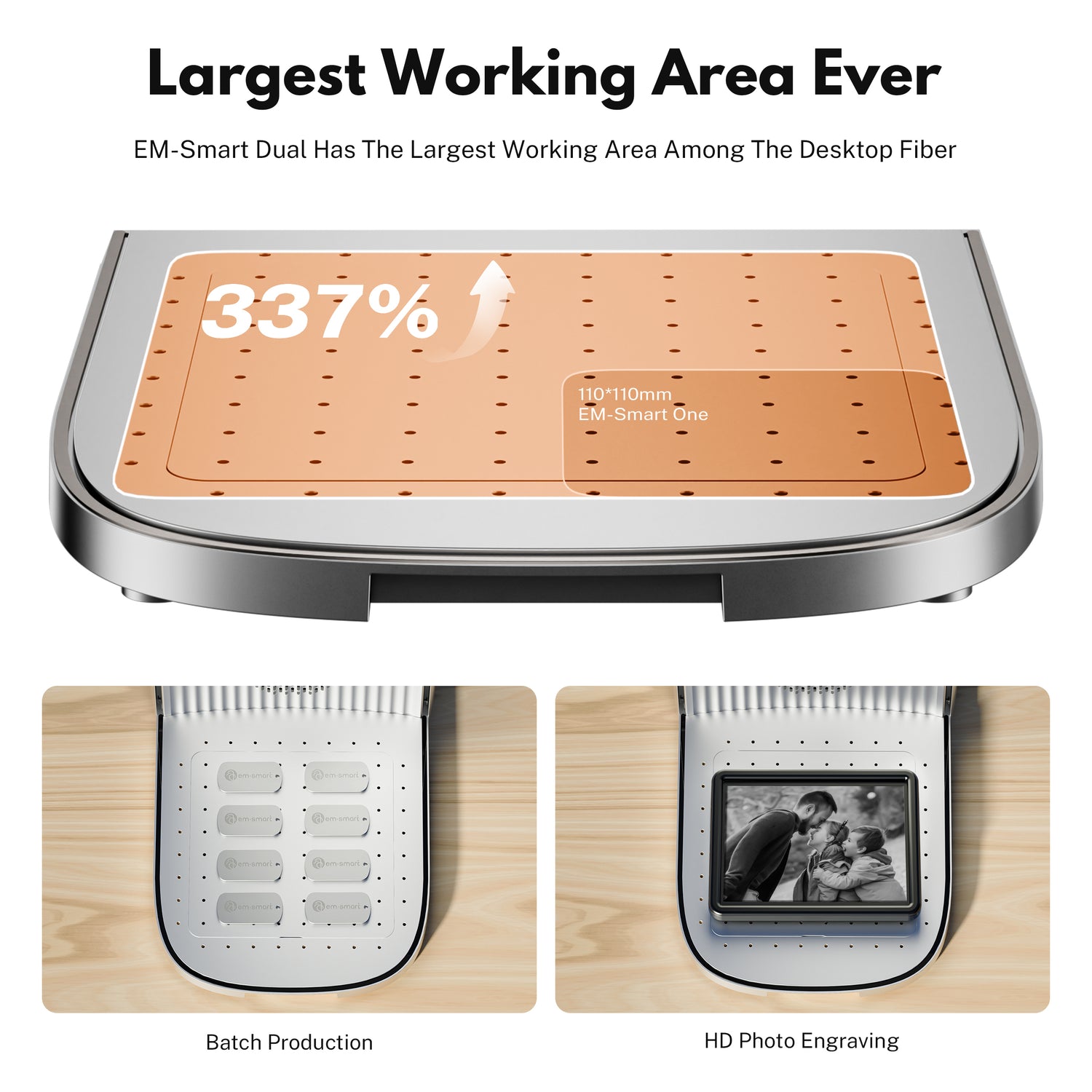

Marking Field(mm)
200*200
150*150
Maximum Marking Height
165 mm
150 mm
Working Distance
334 mm
255 mm
Motion Accuracy(mm)
±0.001
±0.001
Minimum Line Distance
Fiber(Mopa) 0.065 mm
Diode 0.1 mm
Fiber 0.04 mm
Diode 0.08 mm
Power Stability (8 h)
<±1% rms
<±1% rms

Machine Dimensions

Field Lens
F290
F225
Camera Clarity
-
8 MP
Net Weight
18.25 Kg
16.4 Kg
Packaging Weight
25.5 Kg
23.65 Kg
Machine Size(L*W*H mm)
293*399*585
293*399*485
Package Size(L*W*H mm)
375*535*665
370*535*570

Operating Parameters

Operating Temperature
50-107.6 °F
50-107.6 °F
Storage Temperature
14-140 °F
14-140 °F
Cooling Method
Air Cooling
Air Cooling
Supply Voltage
DC 24 V / 7.5 A
DC 24 V / 7.5 A
Input Power
≤180 W
≤180 W
PC Connection
USB Cable
USB Cable

Supported Features

Deep Engraving
Cutting
Safety Switch
Emergency Stop
Light-On Alert
X
Applicable Materials
Metal materials (stainless steel, aluminum, copper, iron, zinc alloy), non-metal materials (acrylic, rubber sheet, wood panel, PVC sheet, PP sheet, ABS sheet, PC sheet, cardboard, fabric, painted wood, stone slab, stone panel).

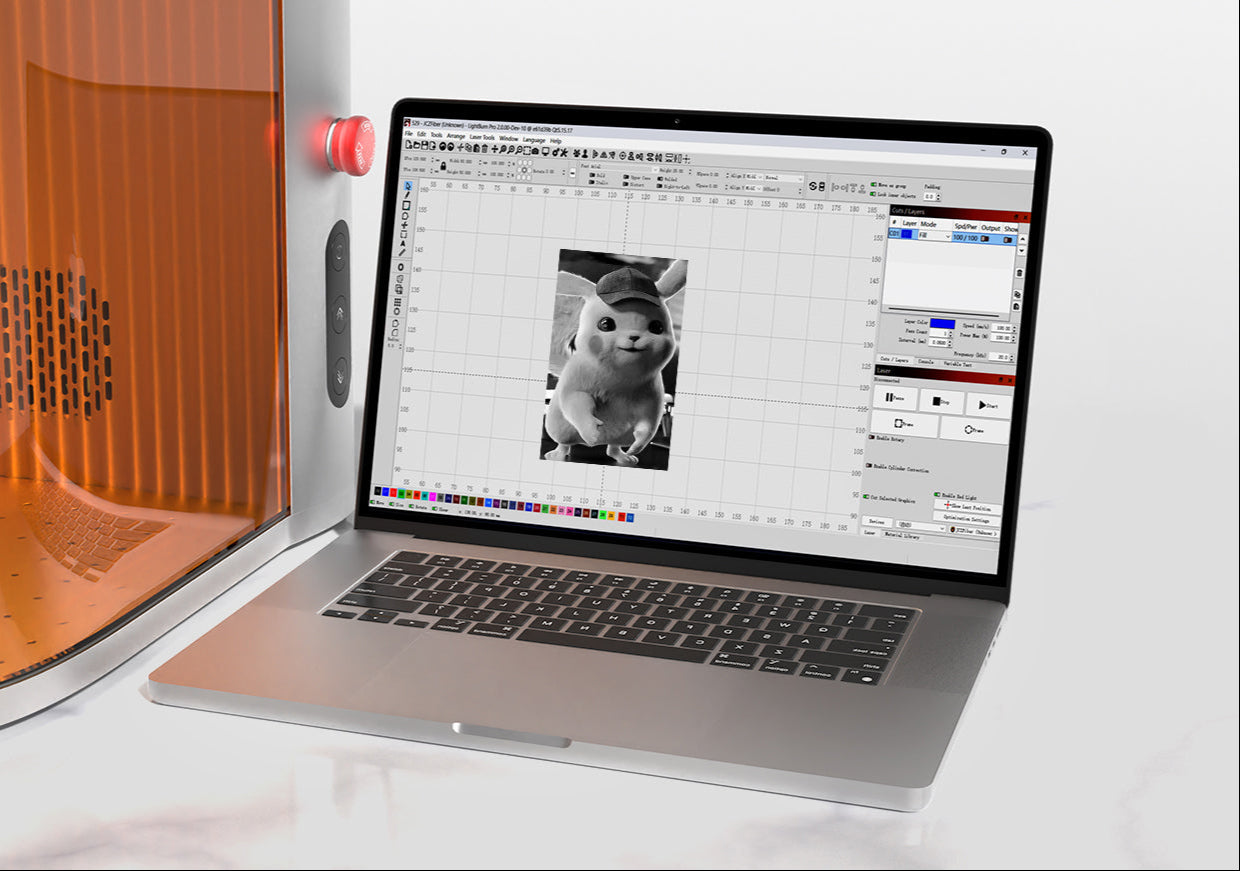

Software Compatibility

Marking Software
LIGHTBURN
File Formats
bmp/jpg/jpeg/png/gif/tif/tiff/tga/webp/ai/pdf/sc/dxf/gc/gcode/nc/hpgl/plt/rd/scpro2/svg/lbrn/mage
Software Languages
Simplified Chinese, Traditional Chinese, English, French, German, Russian, Japanese.
Operating System
Windows & MAC

Others

Certification
IEC60825-1, FDA, CE-EMC, FCC-SDoc
Warranty
1 Year

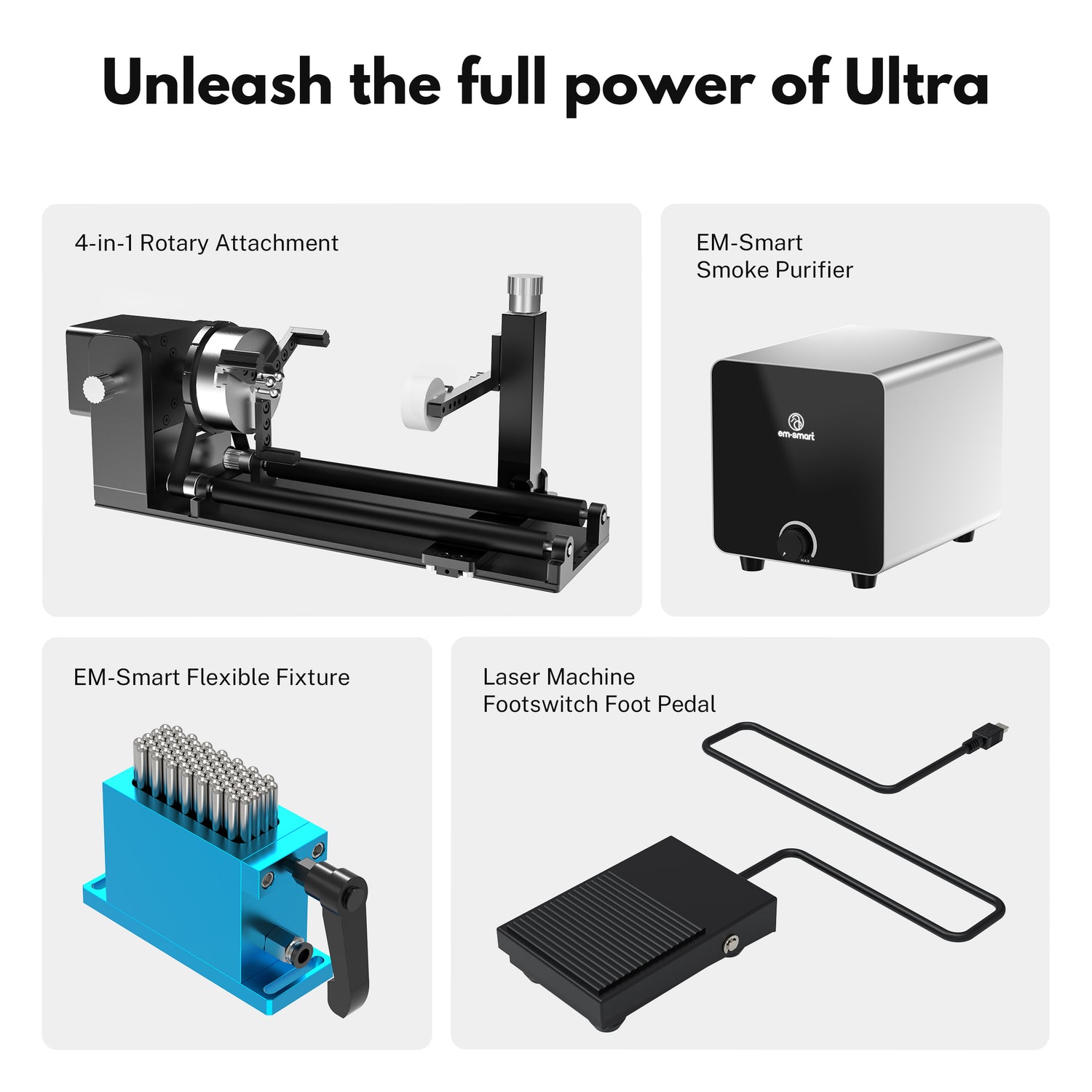

Standard Accessories
Laser safety goggles, cutting tray, L-shaped positioning bar, computer cable, camera cable, DC 24 V 7.5 A power adapter, power cord, lens cleaning paper, USB flash drive, 2.5 mm hex wrench, material kit.
