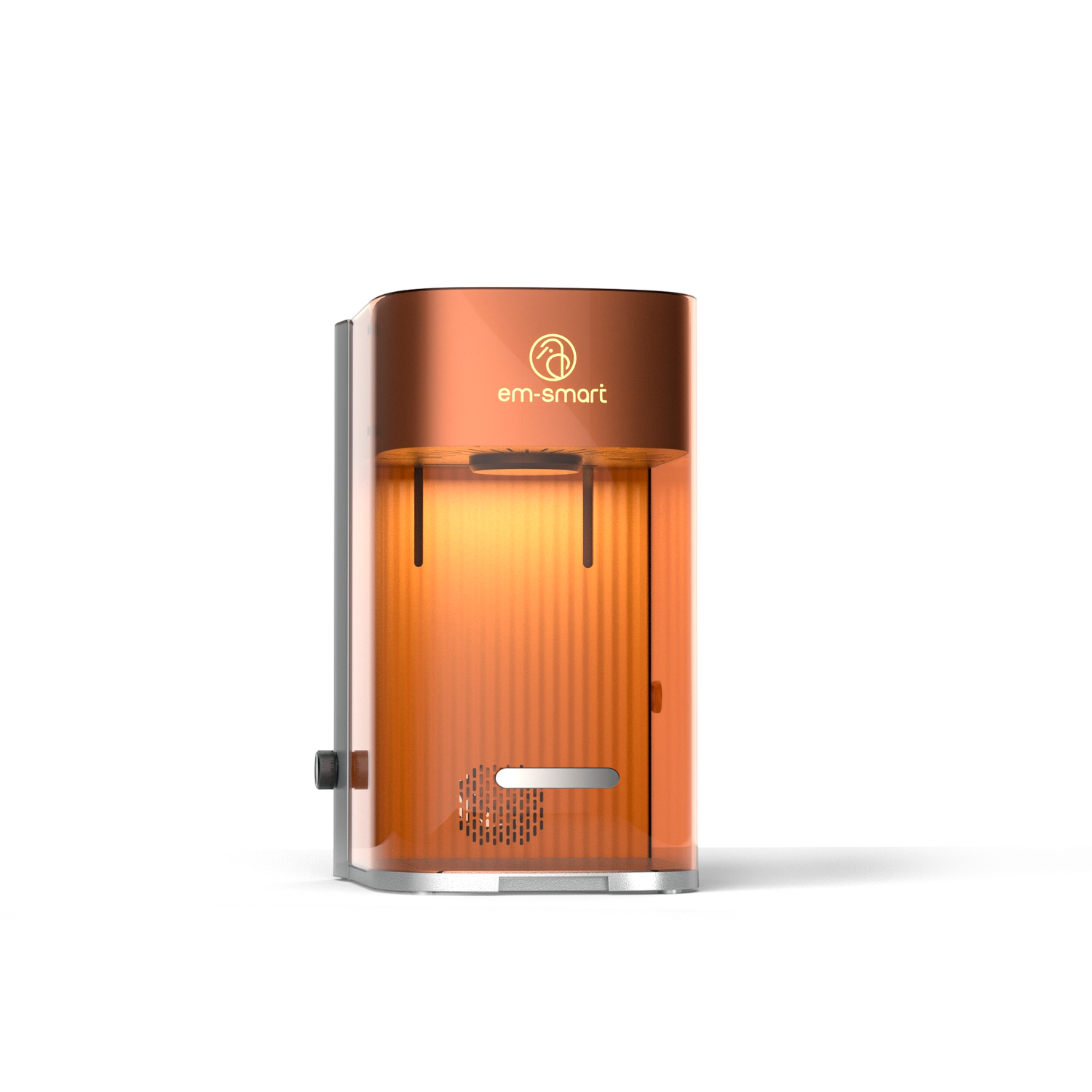

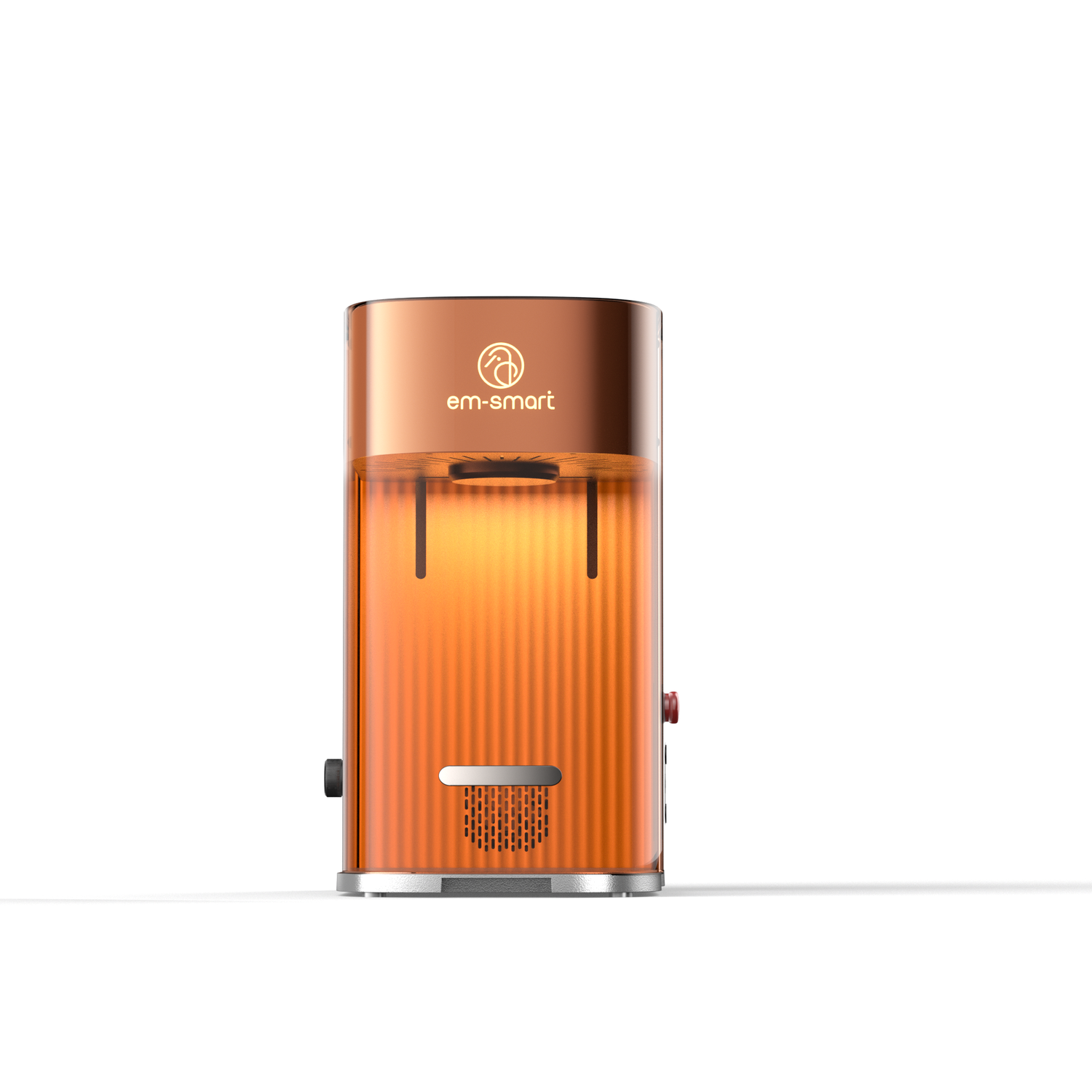

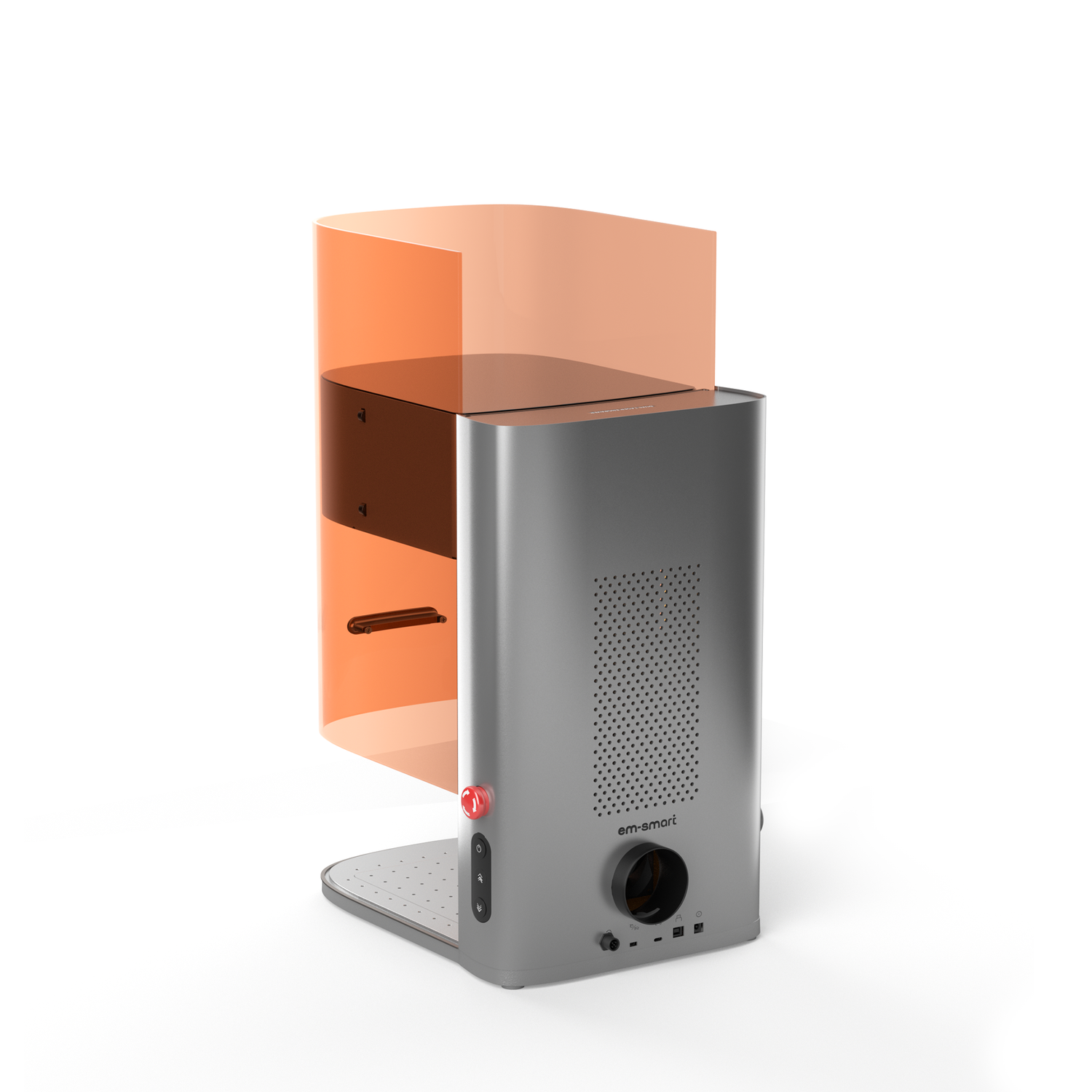

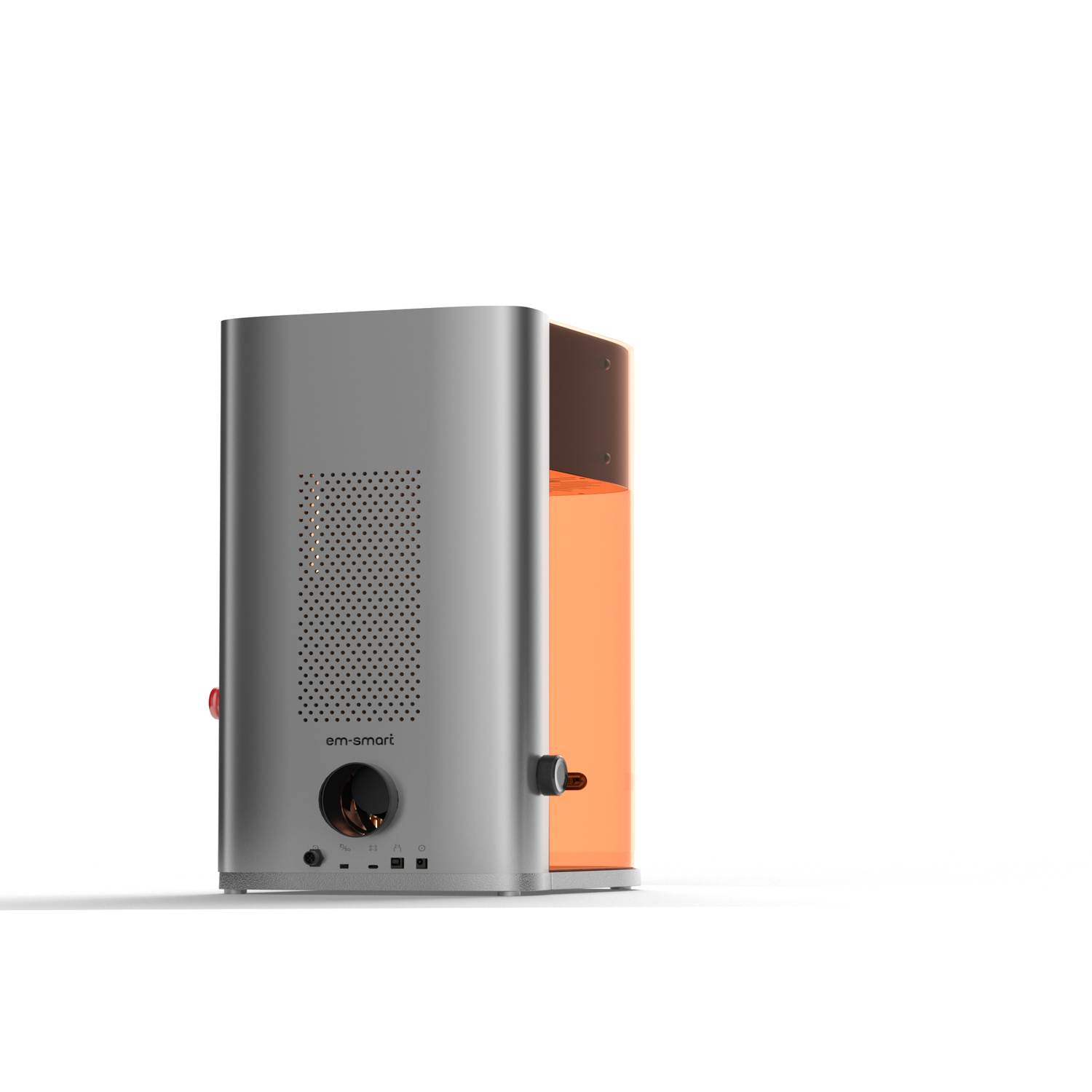

EM-Smart Dual 2 & SE Series Deposit Reservation

$20.00
Model

Extra Benefit: Deluxe Material Pack and Free LightBurn are included

1. Pay $20 Deposit (by Nov 27)

2. Complete Final Payment (Nov 27 - Dec 1)

3. Wait for Your Machine

💰 The pre-sale for our Dual 2 & SE Series is now on! It runs until November 27 at 7:59 PM PT. By placing a $20 deposit during this event, you will secure the super early bird discount, become a Dual's VIP member, and receive priority shipping.

The final payment period runs from 8:00 PM PT on November 28 through 11:59 PM PT on December 1. Your early bird discount will be automatically applied at checkout.

Deposit customers enjoy priority shipping. We fulfill orders based on the final payment order. Machines start shipping December 3.

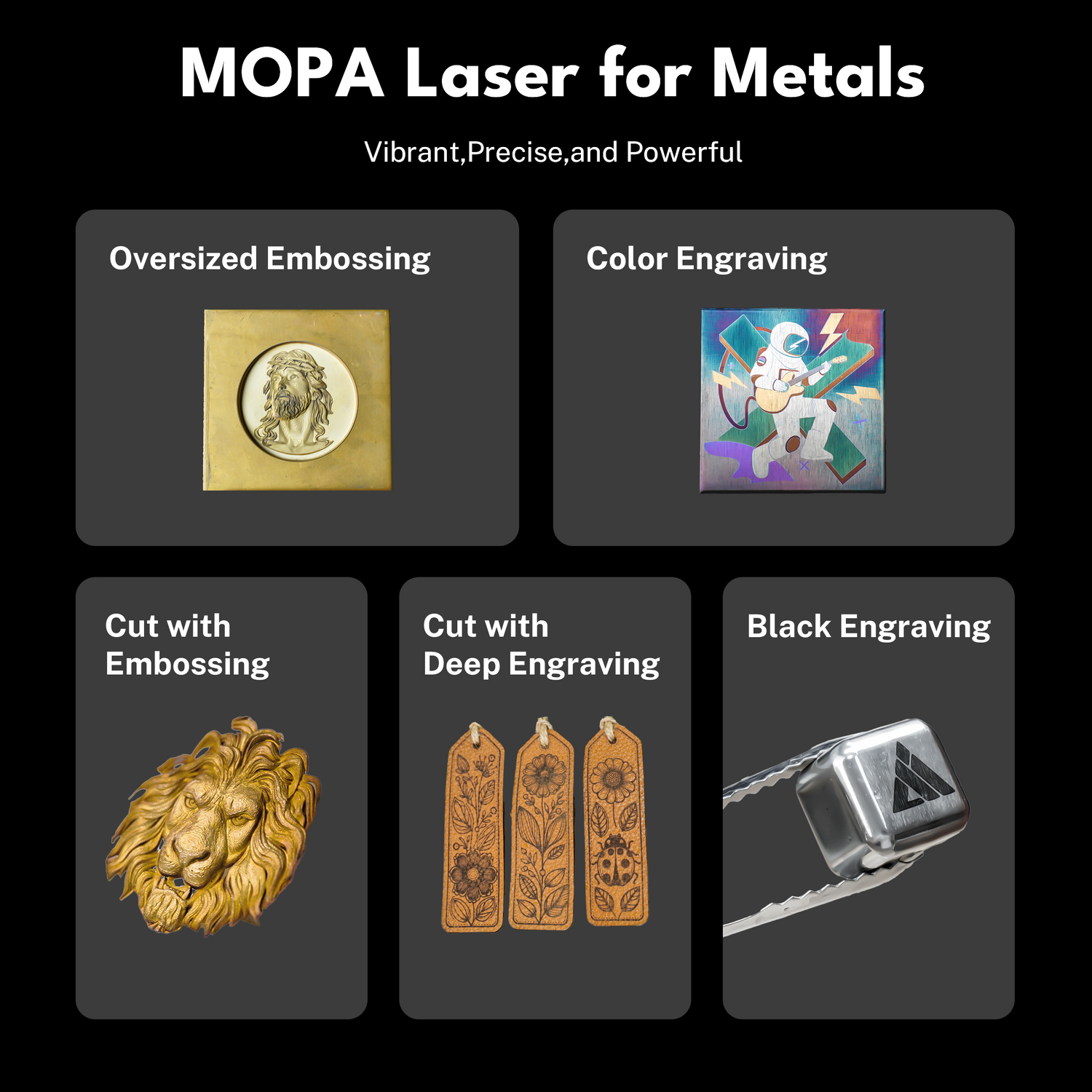

Color Your Creations

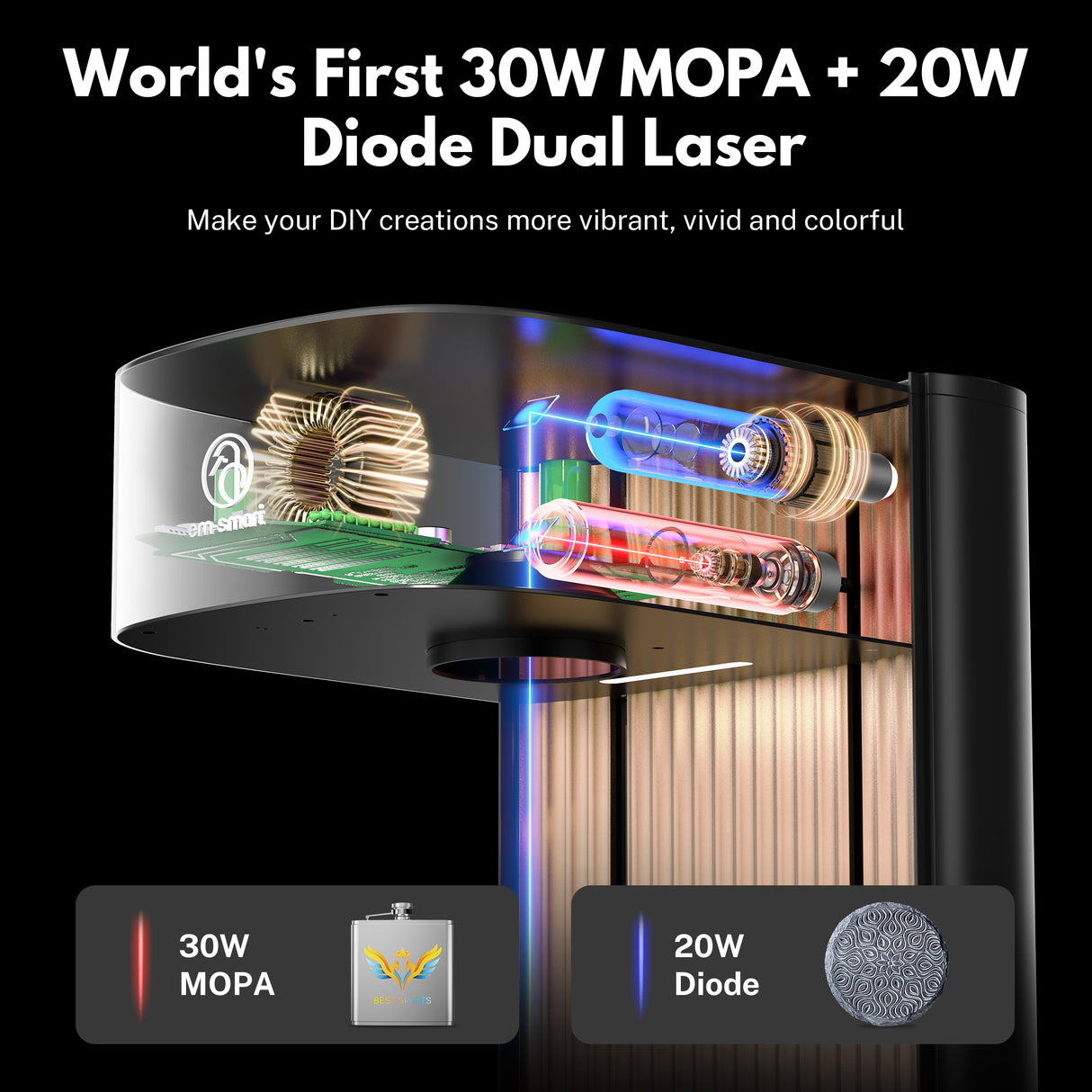

Unlock richer, more vivid colors with Dual 2's MOPA laser. Elevate your DIY projects and boost your business value.

3D Embossing
3D Embossing
Deep Engraving
Deep Engraving
Precise Cutting
Precise Cutting
Dual 2's 20W Diode Laser produces wood embossing with crisp details and striking 3D depth.
The Dual 2's 30W MOPA redefines slate embossing, offering speed without sacrificing detail.
The 30W laser etch precision and depth into brass, creating embossing that you can both see and feel.

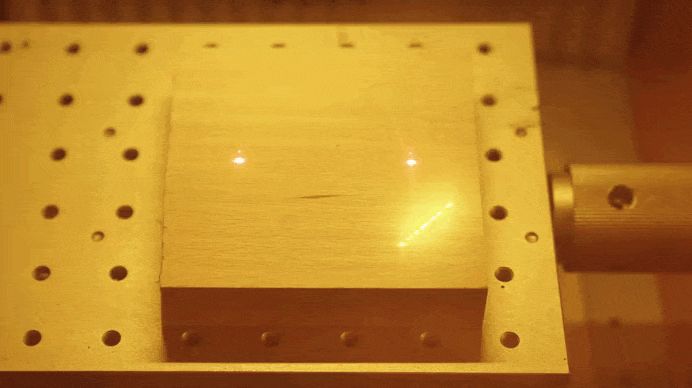

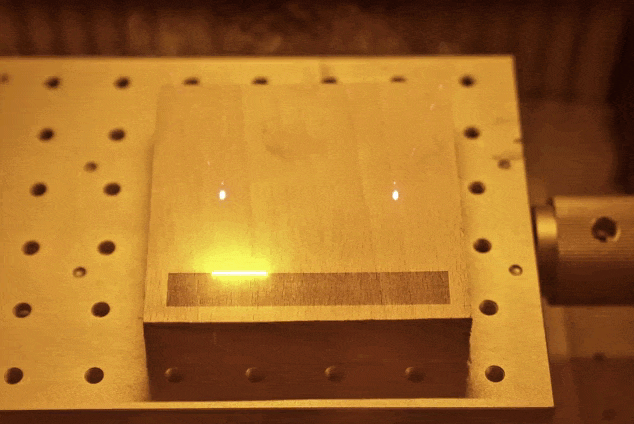

Wood
Dual 2's 20W Diode Laser produces wood embossing with crisp details and striking 3D depth.

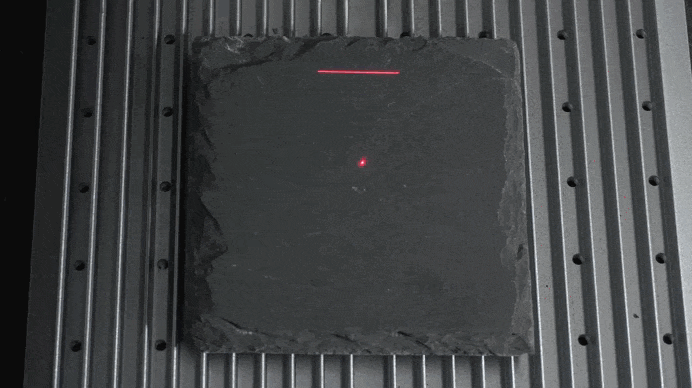

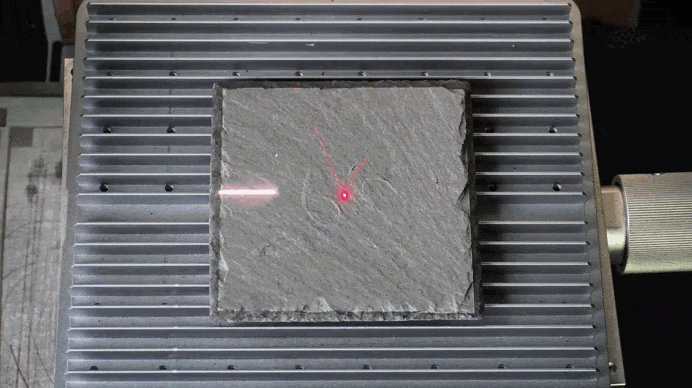

Slate
The Dual 2's 30W MOPA redefines slate embossing, offering speed without sacrificing detail.

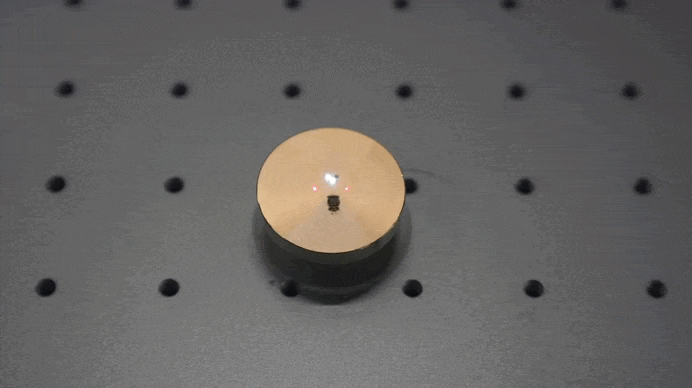

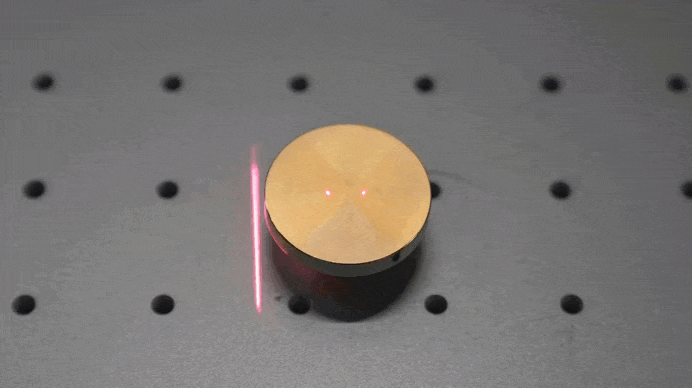

Brass
The 30W laser etch precision and depth into brass, creating embossing that you can both see and feel.
Wood Slate Brass
Create a permanent mark with deep wood engraving that reveals beautiful texture and lasting durability.
Achieve striking, high-contrast images on slate with our deep engraving process for a timeless look.
Get industrial-grade precision and quality with our deeply engraved brass for professional results.
Wood
Create a permanent mark with deep wood engraving that reveals beautiful texture and lasting durability.
Slate
Achieve striking, high-contrast images on slate with our deep engraving process for a timeless look.
Brass
Get industrial-grade precision and quality with our deeply engraved brass for professional results.
Wood Slate Brass
Effortlessly cut through 25mm thick wood with our 15,000mm/s speed laser, achieving clean, smooth edges in minutes.
Achieve flawless, intricate cuts on 1mm metal with 0.001mm micron-level precision, perfect for detailed designs.
Transform leather with razor-sharp cutting and exquisite marking, creating stunningly detailed patterns.

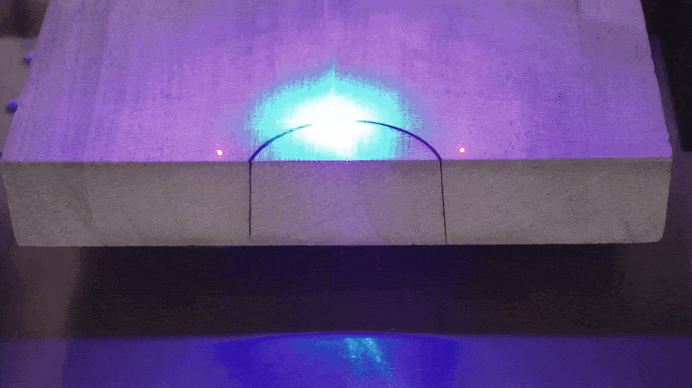

Wood
Effortlessly cut through 25mm thick wood with our 15,000mm/s speed laser, achieving clean, smooth edges in minutes.

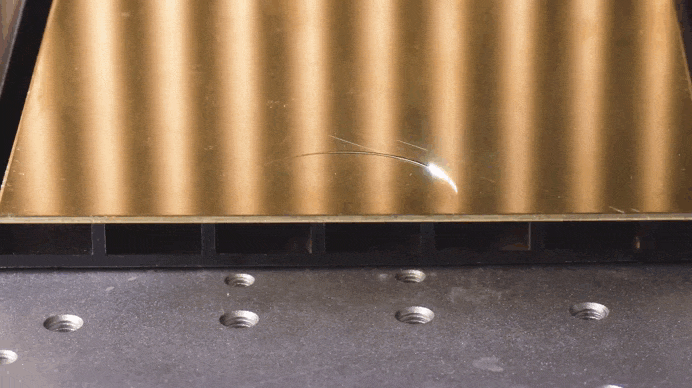

Metal
Achieve flawless, intricate cuts on 1mm metal with 0.001mm micron-level precision, perfect for detailed designs.

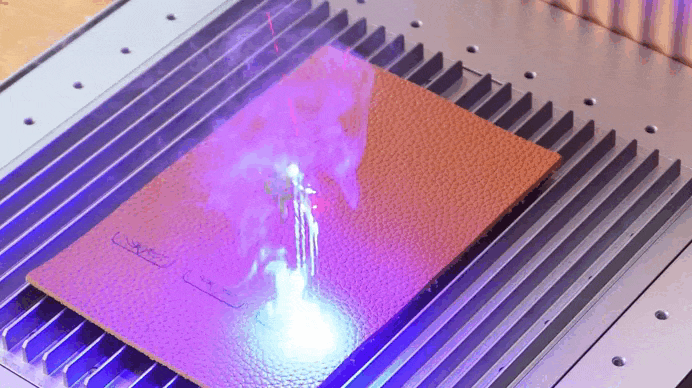

Leather
Transform leather with razor-sharp cutting and exquisite marking, creating stunningly detailed patterns.
Wood Metal Leather

Why the Media Trusts EM-Smart?

EM-Smart Laser Marker Technical Specifications

Specifications

Models

EM-Smart Dual 2
EM-Smart Dual SE

Laser Parameters

Laser Power
30W Fiber(Mopa) + 20W Diode
20W Fiber + 20W Diode
Laser Wavelength
1,064nm + 455nm
1,064nm + 455nm
Beam Quality
≤1.6m²
≤1.6m²
Frequency Range
27-62khz
27-62khz

Marking Parameters

Marking Speed
15,000mm/s
15,000mm/s
Marking Field(mm)
200*200
150*150
Maximum Marking Height
165mm
150mm
Working Distance
334mm
255mm
Motion Accuracy(mm)
±0.001
±0.001
Minimum Line Distance
Fiber(Mopa) 0.065mm
Diode 0.1mm
Fiber 0.04mm
Diode 0.08mm
Power Stability (8h)
<±1% rms
<±1% rms

Machine Dimensions

Field Lens
F290
F225
Camera Clarity
-
8MP
Net Weight
18.25Kg
16.4Kg
Packaging Weight
25.5Kg
23.65Kg
Machine Size(L*W*H mm)
293*399*585
293*399*485
Package Size(L*W*H mm)
375*535*665
370*535*570

Operating Parameters

Operating Temperature
50-107.6°F
50-107.6°F
Storage Temperature
14-140°F
14-140°F
Cooling Method
Air Cooling
Air Cooling
Supply Voltage
DC24V/7.5A
DC24V/7.5A
Input Power
≤180W
≤180W
PC Connection
USB Cable
USB Cable

Supported Features

Deep Engraving
✔
✔
Cutting
✔
✔
Safety Switch
✔
✔
Emergency Stop
✔
✔
Light-On Alert
✔
X
Applicable Materials
Metal materials (stainless steel, aluminum, copper, iron, zinc alloy), non-metal materials (acrylic, rubber sheet, wood panel, PVC sheet, PP sheet, ABS sheet, PC sheet, cardboard, fabric, painted wood, stone slab, stone panel).

Software Compatibility

Marking Software
LIGHTBURN
File Formats
bmp/jpg/jpeg/png/gif/tif/tiff/tga/webp/ai/pdf/sc/dxf/gc/gcode/nc/hpgl/plt/rd/scpro2/svg/lbrn/mage
Software Languages
Simplified Chinese, Traditional Chinese, English, French, German, Russian, Japanese.
Operating System
Windows & MAC

Others

Certification
IEC60825-1, FDA, CE-EMC, FCC-SDoc
Warranty
1 Year

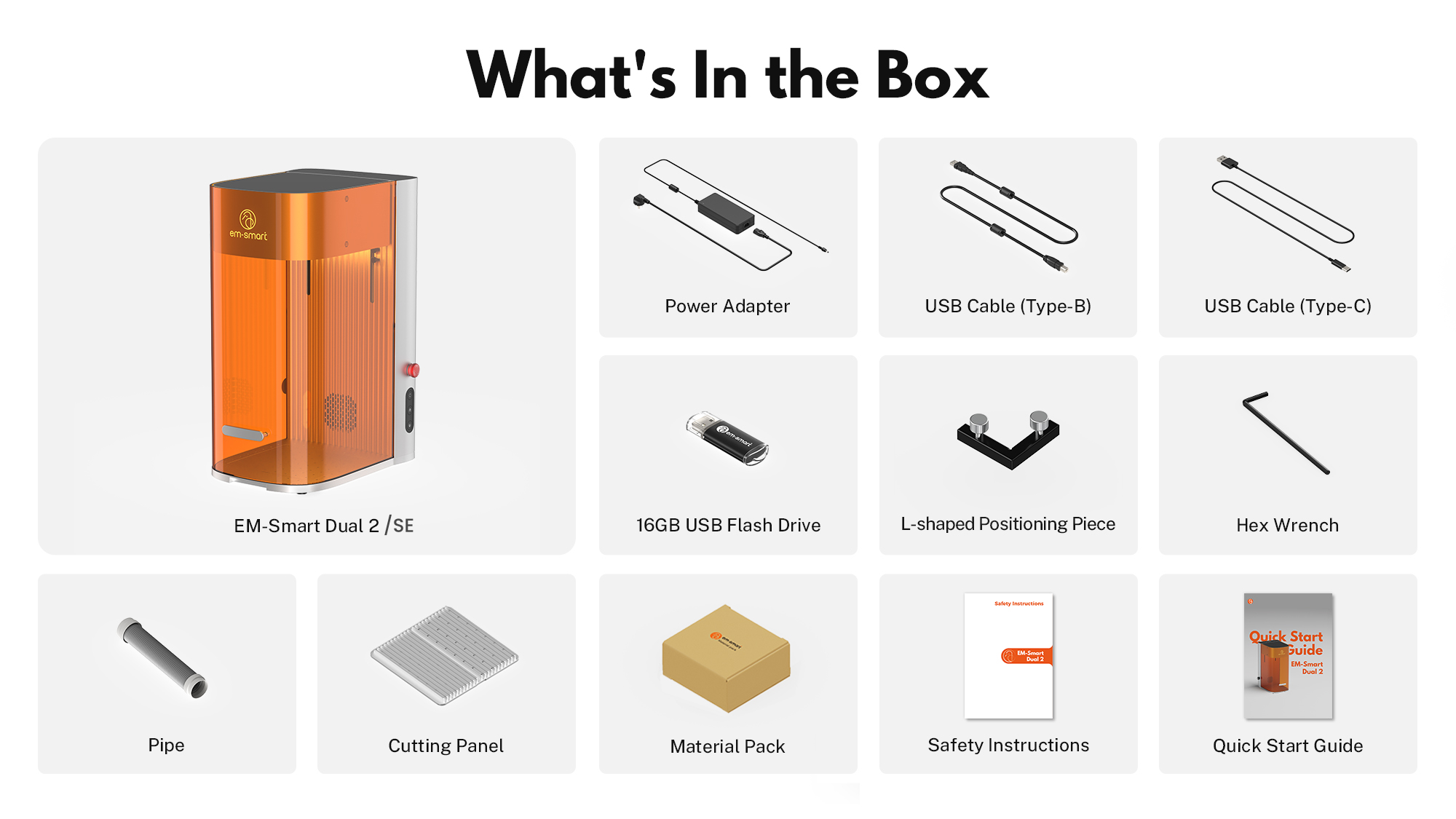

Standard Accessories
Laser safety goggles, cutting tray, L-shaped positioning bar, computer cable, camera cable, DC24V 7.5A power adapter, power cord, lens cleaning paper, USB flash drive, 2.5mm hex wrench, material kit.

Frequently Asked Questions

About Products

What's the difference between MOPA and standard fiber laser sources?

MOPA laser systems utilize adjustable pulse width technology to create controlled oxidation layers on metal surfaces, enabling permanent color marking in shades ranging from golden bronze to deep blue. Conventional fiber lasers with fixed pulse width cannot generate these oxide variations, making them incapable of producing color marks on materials.

What are the deadlines for the deposit and the final payment?
  • Deposit deadline: November 26, 2025 (PST)
  • Final payment deadline: December 2, 2025, (PST)

What materials and thicknesses can the Dual 2 cut/engrave?
  • Engraving: Deeply and precisely marks stainless steel, aluminum, titanium, brass, anodized aluminum, coated metals, ceramics.
  • Cutting: Powerfully cuts materials like 25mm wood and 15mm acrylic, and engraves on surfaces including 1mm metal (using a coating).

Is the Dual Series easy to use?
  • Instant Setup: Designed for a true "out-of-the-box" experience with minimal initial configuration required.
  • Effortless Focus: The Dual 2/SE features electric focus for quick and precise adjustment of the working distance.
  • Expanded Versatility: Directly supports essential accessories like fume purifiers and rotary attachments to meet the demands of diverse marking applications.

Shipping

What countries do you ship to?

We provide free and fast shipping service by air freight to all countries over the world.

How long will it take to receive my engraver?

After the pre-sale campaign concludes, we will begin processing all orders. We process and ship orders within 7 business days on a first-come, first-served basis. Delivery times then vary by location, typically between 5-14 business days.
