The Ultimate Engraving Solution for Every Creator

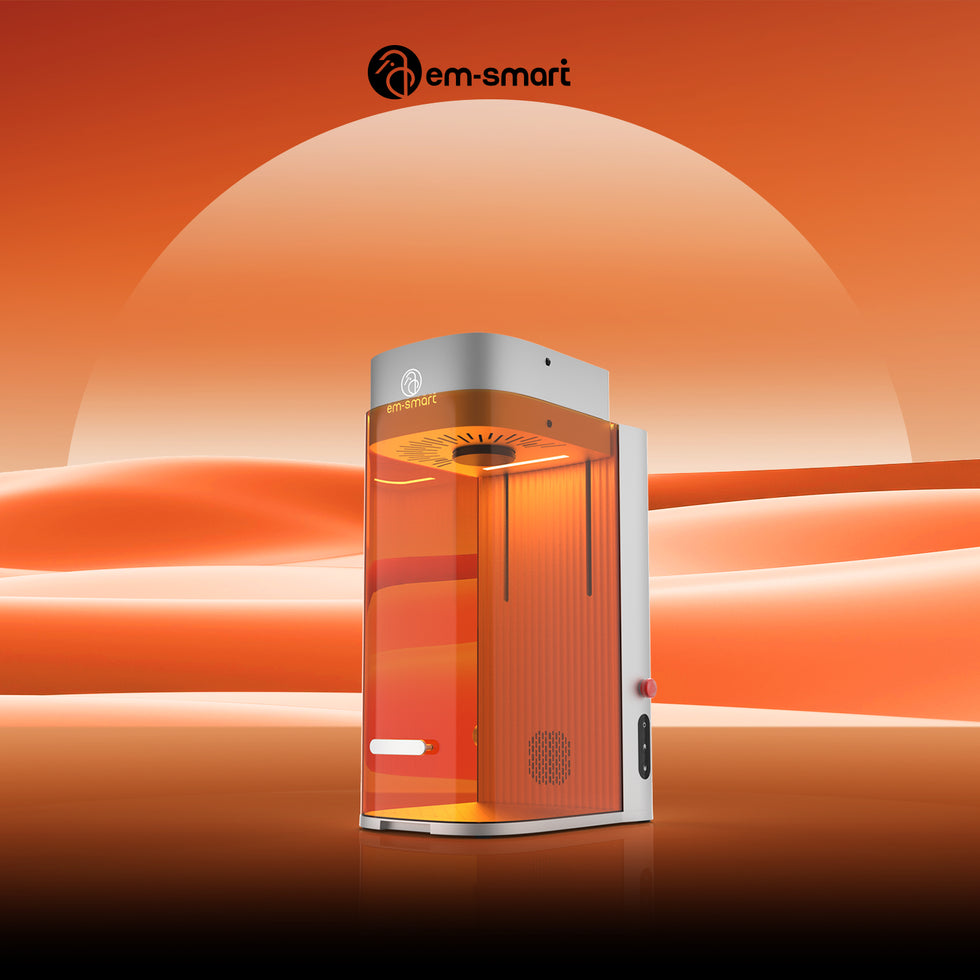

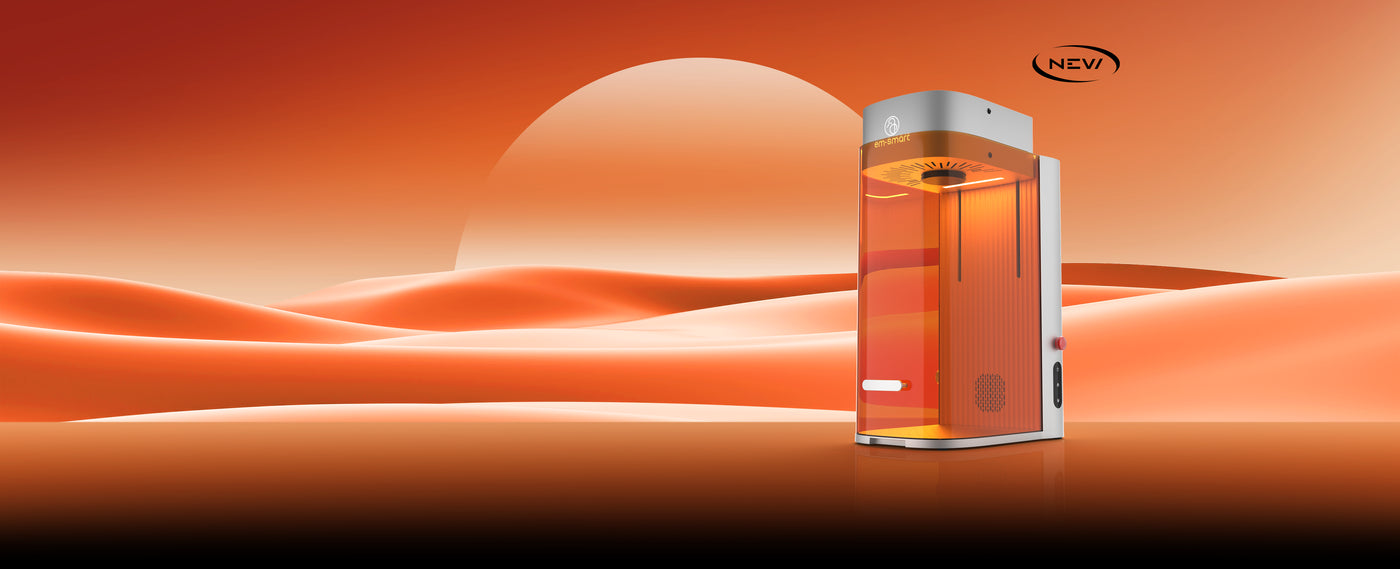

Introducing the EM-Smart Dual laser engraver, featuring cutting-edge 20W fiber and 20W diode lasers. For artists, makers, entrepreneurs - whether beginner or pro - or anyone looking to bring their creative ideas to life.
No extra software costs! The EM-Smart Dual comes with LightBurn included, so you can start engraving right away without purchasing additional software.
Unleash your creativity and bring your ideas to life with precision and ease!

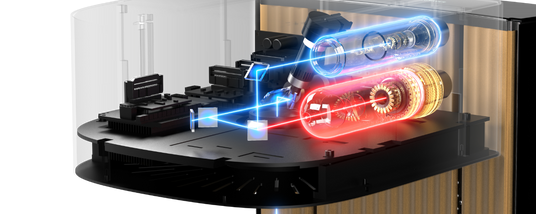

Master Any Material with Dual Laser Power
EM-Smart Dual features both a 20W fiber laser, perfect for engraving metals like steel and aluminum, and a 20W diode laser, ideal for wood, acrylic, and leather. Whether you're personalizing gifts, creating detailed designs, or tackling industrial projects, this machine empowers you to elevate your work with professional-grade ease.
20W
Diode Laser
20W
Fiber Laser
One Investment, Infinite Possibilities
With EM-Smart's innovative dual-laser technology, you engrave across a variety of materials without the need for multiple devices. It's a cost-effective, space-saving solution that delivers professional results - maximizing versatility while minimizing investment.

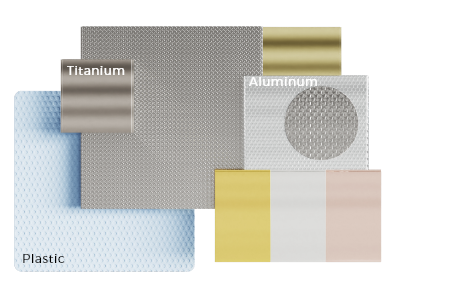

20W Fiber Laser
Well suited for engraving stainless steel, aluminum, copper, brass, plastic, silver, titanium, gold and other metals

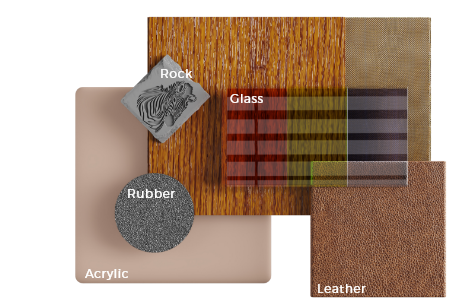

20W Diode Laser
Outstanding for engraving non-metals, such as plastic, leather, certain types of wood and so on.
Largest Working Area in Its Kind
With a generous 230mm x 230mm working area, you can easily tackle larger projects. Enjoy the freedom to craft intricate designs and expansive engravings without limits!
135%
Large Area
Technical Specifications
Download| Technical Specifications | Details |
|---|---|
| Laser Source | MAX |
| Laser Type | Fiber (20W) & Diode (20W) |
| Output Power (W) | 20W |
| Processing Speed (mm/s) | 0 - 10,000mm/s |
| Working Area (mm) | 230x230mm |
| Maximum Engraving Height (mm) | 150mm |
| Laser Wavelength (nm) | Fiber (1064nm) & Diode (455nm) |
| Beam Quality (m²) | Fiber (≤1.6) |
| Laser Spot Size | 0.06*0.06mm (fiber)，0.15mm*0.3mm (diode) |
| Repeat Accuracy (mm) | ±0.002mm |
| Minimum Line Distance (mm) | 0.06mm (1064nm); 0.15mm (455nm) |
| Repeat Pause Frequency Range (kHz) | 27-62kHz |
| Built-in Camera | 4K |
| Operation Temperature (℃) | 10 - 42°C |
| Storage Temperature (℃) | 10 - 42°C |
| Cooling Method | Air Cooling |
| Net Weight (kg) | 18.15kg |
| Dimension (L*W*H mm) | 293*399*585mm |
| Package Size (L*W*H mm) | 515*355*643mm |
| Power Requirement | DC 24V/7.5A |
| PC Connection | USB Cable |
| Deep Engraving | Y |
| Cutting Function | Y |
| Rotary Function | Y |
| Software | LightBurn & EZCAD |
| Supported File Formats | text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code, qr code, serial number, date code, time code, TCP/IP communication, serial communication, file, sql database, etc. |
| Languages | Chinese (Traditional & Simplified), English, Japanese, Korean, Spanish, Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish… up to 24 languages |
| Operating System | Windows & MAC & Linux |
| Warranty | Fiber Laser (2 years); Diode Laser (1 year) |
