Save 46%

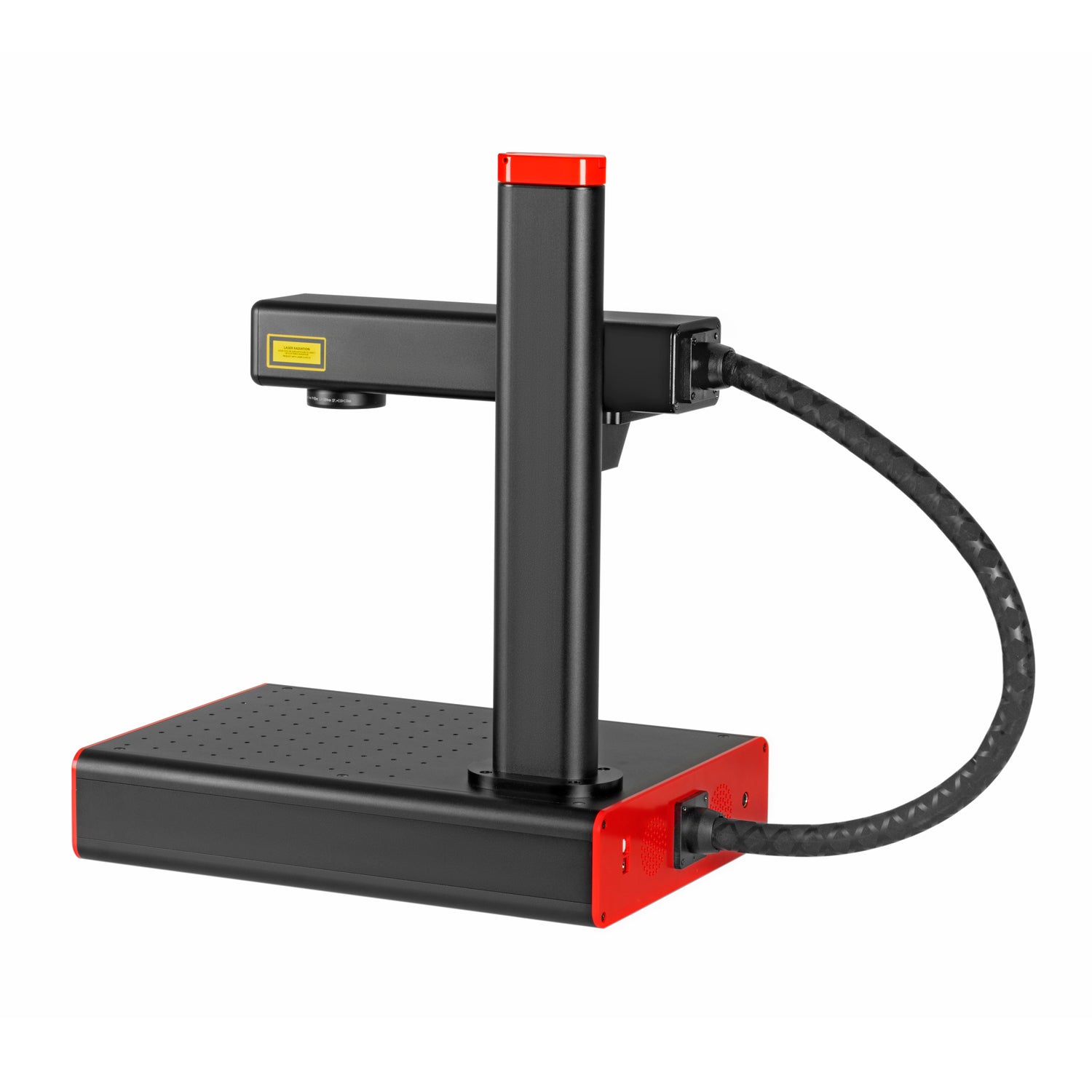

EM-Smart Mopa 20/60 - JPT Fiber Laser Engraver
EM-Smart Mopa 20/60 - JPT Fiber Laser Engraver
Regular price
$2,799.00
Sale price
$2,799.00
Regular price
$5,199.00
EM-Smart's Mopa fiber laser engravers with JPT sources offer precise engraving on metal, plastic, leather, and more. Compact, portable, and high-quality.
12-Month Warranty
12-Month Warranty
We provide a 12-month warranty for all EM-Smart laser machines. Besides, we also provide technical support services including live chat, email, phone call, video call, remote control, spare parts, field maintenance and repair (If a local distributor is available).
CE, FDA, RoHS, SGS, ISO9001 Certified
CE, FDA, RoHS, SGS, ISO9001 Certified
Certified to Meet Industry and International Standards
Safe & Secure Checkout
Safe & Secure Checkout
What Kinds of Payment Methods Are Accepted?
We support a wide range of secure payment methods, including PayPal, Visa, Mastercard, American Express (AMEX), UnionPay, Apple Pay, Google Pay, Shop Pay, Klarna, and multiple local payment options.
All available payment methods will be displayed at checkout for your convenience.
Payment Failures
If you encounter issues during payment, here are some common problems and solutions.
1. Credit Card Payment Failed with Code 80010: Transaction Do Not Honour
Cause: The card-issuing bank perceives the transaction as risky, particularly for overseas transactions. This can happen due to bank policies or if the cardholder has set a limit on online purchases.
Solution: Contact your card-issuing bank to authorize the transaction or verify that it’s your purchase. You may also need to adjust your online spending limits.
2. Credit Card Payment Failed with Code 80090: Cannot Start 3D Authorized Service
Cause: The 3D verification service is not enabled.
Solution: Contact your card-issuing bank to enable 3D verification services. Ensure you complete the 3D verification steps or try using a different card.
3. Credit Card Payment Failed with Code 20061: Duplicate Order
Cause: The customer exited the 3D verification process and attempted to pay again, causing a duplicate transaction.
Solution: Complete the 3D verification process as prompted and avoid refreshing the page.
Exchange Rate Conversion
All transactions on em-smart.store are settled in USD. If you pay with a credit card denominated in a currency other than USD, your card-issuing bank may charge additional exchange rate fees or incur exchange rate losses. If you experience any additional fees, please contact your bank and request a refund if necessary.
Payment Security
Transactions are secure. All payments are processed through PayPal, a trusted third-party payment processor that uses encryption to secure your data.
Card information remains private. Em-Smart does not store any card information on its website, ensuring that your payment details are kept safe.
Checkout is protected. Our checkout process is safeguarded by industry-standard 128-bit SSL encryption, ensuring your personal information remains secure.
With Em-Smart, you can shop confidently, knowing that your payment information is safe and secure.
About Klarna：https://em-smart.com/pages/klarna
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

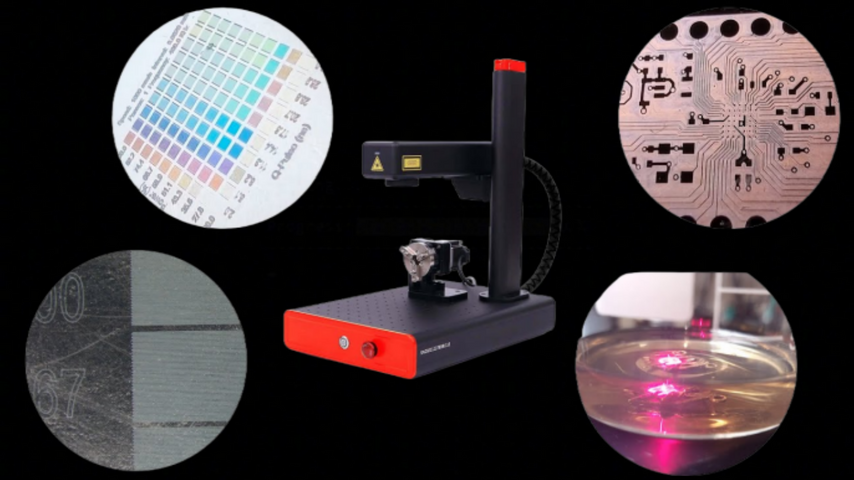

EM-Smart MOPA
The Ultimate MOPA Laser Engraver for Color Reproduction
EM-Smart MOPA
The Ultimate MOPA Laser Engraver for Color Reproduction
Ultra-Precision
0.002mm Motion Accuracy 0.002mm Motion Accuracy
Color Engraving
Precise color reproduction with JPT Fiber Laser Precise color reproduction with JPT Fiber Laser
Lightning Speed
15,000mm/s Marking Speed 15,000mm/s Marking Speed
Professional Design
Fully supports LightBurn & Ezcad Fully supports LightBurn & Ezcad

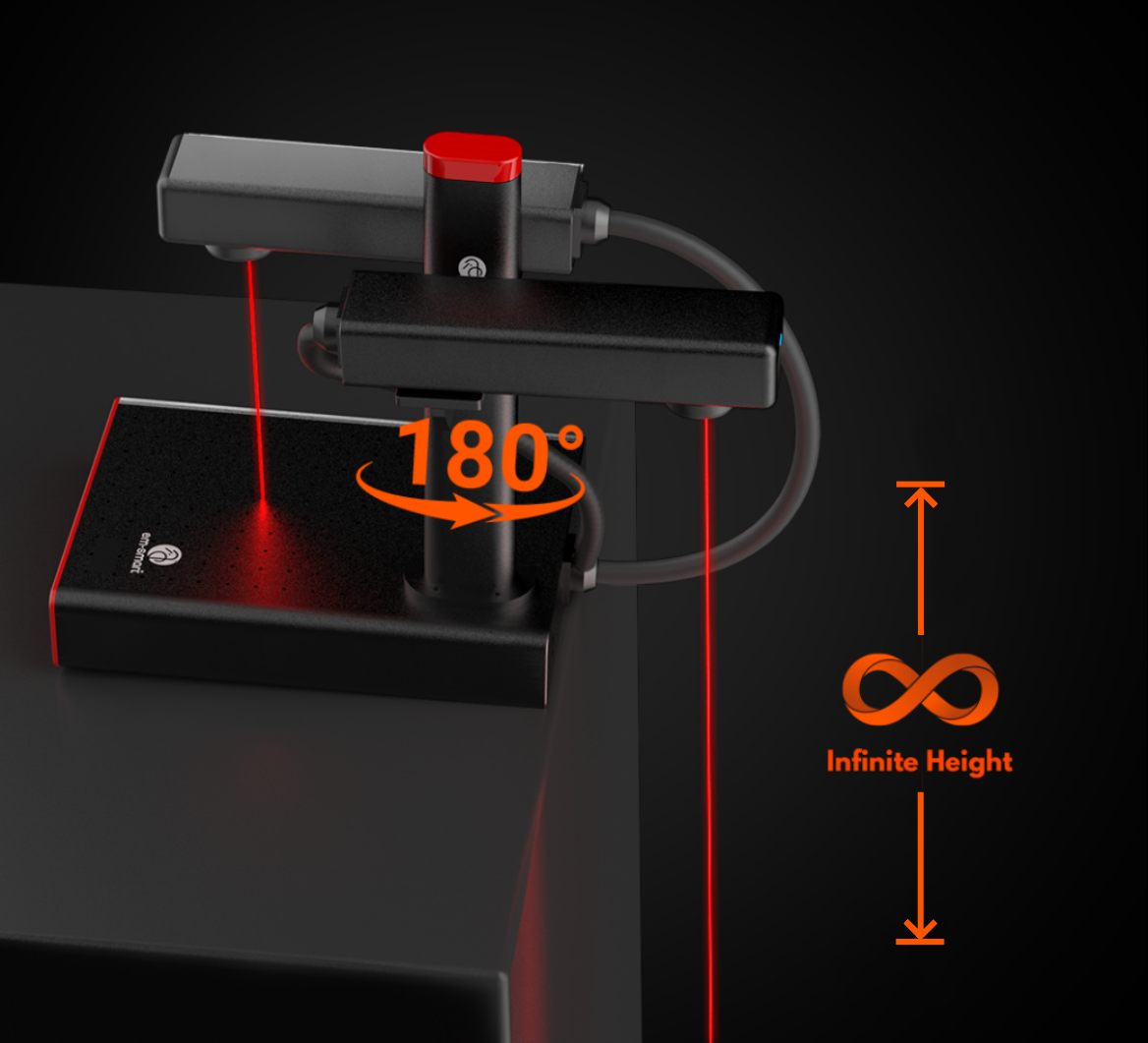

Unlimited Marking
360° rotation for more possibilities 360° rotation for more possibilities
Deep Engraving
60W power for deep engraving and cutting 60W power for deep engraving and cutting
Black Marking
Industrial Grade Blackness for Logos Industrial Grade Blackness for Logos
Perfectly Suited for All Your Engraving Needs

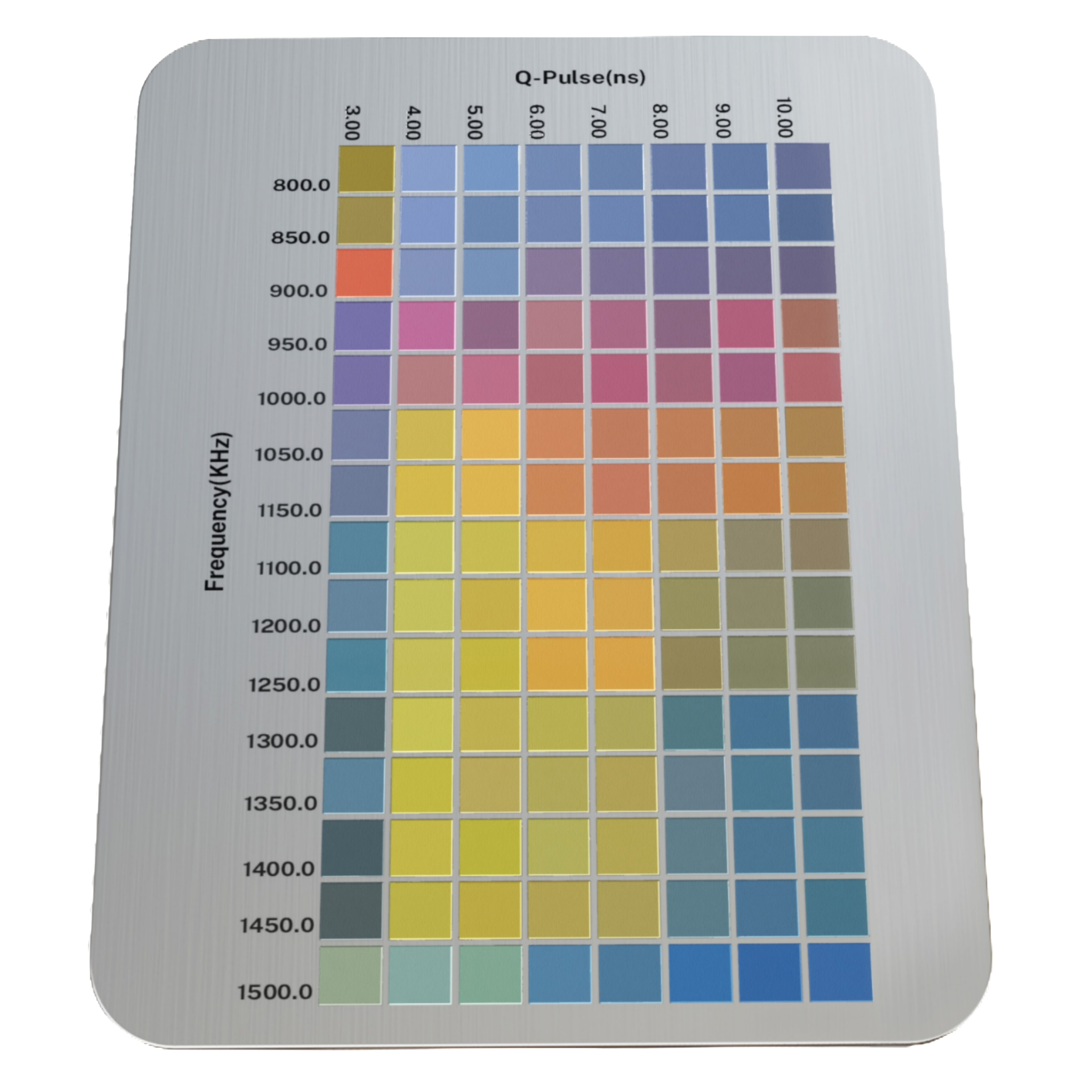

Unleash Color Accuracy with MOPA Laser Engraving
Elevate your designs with rich, lasting colors and exceptional details.
Exquisite Color Reproduction
Bring your designs to life with vibrant, realistic colors. EM-Smart MOPA laser engraver delivers unmatched color accuracy, making every detail pop.
Endless Design Possibilities
Unleash your creativity with limitless engraving options.

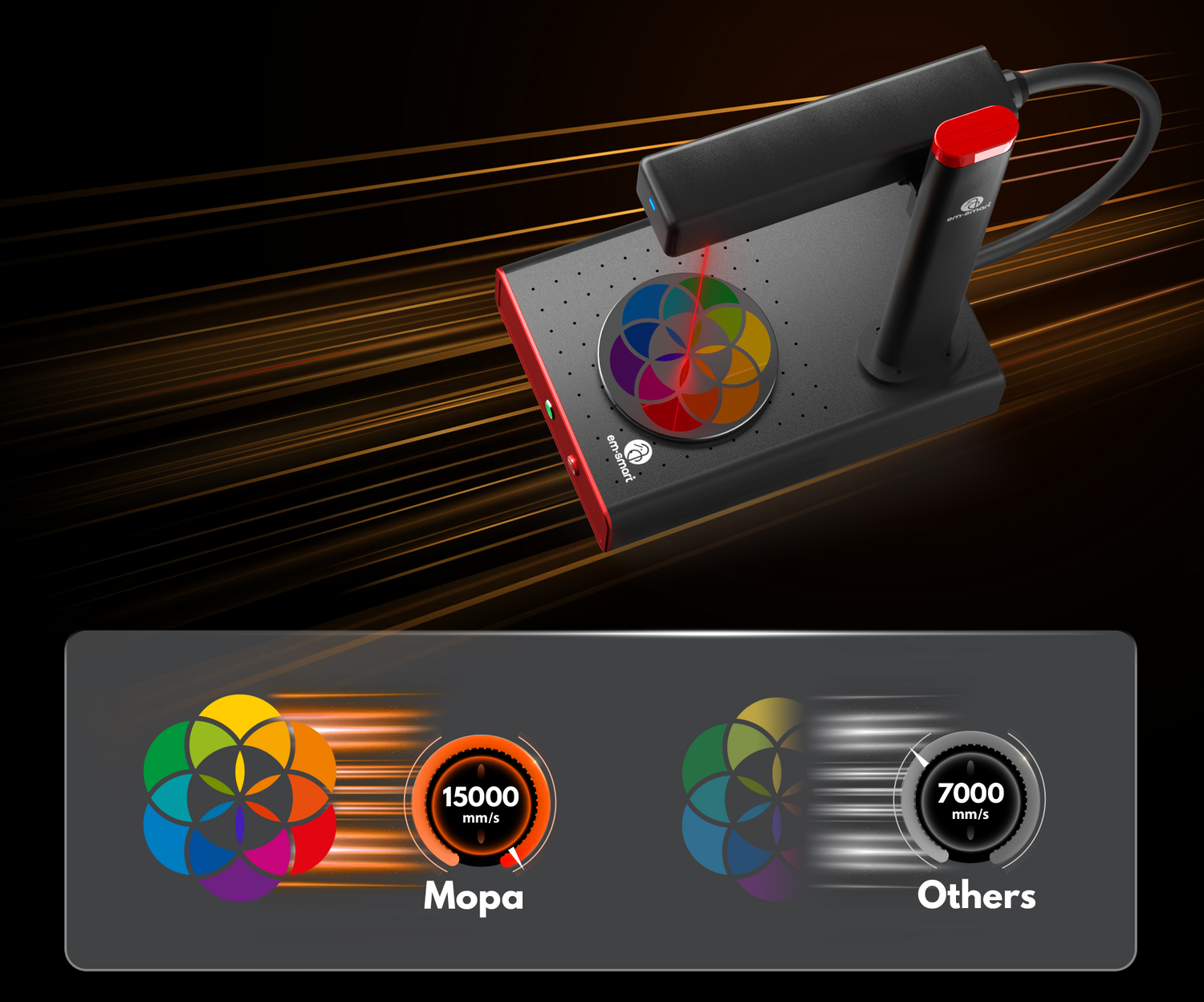

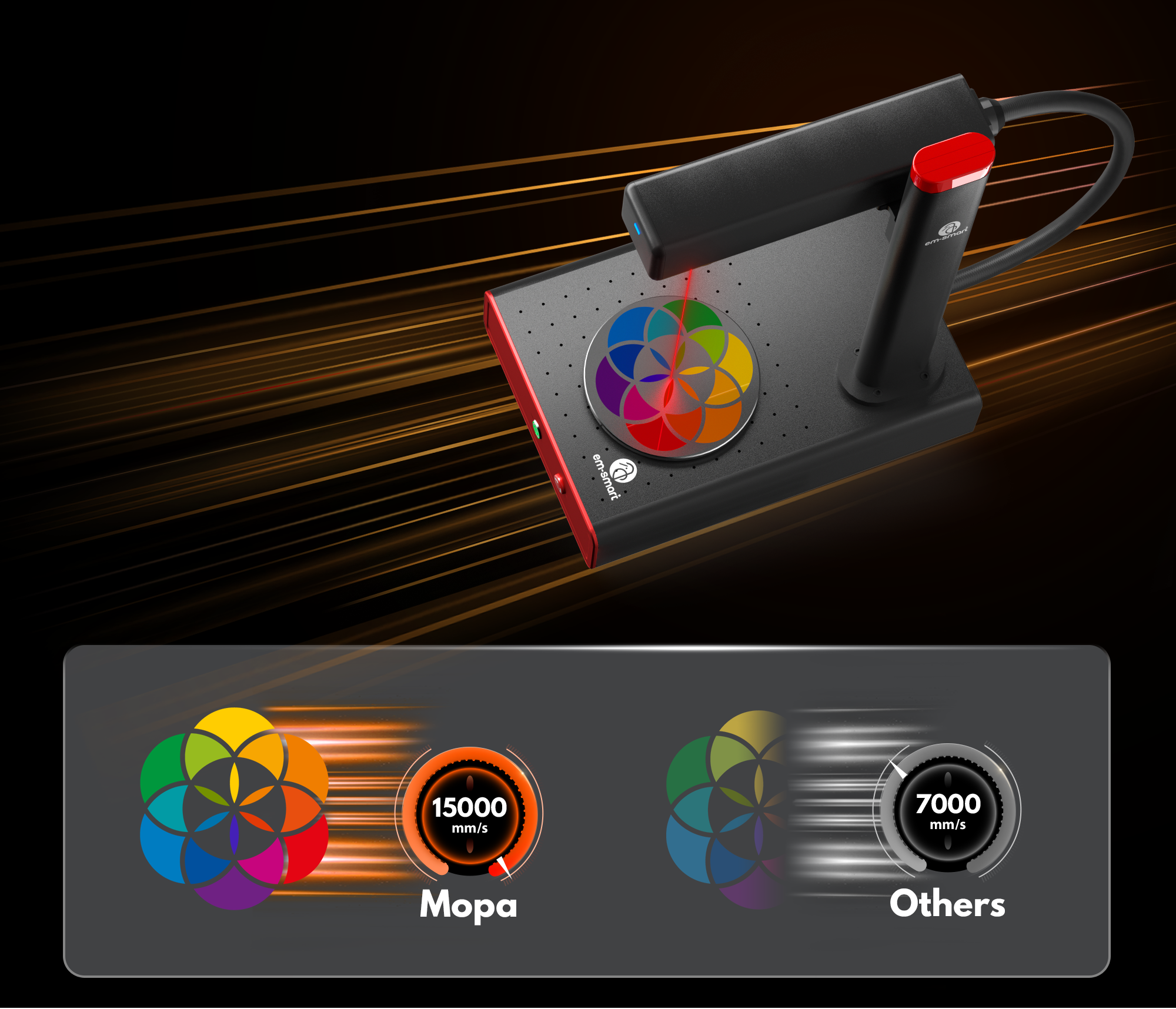

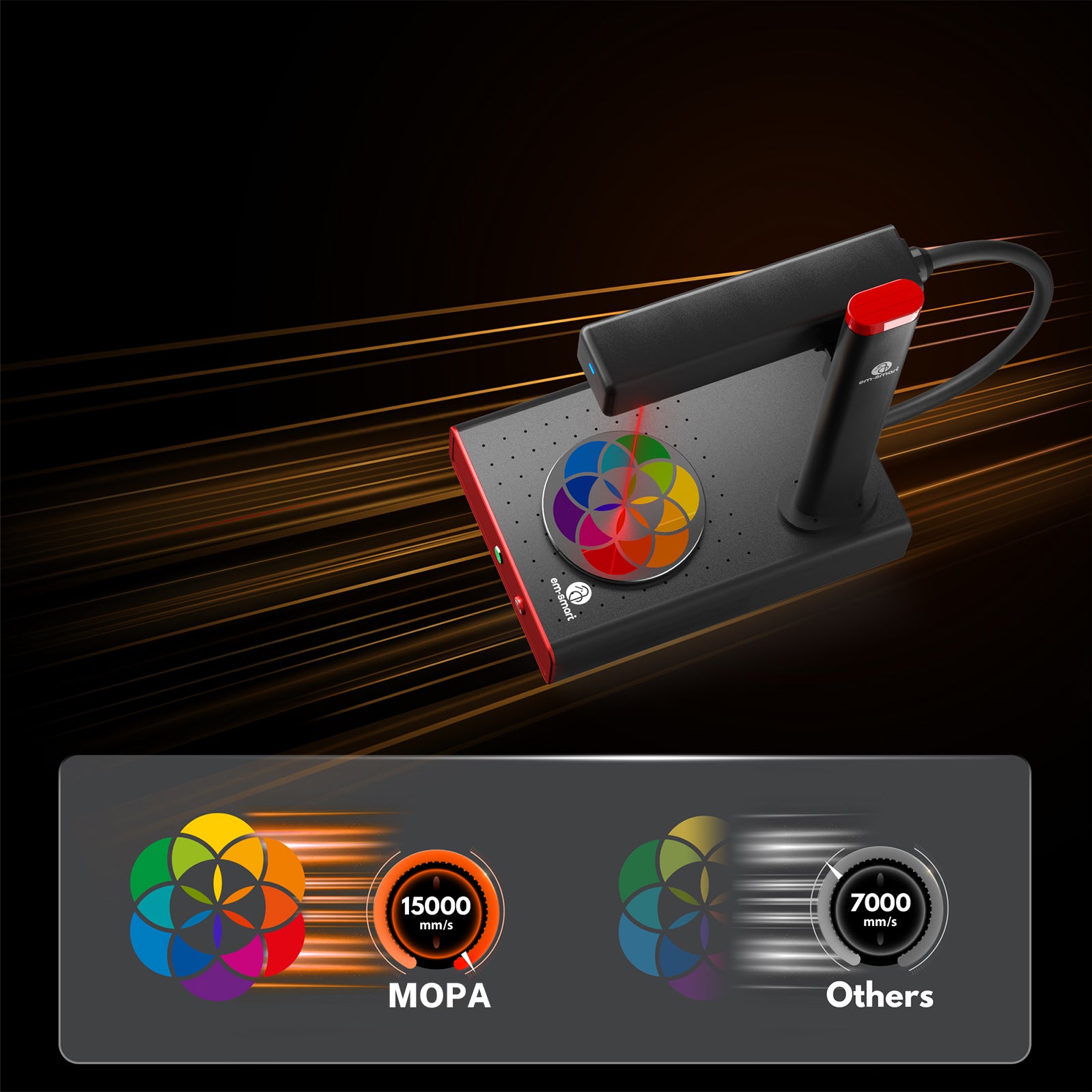

Lightning-Fast Marking Speed for Unmatched Productivity
This is the description content, support multi-line text.

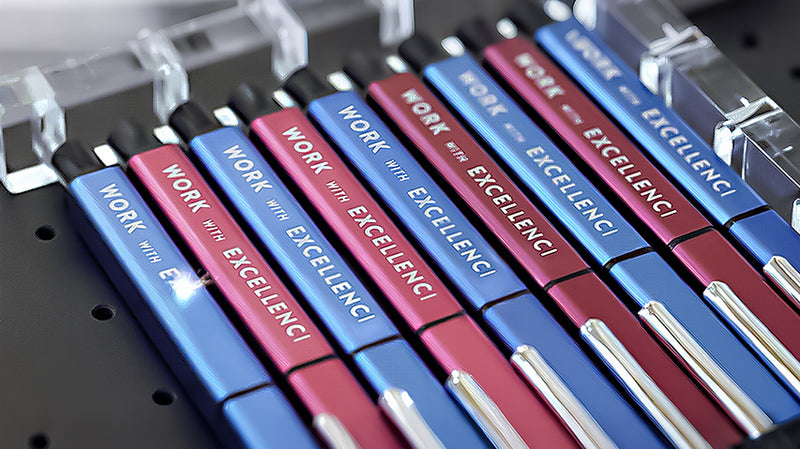

Timeless Black Marking for Perfect Logos
Achieve vibrant black markings on anodized aluminum with EM-Smart MOPA. Perfect for high-quality branding, product labeling, and custom designs.
Powerful Deep Engraving and Cutting
Unlocking new possibilities with an industrial grade laser source,boasting high power capabilities that allow for deep engraving and precision cutting.
Turn Ideas into Profit
Calculate Your Earnings Potential with EM-Smart MOPA
Select My Products
Custom My Product
Color Engraved Necklaces
Deep Engraved Wood Decoration
Customed Bracelets

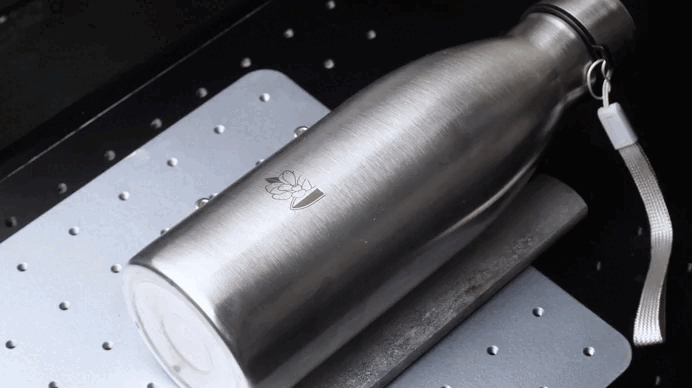

Logo Marked Bottles
Personalized Rings
DIY Dog Tags

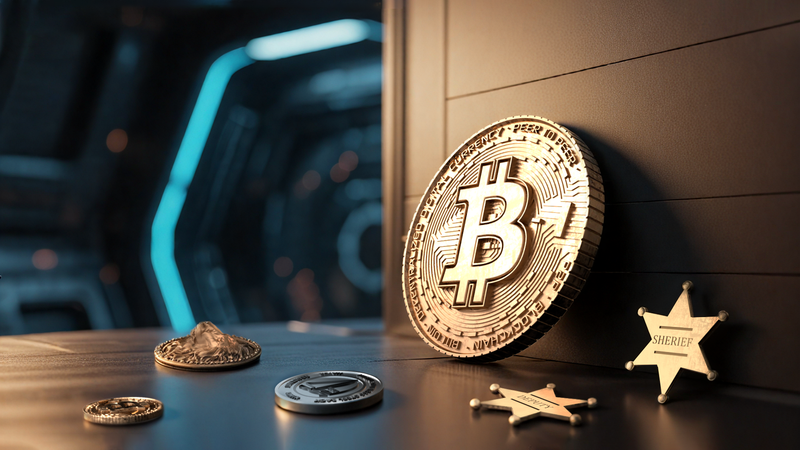

Laser Engraved Coins
Laser Engraved Cards
Profit Potential Forecast
Equipment Investment Payback Period
4.2month(s)
Annual Revenue Forecast
$18,000
Annual Net Profit Forecast
$14,400
*For estimation purposes only. Actual profitability depends on numerous factors, including your marketing,
operational costs, and market demand.
What Youtubers Say
What's in the Box
Product Comparison
EM-Smart MOPA (60W)
MOPA Product A (60W)
MOPA Product B (60W)
Price
$4,299
$4,599
$4,399
Laser Source
JPT Laser
Common Laser
Common Laser
Motion Accuracy
0.002mm
0.00482mm
0.01mm
Marking Speed
15,000mm/s
15,000mm/s
10,000mm/s
Marking Height
Unlimited
150mm
<300mm
Warranty
24 Months
12 Months
12 Months
EM-Smart MOPA Specs
Models
EM-Smart MP20
EM-Smart MP30
EM-Smart MP60
Laser Parameters
Laser Source
JPT
JPT
JPT
Laser Type
Fiber laser
Fiber laser
Fiber laser
Laser Power
20W
30W
60W
Laser Wavelength
1,064nm
1,064nm
1,064nm
Beam Quality
≤1.3m²
≤1.3m²
≤1.5m²
Frequency Range
1-4,000khz (1-3,000)
At Full Power:
25-4000kHz (37-3000)
At Full Power:
25-4000kHz (37-3000)
1-4,000khz (1-3,000)
At Full Power:
25-4000kHz (37-3000)
At Full Power:
25-4000kHz (37-3000)
1-4,000khz (1-3,000)
At Full Power:
25-4000kHz (37-3000)
At Full Power:
25-4000kHz (37-3000)
Marking Parameters
Marking Speed
15,000mm/s
15,000mm/s
15,000mm/s
Marking Field(mm)
150*150 (70*70/110*110/175*175)
150*150 (70*70/110*110/175*175)
150*150 (70*70/110*110/175*175)
Maximum Marking Height
Infinite
Infinite
Infinite
Motion Accuracy
Spectral width＜15nm
Pause energy 0.8mj
Pause energy 0.8mj
Spectral width＜15nm
Pause energy 0.8mj
Pause energy 0.8mj
Spectral width＜15nm
Pause energy 1.5mj
Pause energy 1.5mj
Minimum Line Distance
Pulse width: 2-350ns
Line space: 0.001mm
Line space: 0.001mm
Pulse width: 2-350ns
Line space: 0.001mm
Line space: 0.001mm
Pulse width: 2-500ns
Line space: 0.001mm
Line space: 0.001mm
Machine Dimensions
Net Weight
14.5Kg
14.5Kg
18Kg

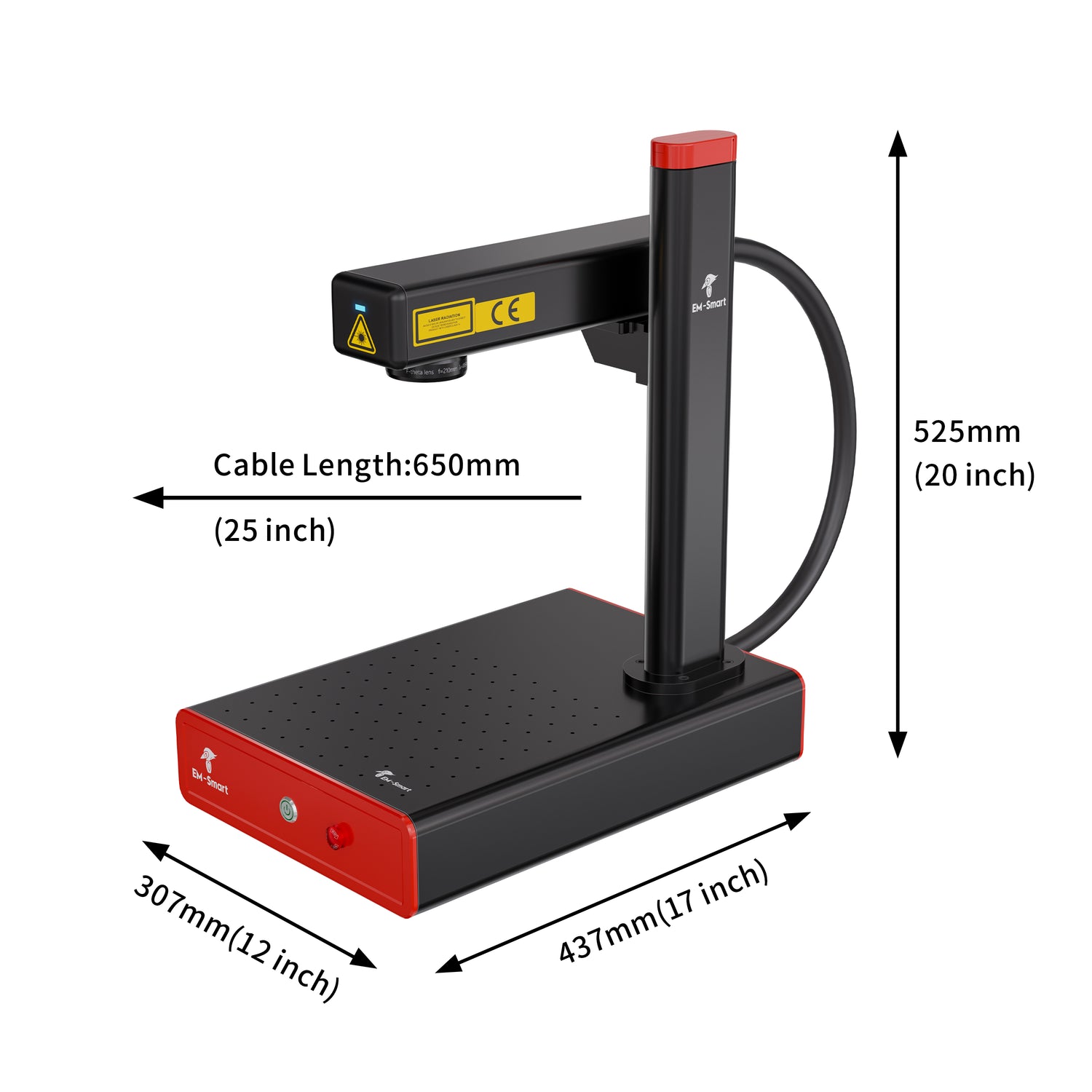

Machine Size(L*W*H*T mm)
437*307*545*88
437*307*545*88
575*325*545*90
Package Size(L*W*H*T mm)
760*540*170
760*540*170
760*540*170
Machine Color
Black and Red
Black and Red
Black and Red
Operating Parameters
Operating Temperature
0-40℃
0-40℃
0-40℃
Storage Temperature
-10-60℃
-10-60℃
-10-60℃
Cooling Method
Air Cooling
Air Cooling
Air Cooling
Lifespan
100,000(Hours)
100,000(Hours)
100,000(Hours)
Supply Voltage
DC24V
DC24V
DC24V
Input Power
≤120W
≤144W
≤300W
PC Connection
USB Cable
USB Cable
USB Cable
Supported Features
Deep Engraving
✔
✔
✔
Cutting
✔
✔
✔

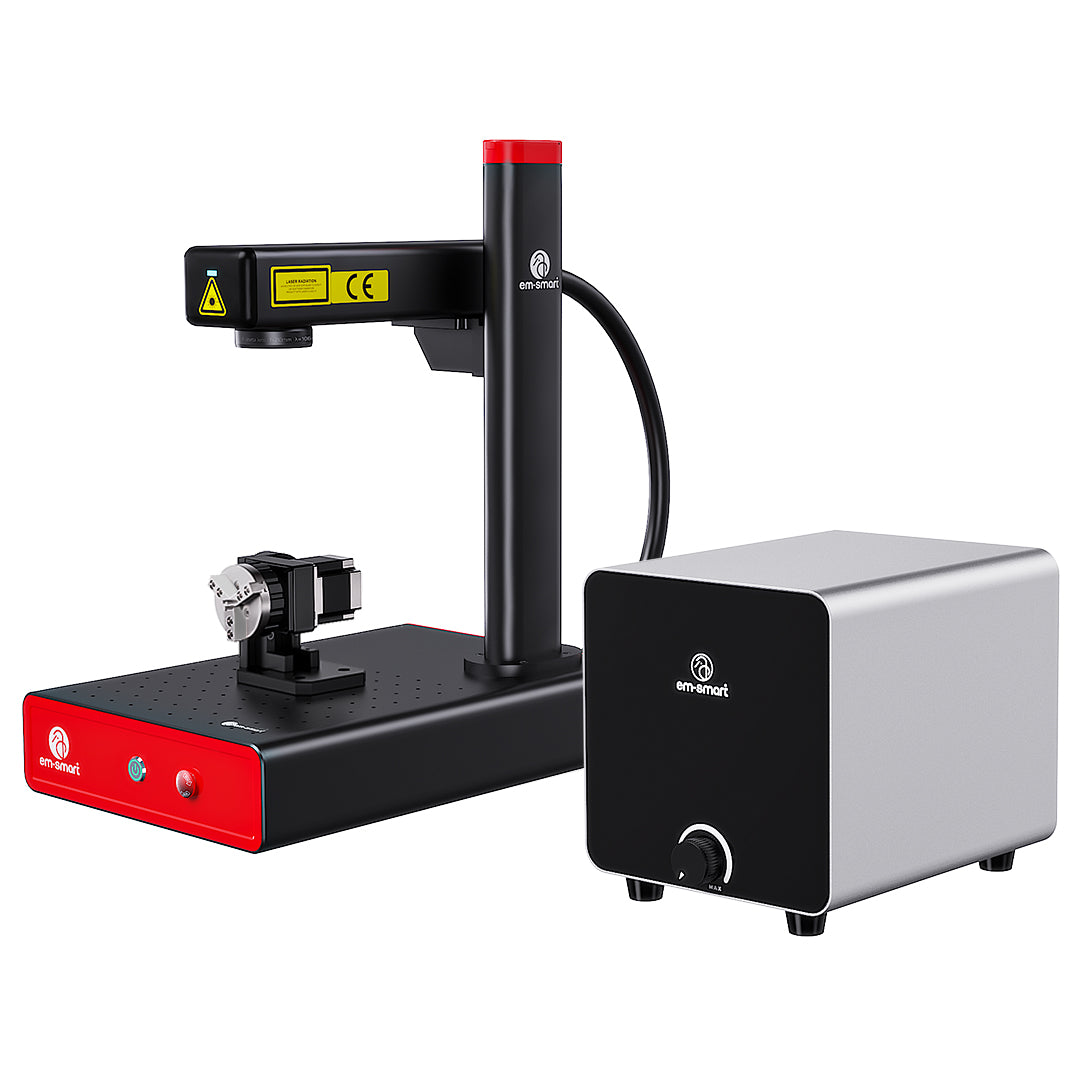

Rotary Function
✔(With accesorries)
✔(With accesorries)
✔(With accesorries)
Lens Replacement
✔
✔
✔
Thermal Protection
✔
✔
✔
Emergency Stop
✔
✔
✔
Applicable Materials
Metal, Plastic, Leather, Slate, Stone, Rubber, Coated Wood, etc.
Software Compatibility
Marking Software
EZCAD/LIGHTBURN
File Formats
text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code,
qr code, serial number, date code, time code, TCP/IP communication, serial communication, file,
sql database, etc.
Software Languages
Chinese (Tradition & Simplified), English, Japanese, Korean, Spanish,
Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish…Up to 24 Languages
Operating System
Windows & MAC
Certification
CE, FDA, RoHS, SGS, ISO9001
FAQ
What Is the Difference Between MOPA and Normal Fiber Laser?
What Is the Difference Between MOPA and Normal Fiber Laser?
MOPA lasers have adjustable pulse width and frequency, allowing for precise marking, deep engraving, and vibrant color effects. When MOPA lasers hit metal, they create an oxidized layer of varying thickness, producing different colors. Normal fiber lasers have a fixed pulse width, limiting color and depth control. For a detailed comparison, click here.
What materials can I cut or engrave with EM-Smart MOPA?
What materials can I cut or engrave with EM-Smart MOPA?
The EM-Smart MOPA laser engraver is versatile and works with a wide range of materials, including stainless steel, titanium, high-carbon steel, aluminum, acrylic, plastic, and wood. It excels in color engraving on metals, achieving vibrant and permanent colors, and can also perform precise deep engravings and fine markings.
What type of maintenance is required for the EM-Smart MOPA?
What type of maintenance is required for the EM-Smart MOPA?
The EM-Smart MOPA requires minimal maintenance, mainly focusing on regular lens cleaning. With a lifespan of up to 100,000 hours, this robust laser system is designed for long-term, consistent performance with minimal upkeep.
What countries do you ship to?
What countries do you ship to?
We provide free and fast shipping service by air freight to all countries over the world.
How long will it take to receive my order?
How long will it take to receive my order?
Delivery time depends on your chosen shipping method and various factors like holidays, shipping schedules, and your location. Estimated delivery time is typically 5-14 business days.
How do I return a product?
How do I return a product?
Items must be returned within 30 days after receiving your order. Items must be returned in the same condition in which they were received, be unworn/unused, have any tags still attached, and include all the original packaging.
How long will it take to receive my refund?
How long will it take to receive my refund?
Refunds are processed within 7 days from when we receive the item(s).
