EM-Smart Nova(R) - 25W Portable Laser Engravers for Metal With/Without Rotary

$2,599.00 $2,999.00
MODEL

Fast Free Shipping

Fast Delivery, Free Shipping from US Warehouse,No Customs Duty

2-Years Warranty & Lifetime Support

Lifetime Support

CE, FDA, RoHS, SGS, ISO9001 Certified

Add your content here

Note: the non-rotary model cannot be upgraded to a rotary model by just adding a rotary axis as the rotary function involves both external rotary axis and internal control board.

Feature 1:

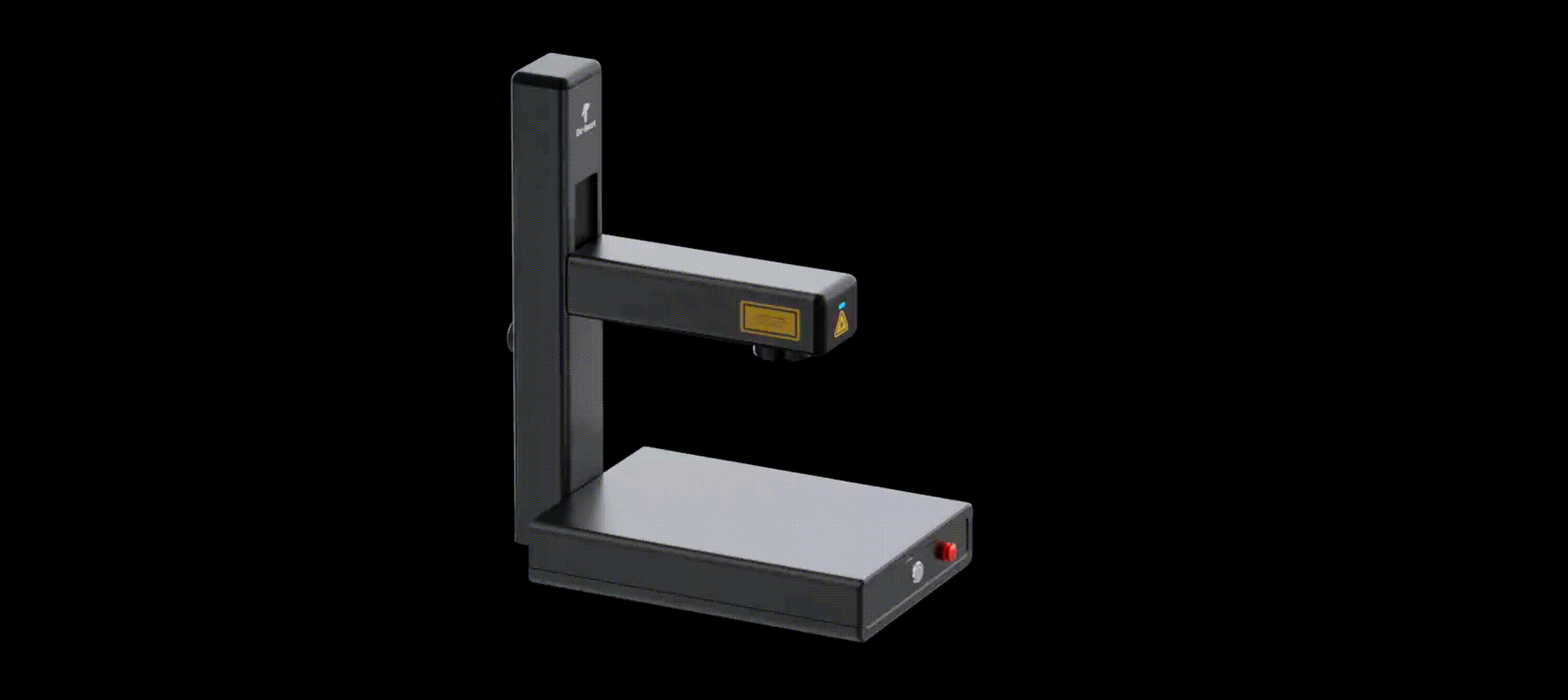

PORTABLE & FOLDABLE

The product can be rotated 90°, this foldable design and the 8.5kg make them a perfect choice for those who usually travel from one place to another.

Feature 2:

HIGHER SPEED 10000MM/S

With 20w MAX industrial laser source, EM-Smart is 5+ times faster than its competitors, allowing you to complete tasks that previously took minutes in just seconds. Bring your masterpieces to life in a blink of an eye.

Feature 3:

Repeat Accuracy: ±0.002mm

EM-Smart laser engraver provides high accuracy engraving with its industrial-grade laser source, professionally customized galvo and F-Theta lens, allows for a leap in engraving accuracy.

Feature 4:

Various Marking Materials

High-quality laser engraving machine can mark on almost all the materials, such as metal, plastic, leather, coated wood, etc.

  • Titanium Engraving

  • Laser Printed Pictures

  • Deep Carved Brass

  • Customized Heart Necklace

  • PCB Circuit Board

  • Detailed Engraving

Feature 5:

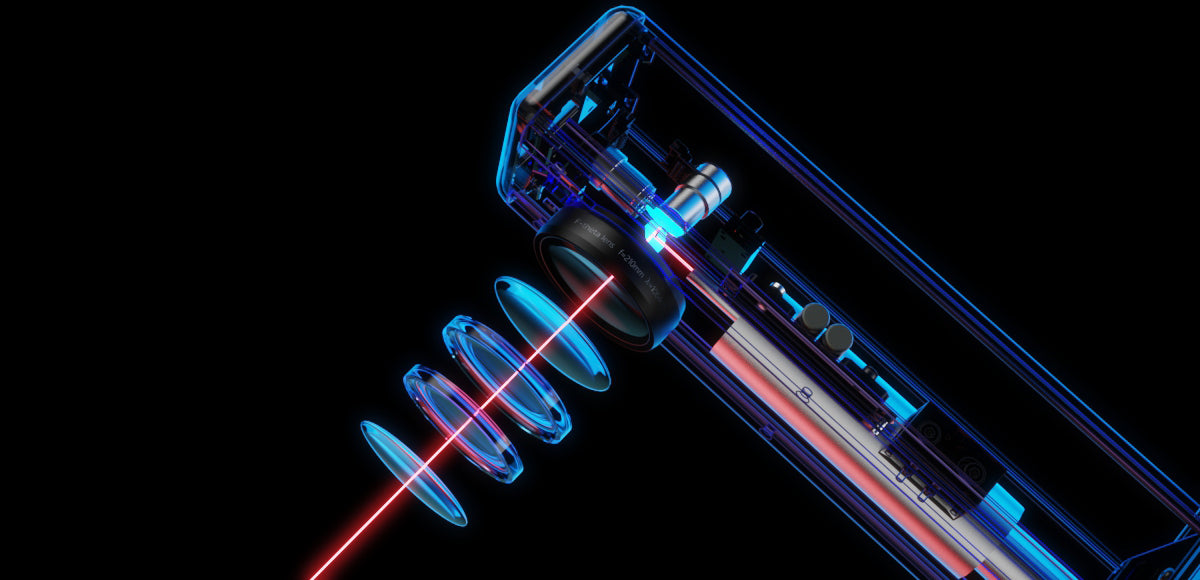

Galvo Scanning System

EM-Smart laser engraver uses glass fibers, population inversion and an amplifier module to create a stronger, faster-moving laser output. Industrial grade customized galvo scanning system and F-Theta lens make it achieve high accuracy engraving and HD 8K resolution.

Various Security

Feature 6

  • Emergency Stop

    The EM-Smart Basic has a built-in emergency stop button for a quick shutdown in case of emergency.

  • Overheat Protection

    Laser module features integrated overheat safeguards to prevent fire and extend lifespan.

  • Tilt Sensing

    The device will automatic shutdown if tilting is detected to ensure user and workspace safety.

  • Exhaust Fan

    The built-in Integrated exhaust fan effectively removes engraving smoke for safe, optimal performance.

  • Protective Solutions

    The fully enclosed safety guard and specialized eyewear shield users from 355nm/450nm/1064nm light sources to ensure safe operation.

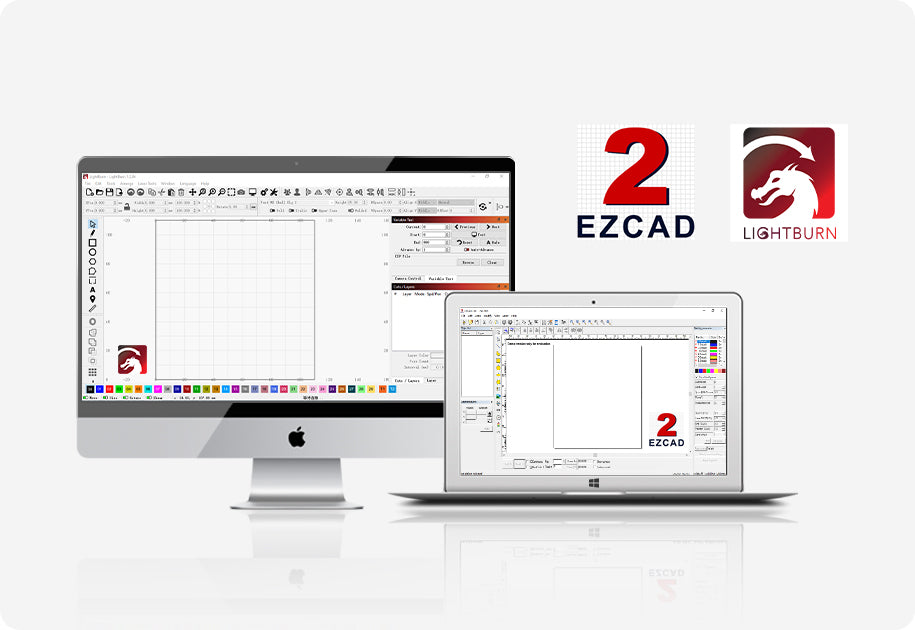

Feature 6: Software Compatibility

EZCAD & LightBurn

All EM-Smart lasers come with customized BJJCZ laser marking board, they are compatible with both Ezcad & LightBurn to spark every ideas, and you can use your EM-Smart on Windows, MAC, Linux.

Feature 7:

Rotary Working

EM-Smart in Details

Why Choose Us?

  • Fast Free Shipping

    From US wareho

  • 2-Years Warranty

    lifetime support

  • Certificates and Patents

    50+ patents and various certificates

  • 26 Years+

    experience in laser industry

What Youtubers Say

Specs

Model  EM-Smart One (One R) EM-Smart Nova (Nova R)
Laser Source  MAX
Laser Type Fiber laser
Output Power (W)  20W 25W
Marking Speed (mm/s)  0-10000
Standard Marking Field (mm)  110*110 (70*70/150*150)
Maximum Marking Height (mm)  90
Laser Wavelength (nm)  1064
Beam Quality (m²)  ≤1.4 ≤1.6
Repeat Accuracy (mm) ±0.002
Minimum Character (mm) 0.01
Minimum Line Distance (mm) 0.01
Repeat Pause Frequency Range (KHz)  20-60
Operation Temperature (℃)  10-42
Storage Temperature  -10 to +60
Cooling Method  Air Cooling
Lifespan (Hours)  100,000
Net Weight (Kg)  8.5
Dimension (L*W*H*T mm)  370*258*505*65
Package Size (L*W*H mm) 760*540*170
Supply Voltage (V) DC24V
Power Consumption (W)  ≤160 ≤180
PC Connection USB Cable
Certificate CE, FDA, RoHS, SGS, ISO9001
Color Available Black/Grey
Deep Engraving Y
Cutting Function N Y
Rotary Function N (Y)
Lens Replacement Y
Thermal Protection Y
Emergency Stop Y
Design Foldable Design
Marking Software EZCAD/LightBurn (License Required)
Marking Format text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code, qr code, serial number, date code, time code, TCP/IP communication, serial communication, file, sql database, etc.
Language Chinese (Tradition & Simplified), English, Japanese, Korean, Spanish, Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish…Up to 24 Languages
Operating System Windows & MAC & Linux
Applicable Material Metal, Plastic, Leather, Slate, Stone, Rubber, Coated Wood, etc.
