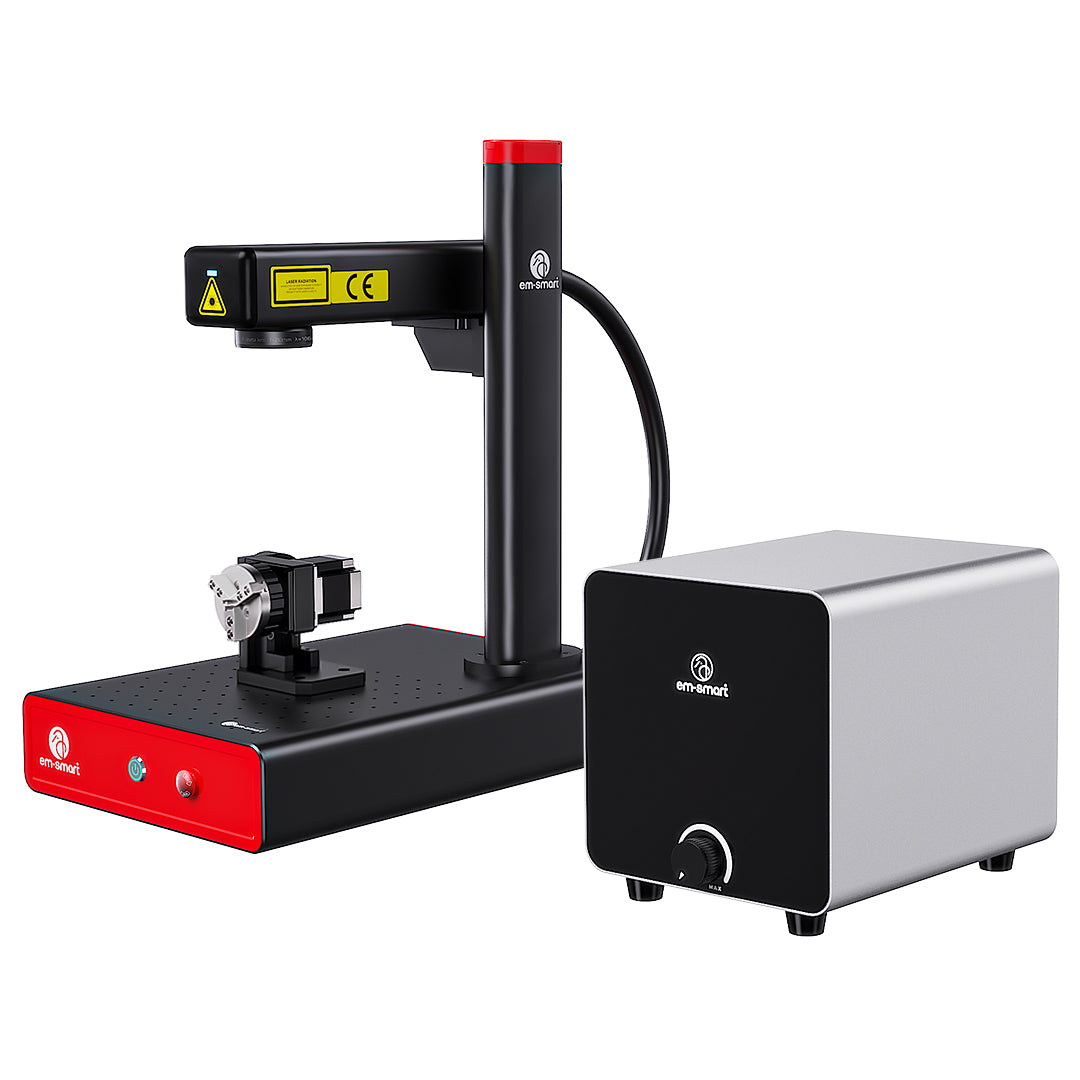

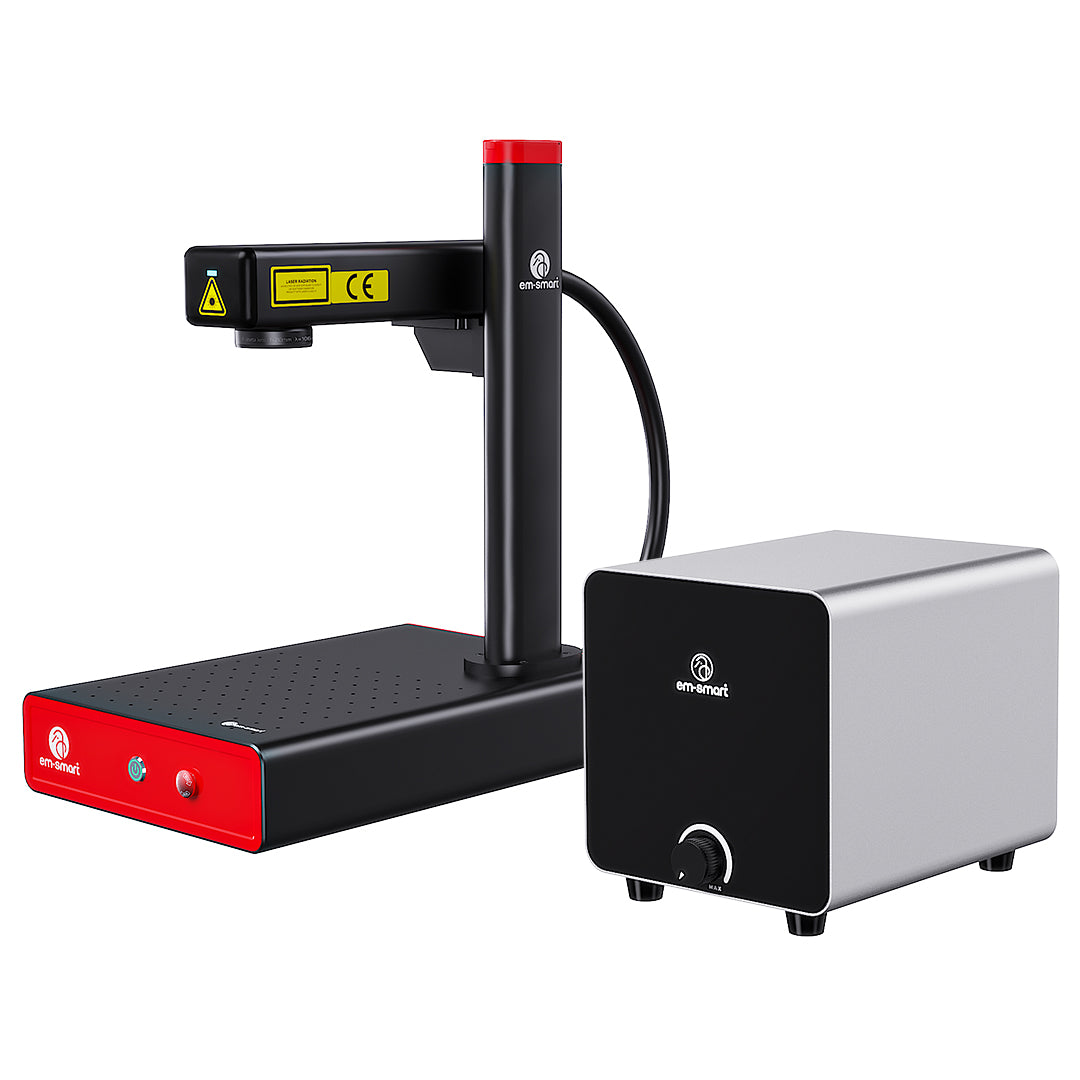

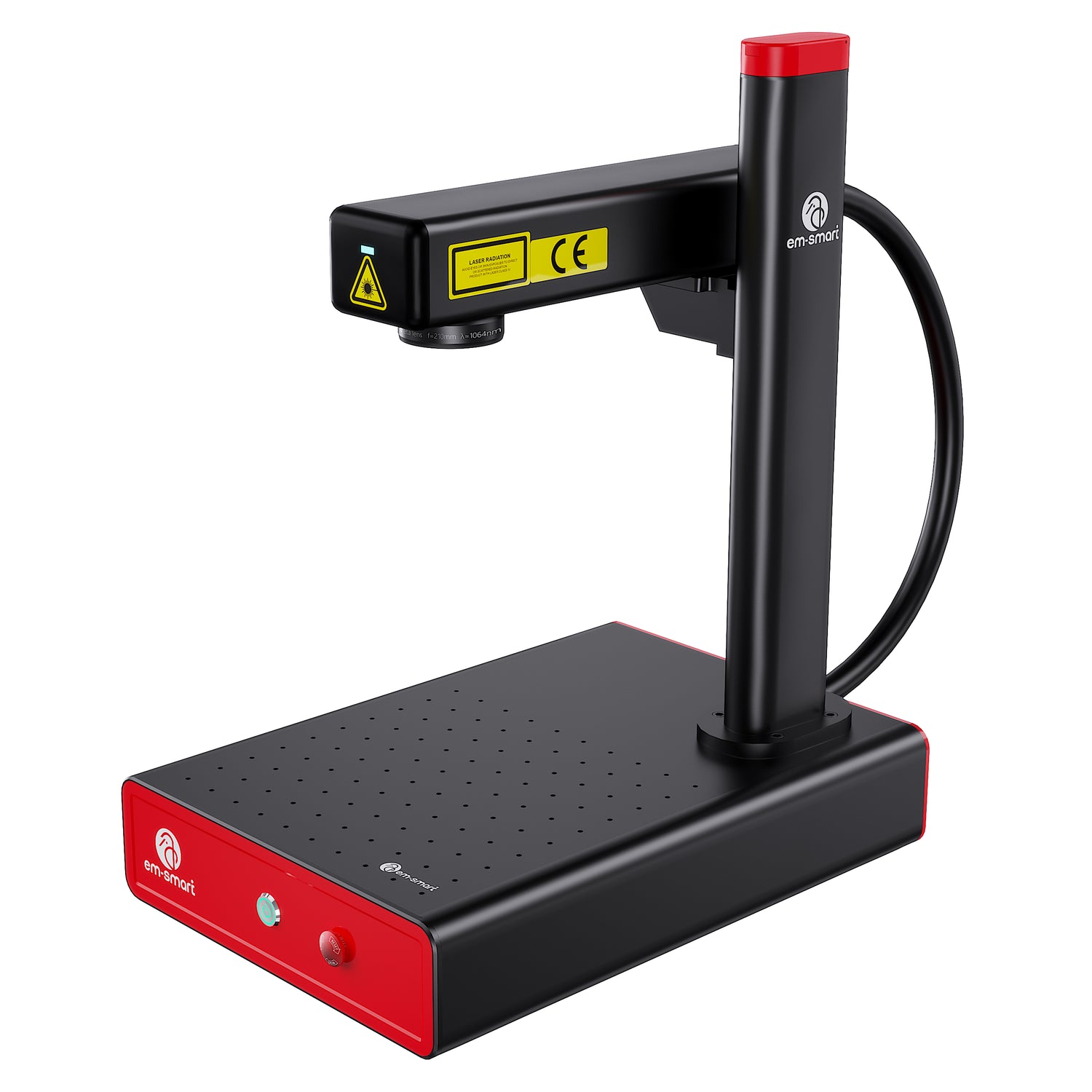

EM-Smart Mopa 20/30/60R - JPT Fiber Laser Engraver

$5,099.00 $5,199.00
PACKAGE
POWER
Frequently Bought Together More Accessories More

2-Years Warranty

Lifetime Support

Fast Free Shipping

Fast Delivery, Free Shipping from US Warehouse,No Customs Duty

CE, FDA, RoHS, SGS, ISO9001 Certified

Certified to Meet Industry and International Stan

Safe & Secure Checkout

Currenty, we accept most global payment methods including PayPal, Credit Cards (Visa, Master, etc.), bank transfer and installment. These options will appear when you submit your order, and you can choose any of them.

Note: The non-rotary model cannot support rotary function by simply adding an axis—it requires both hardware and control board upgrades.

20W/30W/60W - JPT MOPA Fiber Laser

JPT Laser Source & Color Marking

Feature 1:

JPT LASER SOURCE

The MOPA laser source is a great way to expand your marking capabilities and improve the quality of your marking results on certain plastics and metals. With a conventional fiber laser marker, markings on certain metals and plastics (especially if they are dark in color) can be less homogeneous and rich in contrast.

Feature 2:

COLORFUL MARKING

Professional colors marking on stainless steel and anodized aluminum, achieving permanent, intricate, and standardized color engraving.

Feature 3:

DEEP ENGRAVING AND CUTTING

Unlocking new possibilities with an industrial-grade laser source, boasting high power capabilities that allow for deep engraving and precision cutting.

Feature 4:

HIGHER SPEED 10000MM/S

With 30w/50w MAX industrial laser source, EM-Smart is 5+ times faster than its competitors, allowing you to complete tasks that previously took minutes in just seconds. Bring your masterpieces to life in a blink of an eye.

Feature 5:

REPEAT ACCURACY: ±0.002MM

EM-Smart laser engraver provides high accuracy engraving with its industrial-grade laser source, professionally customized galvo and F-Theta lens, allows for a leap in engraving accuracy.

Feature 6:

Unlimited Marking Height

150mm(MOPA 20W/30W=150mm,MOPA 60W=100mm) default marking height meets your demand for engraving most common items, while the limitless marking height achieved through rotation provides you with more space and possibilities.

Feature 7:

Various Marking Materials

  • Stainless Steel Color Engraving

  • Colored Lighters

  • Stone Slabs Deep Carving

  • Stainless Steel Color Engraving

  • Ceramic Coaster

  • Metal Plate Precious Engraving

Feature 8:

Galvo Scanning System

EM-Smart laser engraver uses glass fibers, population inversion and an amplifier module to create a stronger, faster-moving laser output. Industrial grade customized galvo scanning system and F-Theta lens make it achieve high accuracy engraving and HD 8K resolution.

  • Emergency Stop

    The EM-Smart Basic has a built-in emergency stop button for a quick shutdown in case of emergency.

  • Overheat Protection

    Laser module features integrated overheat safeguards to prevent fire and extend lifespan.

  • Exhaust Fan

    The built-in Integrated exhaust fan effectively removes engraving smoke for safe, optimal performance.

  • Protective Solutions

    The fully enclosed safety guard and specialized eyewear shield users from 355nm/450nm/1064nm light sources to ensure safe operation.

Feature 9:

Various Security

Feature 10:

EZCAD & LightBurn

All EM-Smart lasers come with customized BJJCZ laser marking board, they are compatible with both Ezcad & LightBurn to spark every ideas, and you can use your EM-Smart on Windows, MAC, Linux.

Feature 11:

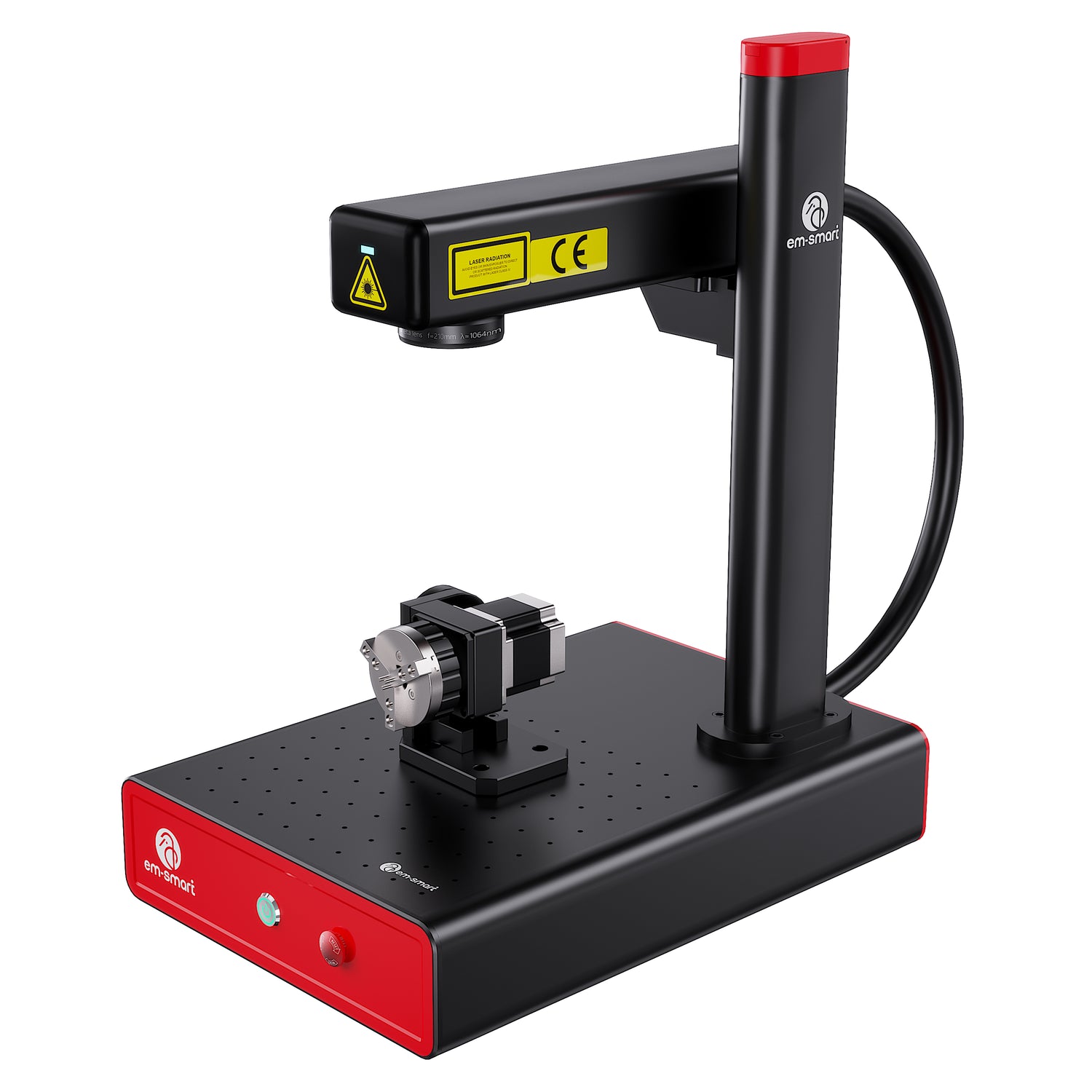

Rotary Working

Why Choose Us?

  • Free Shipping Free Duty

    for any order

  • 2-Years Warranty

    lifetime support

  • Certificates and Patents

    50+ patents and various certificates

  • 26 Years+

    experience in laser industry

What Youtubers Say

Specs

Model  EM-Smart MP20 (20R) EM-Smart MP30 (30R) EM-Smart MP60 (60R)
Laser Source  JPT
Laser Type Fiber laser
Output Power (W)  20W 30W 60W
Marking Speed (mm/s)  0-10000
Standard Marking Field (mm)  150*150(70*70/110*110/175*175)
Maximum Marking Height (mm)  150 (MOPA 20W/30W=150, MOPA 60W=100)
Laser Wavelength (nm)  1064
Beam Quality (m²)  ≤1.3 ≤1.3 ≤1.5
Repeat Accuracy (mm) Spectral width<15nm
Pause energy 0.8mJ		 Spectral width<15nm
Pause energy 1.5mJ
Minimum Character (mm) Pulse width 2-350ns
Line Space: 0.001mm		 Pulse width 2-500ns
Line Space: 0.001mm
Minimum Line Distance (mm)
Repeat Pause Frequency Range (KHz)  Frequency Range 1-4000kHz (1-3000)
Full Power Frequency Range 25-4000kHz (37-3000)
Operation Temperature (℃)  0-40
Storage Temperature  -10 to +60
Cooling Method  Air Cooling
Lifespan (Hours)  100,000
Net Weight (Kg)  14.5 18
Dimension (L*W*H*T mm)  437*307*545*88 475*325*545*90
Package Size (L*W*H mm) 760*540*170
Supply Voltage (V) DC24V
Power Consumption (W)  ≤120 ≤144 ≤300
PC Connection USB Cable
Certificate CE, FDA, RoHS, SGS, ISO9001
Color Available Black+Red
Deep Engraving Y
Cutting Function Y
Rotary Function N (Y)
Lens Replacement Y
Thermal Protection Y
Emergency Stop Y
Design Quick Set-Up + Color Marking + Unlimited Marking Height
Marking Software EZCAD/LightBurn (License Required)
Marking Format text, png, bmp, jpg, gif, tga, tif, svg, ai, cdr, dxf, dst, plt, bar code, qr code, serial number, date code, time code, TCP/IP communication, serial communication, file, sql database, etc.
Language Chinese (Tradition & Simplified), English, Japanese, Korean, Spanish, Portuguese, Russian, French, German, Italian, Thai, Vietnamese, Turkish…Up to 24 Languages
Operating System Windows & MAC & Linux
Applicable Material Metal, Plastic, Leather, Slate, Stone, Rubber, Coated Wood, etc. / Colorful Marking
